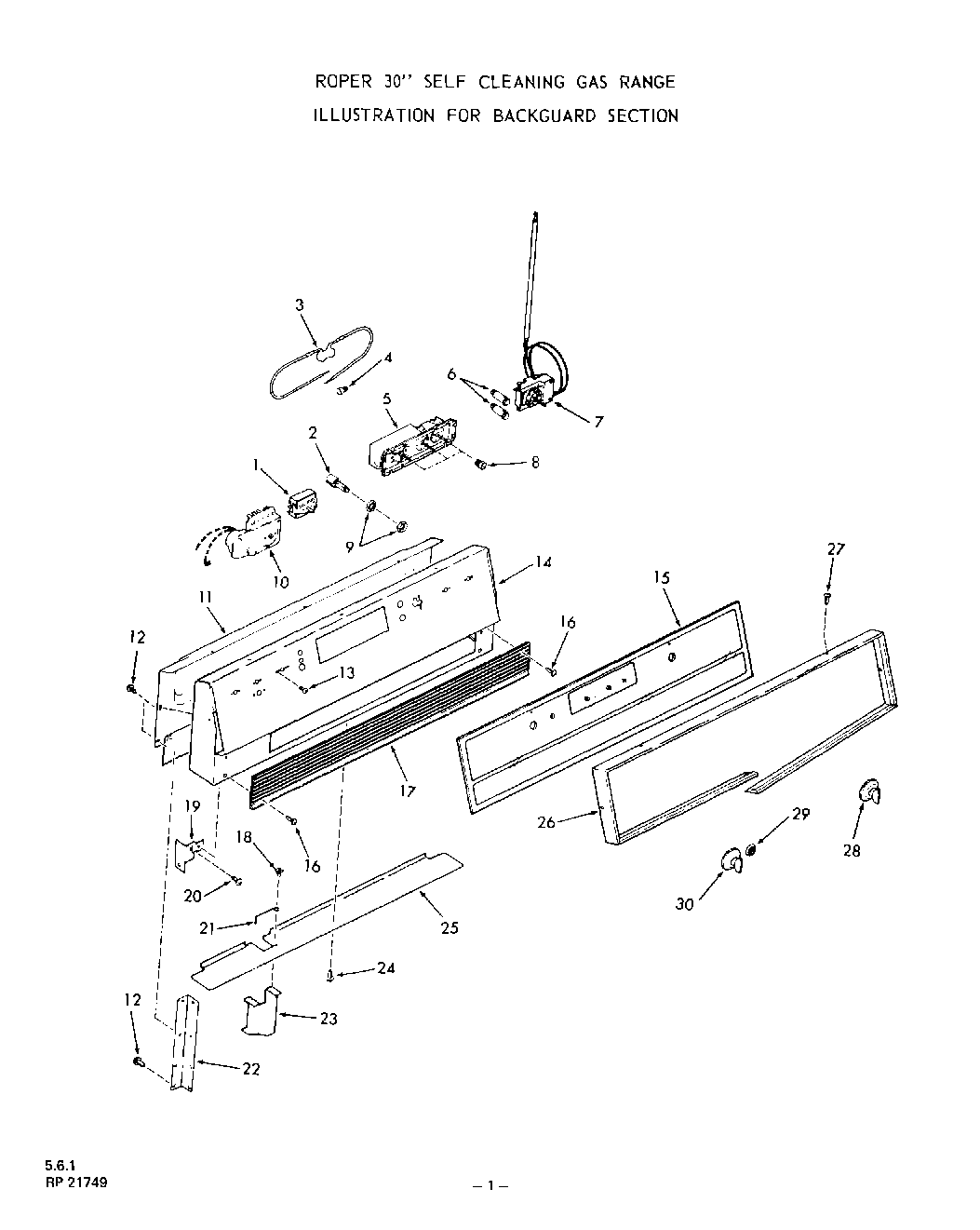

| 1 | Selector Switch |
| 2 | Push Switch (Lock-Unlock) |
| 3 | Wire Lead w/Resistor (10K,4-5 Watt) |
| 4 | Wire Connector (2 Required) |
| 5 | Clock w/1Hr Timer |
| 6 | Indicator Light |
| 7 | Oven Thermostat |
| 8 | Knob-Clock (Start & Stop Time) |
| 9 | Lock Nut |
| 10 | WPL 281698 |
| 11 | Wire Cover-Backguard |
| 13 | WPL 78565 |
| 14 | Crosstie |
| 15 | Glass-Backguard |
| 16 | Screw 6-32 x 3/8`` |
| 17 | Bottom Trim-Crosstie |
| 18 | Clip |
| 19 | Bracket-Backguard (Left) |
| 19 | Bracket-Backguard (Right) |
| 21 | 279264 Whirlpool Bearing and Seal Kit |
| 22 | Support-Backguard (Lt. or Rt.) |
| 23 | WPL 286889 |
| 24 | WP112432 Whirlpool Nut Assembly |
| 25 | Shield-Controls |
| 26 | Bezel-Backguard |
| 27 | Screw 6-32x3/8`` |
| 28 | Knob-Oven Thermostat |
| 29 | Nut-Trim 3/8-27 |
| 30 | Knob-Selector Switch |
