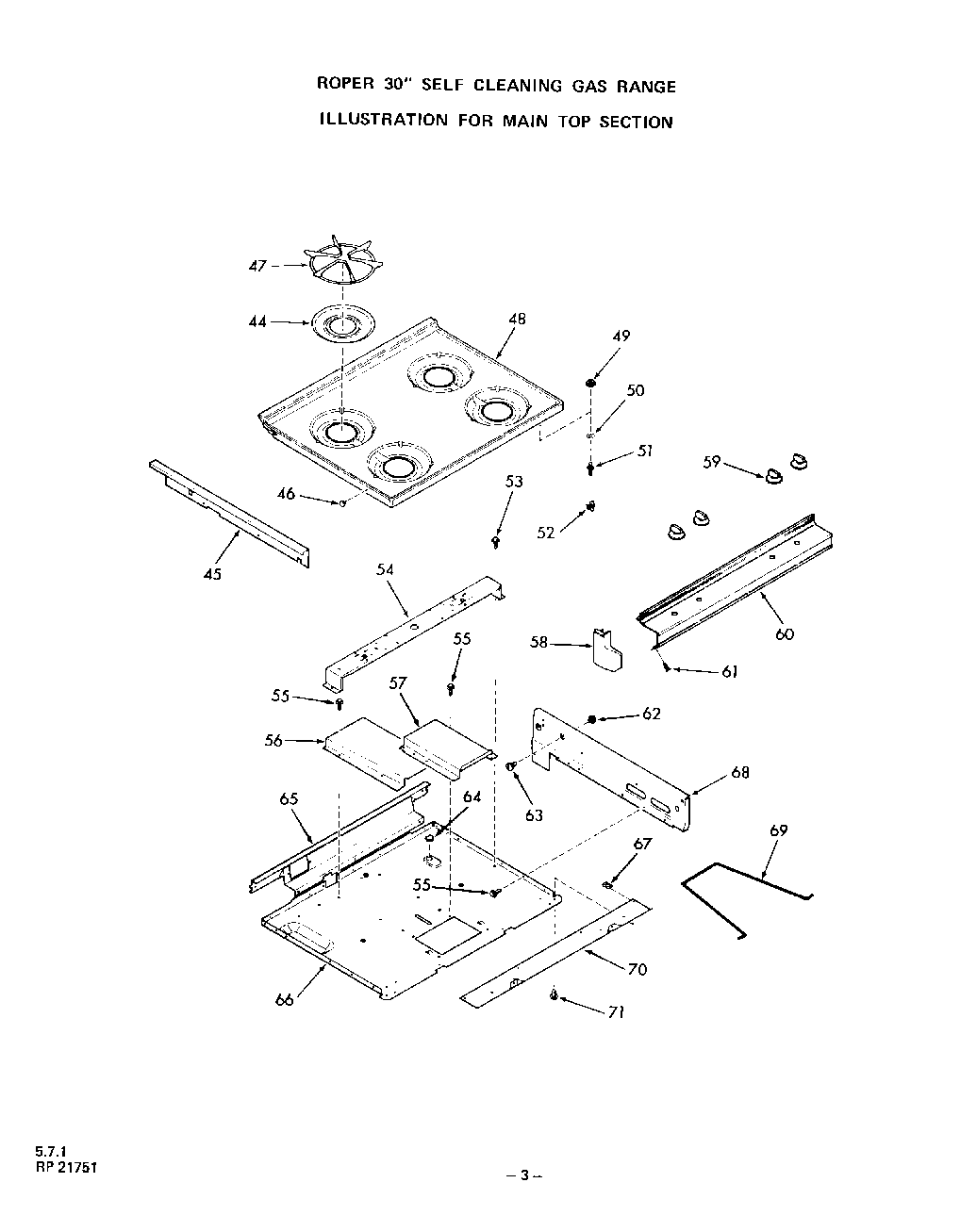

1352W06 04 – MAIN TOP

Products

Position	Product
44	Spill Bowl (4 Required)
45	Side Trim-Main Top (Left)
45	Side Trim-Main Top (Right)
46	Plug Bottom (2 Required)
47	Top Grate (4 Required)
48	Main Top (White)
48	Main Top (Almond)
48	Main Top (Golden Wheat)
49	Keps Nut 8-32
50	Washer
51	Strike-Main Top (2 Required)
52	Catch-Main Top Strike (2 Required)
54	Support-Top Burner
55	WP112432 Whirlpool Nut Assembly
56	Cover-Lock Rod
57	Cover-Lock
58	End Cap-Side Trim (Left)
58	WP238460 Whirlpool Hinge
59	Cover, Grill
60	Manifold Panel
61	Screw 8-32×1/2“
62	Keps Nut 10-24
63	Shoulder Bolt
64	Plug Button
65	Rear Support-Main Top
66	Burner Box Bottom
67	Speed Nut
68	Extention-Burner Box (Left)
68	Extention-Burner Box (Right)
69	Support Rod-Main Top
70	Clock, Complete (Includes 16, 17, 18 & 23)
71	Screw 8 – 32×3/8“
