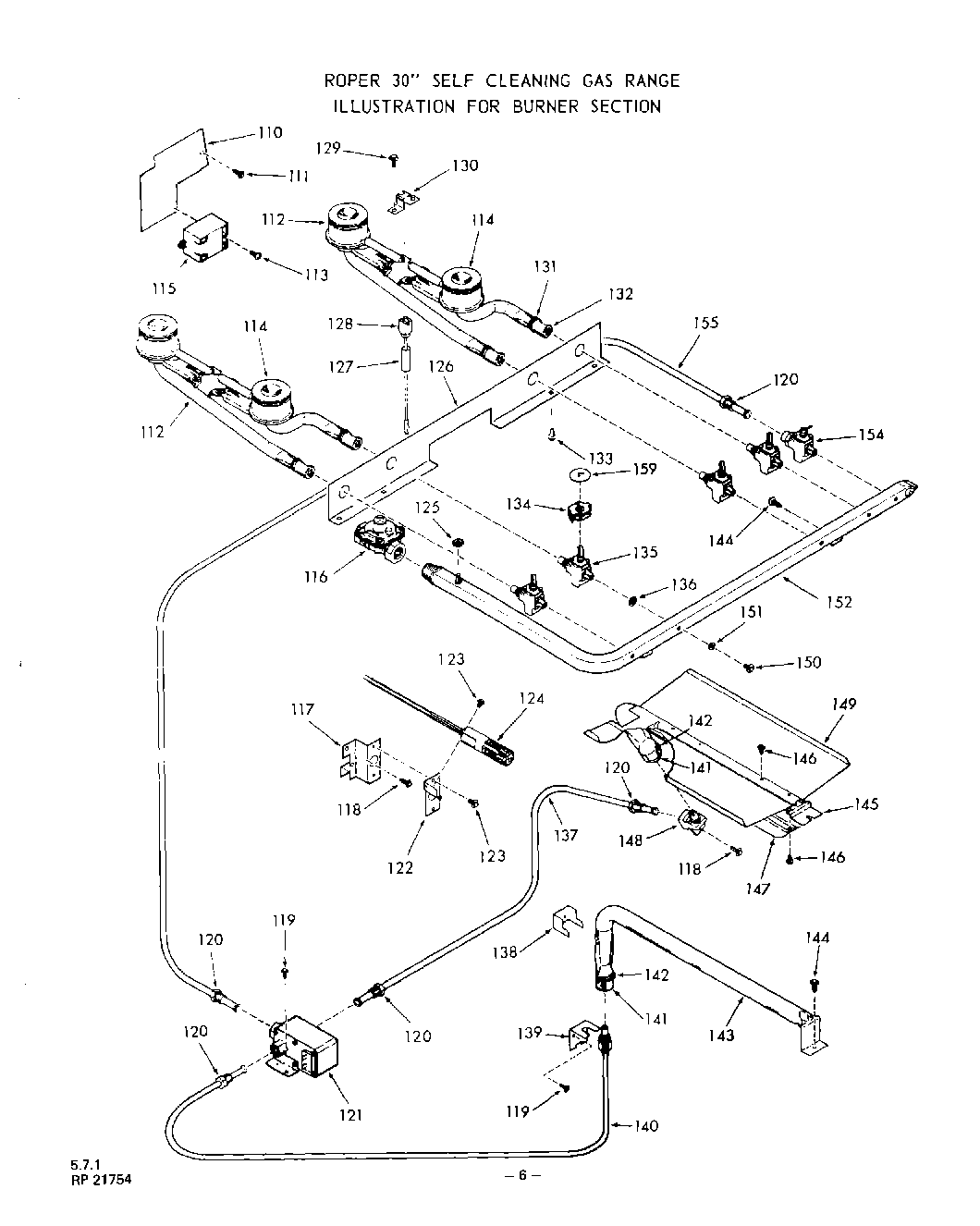

1352W06 06 – BURNER

Products

Position	Product
110	Bracket-Module
111	Screw 10-32×1/2“
112	Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33)
113	Screw 6-32×3/8“
114	Front Top Burner-Lt. or Rt.(Inc`s. 32 & 33)
115	Module-Spark Igniter
116	Pressure Regulator
117	Bracket-Igniter (Oven Burner)
120	Inverted Nut 3/8“
121	Control Valve
122	Bracket-Igniter
123	Screw 10 – 32 x 1/4“
124	Switch, Infinite (Use W/8“ Surface Unit (2))
125	Keps Nut 10-24
126	Timer, Automatic (Includes Illus. 9, 10, 11 & 12)
127	Transmotor (Alternate)
128	Left
128	Panel, Side L.H. (Toast)
129	WPL 316365
130	panel, side l.h. (almond panel, side r.h.)
131	Adjustment Screw-Air Shutter
132	Air Shutter
133	Screw 10-32 x 1/2“
134	Switch-Gas Valve (4 Req)
135	Gas Valve (4 Req)
136	Silicone Rubber Gasket (1Ea For Keys 135,154)
137	Panel, Glass
138	Support-Oven Burner
139	Bracket-Orifice Fitting
140	Tubing 3/8“ w/Orifice
141	Air Shutter
142	Adjustment Screw -Air Shutter
143	Oven Burner (Inc`s 24 & 25)
144	WP112432 Whirlpool Nut Assembly
145	WPL 318758
146	Screw 8 – 32×3/8“
147	WPL 302904
148	Broiler Orifice Fitting
149	WPL 300263
150	Mounting Screw (Inc`s 86)
151	Gasket (For 81)
152	Splice Panel
154	WPL 312437
155	Tubing 3/8“-Shut Off Valve to Control Valve (All 13530A Models)
159	Shield – Gas Value (4 Req)
