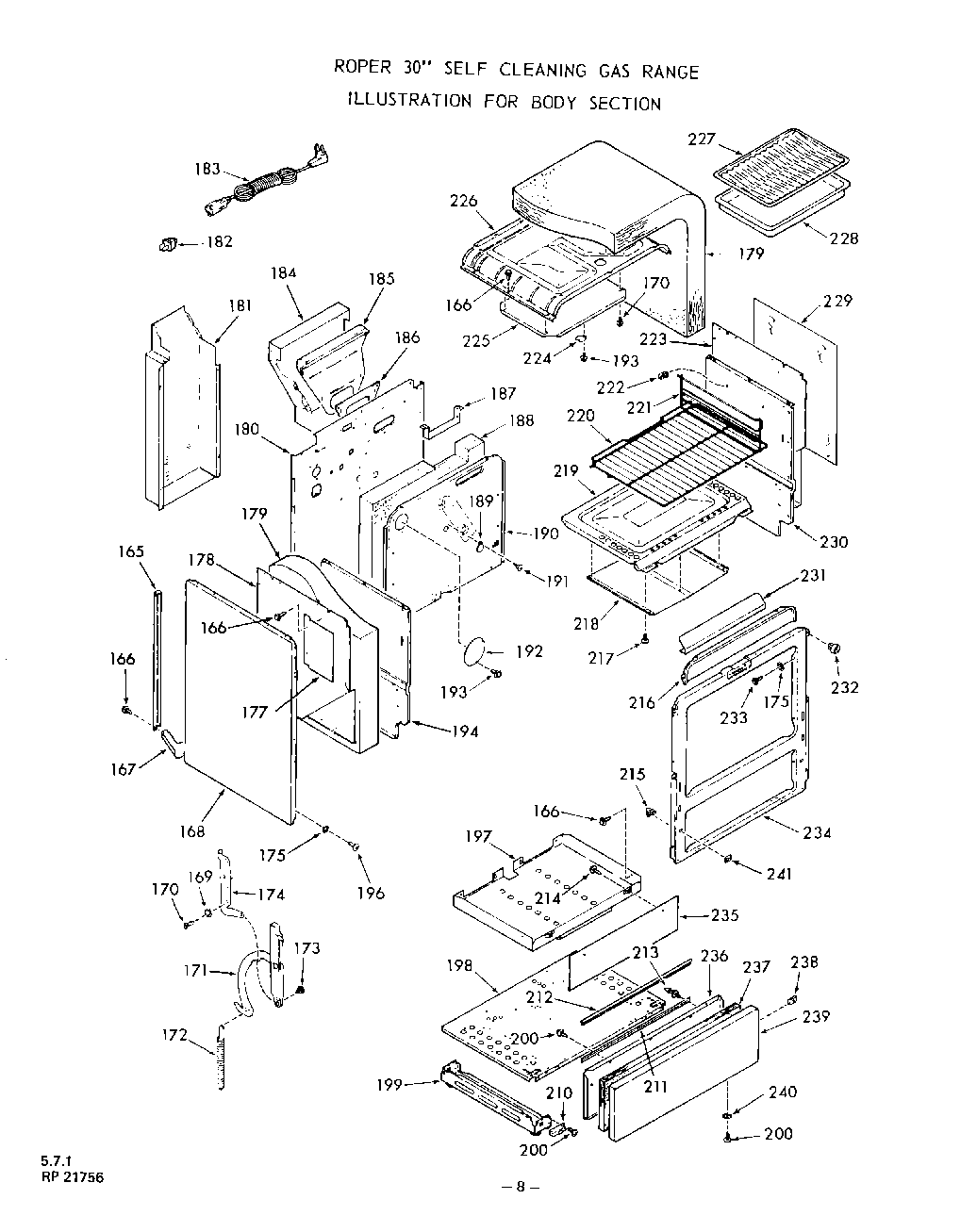

1352W06 07 – BODY

Products

PositionProduct
165Stiffener – Body Side (Lt. or Rt.)
166WP112432 Whirlpool Nut Assembly
167Lower Support – Body Side (Left)
167Lower Support – Body Side (Right)
168Body Side (Inc Key 229) Lt or Rt (Almond)
168Body Side (Inc Key 229) Lt or Rt (White)
168Body Side (Inc Key 229) Lt or Rt (Golden Wheat)
169Lockwasher
170Screw 10 – 32 x 7/16“
171Oven Door Hinge-Lt. or Rt. (Inc. Key 12)
172Spring-Oven Door (Lt or Rt)
173Shoulder rivet
174Oven Door Hinge Bracket (Inc Key 173) (Right)
174Hinge Bracket w/Roller (Inc. Key 175) (Left)
175Washer
177Baffel-Side Panel (Lt or Rt)
178Upper Insulation Retainer-Lt
179Insulation-Oven Top & Sides (1 Piece)
180Main Back
181Wire Cover
182Disconnect
183Range Service Cord
184Cover-Flue Deflector
185Flue Deflector
186Gasket-Flue Deflector
187WPL 282156
188Insulation-Oven Back
189Cover Plate, Rotisserie
190Oven Back
191Shoulder Screw 10-32×1/2“
192Cover Plate
194Oven Side-Left
196Screw 8ABx3/4“
197Bottom-Over Burner
198Main Bottom
199Base w/Levelers (Lt. or Rt.)
200Screw 10-32 x 1/2“
210W10900107 Whirlpool Oven Surface Element Switch
211Retainer – Seal
212Seal
213WPL 313671
215Catch-Strike
216WPL 282118
217WPL 97220
218WPL 28212
219WPL 283457
220WPL 305361
221WPL 306150
221WPL 306149
222Thermostat Bulb Retainer (2 Required)
223WPL 310514
224Cover Plate-Thermostat Bulb
225WPL 285860
226Oven Top
227WPL 282273
228WPL 282278
229WPL 239603
230WPL 294195
231WPL 281574
232WPL 100576
233WPL 316365
234WPL 312073
235WPL 304125
2364396923 Whirlpool Broil Pan Set Gray Porcelain
237WPL 282952
238Speed Nut 10 – 32
239WPL 211518
239WPL 311514
239Harness, Control
239WPL ARI8108A32
240WPL 21067
241Washer
