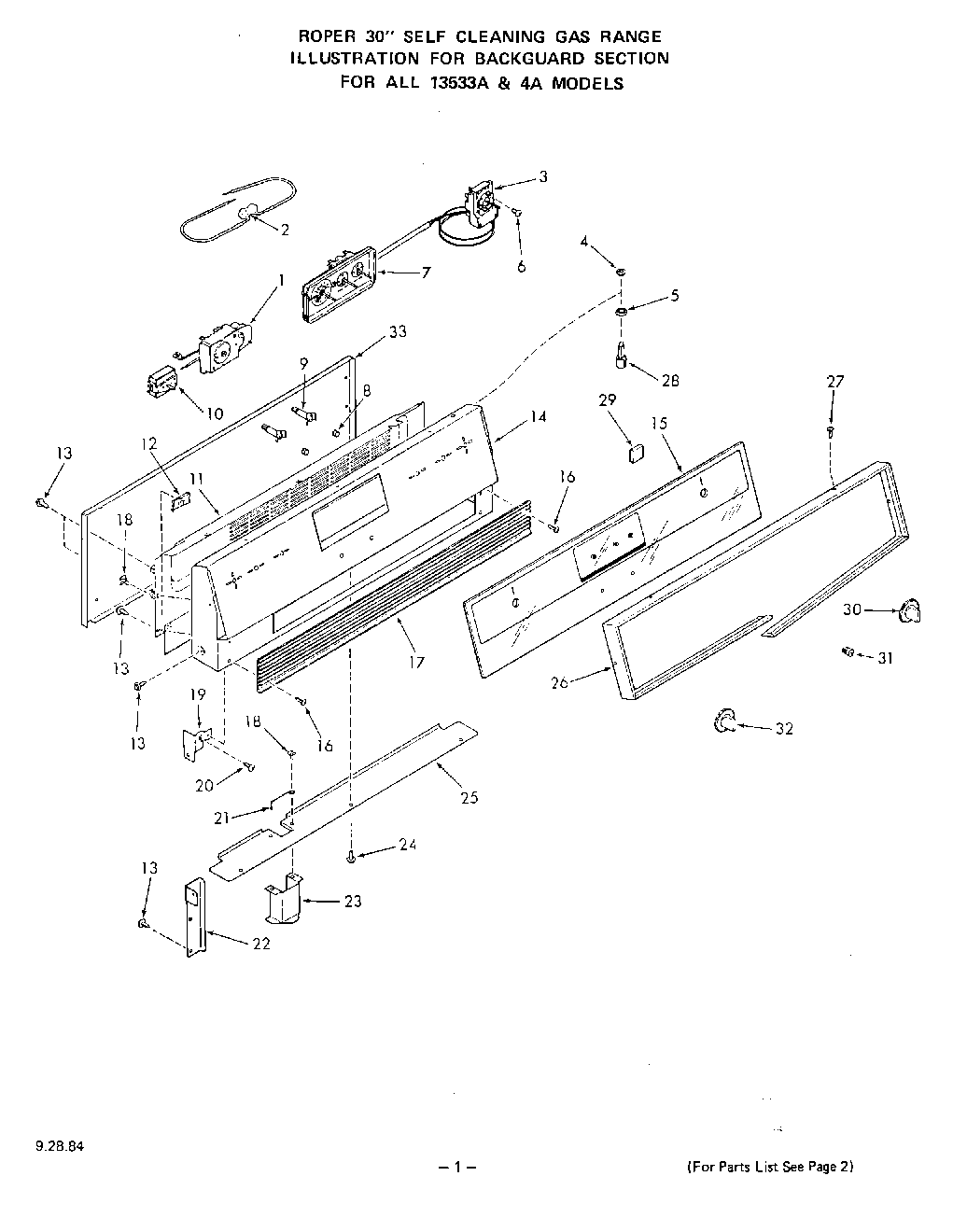

1353^3A 02 – BACKGUARD

Products

Position	Product
1	WPL 281698
2	Wire Lead w/Resistor (10K,4-5 Watt)
3	Oven Thermostat
4	Knurled Nut
5	Lock Nut
6	WPL 78565
7	WPL 322305
8	Lens-Indicator Light (2 Req)
9	Indicator Light (Oven & Clean)
10	Selector Switch-Lower
11	Wire Cover-Backguard (All 13534A Models)
11	Wire Cover-Backguard (All 13533A Models)
12	Speed Nut 10 – 32
14	Crosstie (Almond)
14	Crosstie (Golden Wheat)
14	Crosstie (White)
15	Backguard Glass
16	Screw 6-20×3/8“
17	Bottom Trim-Crosstie
18	Clip
19	Bracket-Backguard (Left)
19	Bracket-Backguard (Right)
21	Wire Retainer
22	Support-Backguard (Left)
22	Support-Backguard (Right)
23	WPL 286889
24	WP112432 Whirlpool Nut Assembly
25	Shield-Controls
26	Bezel-Backguard
27	Screw 6-20×3/8“
28	Push Switch (Lock-Unlock)
29	Space
30	Knob-Thermostat
31	Knob-Clock (Start & Stop Time)
32	Knob-Selector Switch
33	Auxiliary Wire Cover – All 13534A Models
