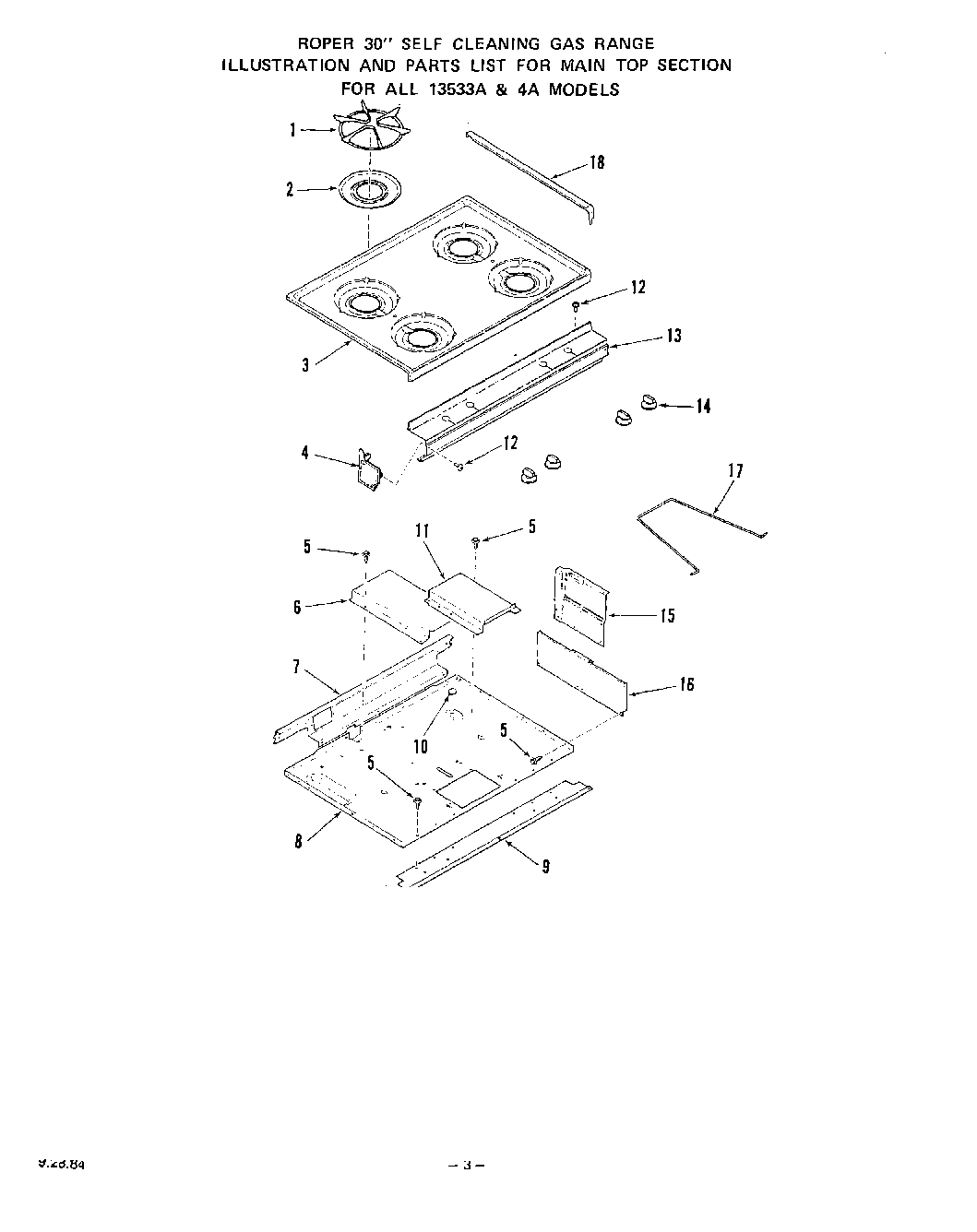

1353^3A 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	Spill Bowl (4 Required)
3	Golden Wheat
3	White
3	Almond
4	Right
4	Left
5	WP112432 Whirlpool Nut Assembly
6	Cover-Lock Rod
7	Rear Support-Main Top
8	Burner Box Bottom
9	Front Extension-Burner Box Bottom
10	Plug Button
11	Cover-Lock
12	Screw 6-20×3/8“
13	Manifold Panel
14	Knob-Gas Valve (4 Required)
15	Right
15	Left
16	Baffle-Burner Box Bottom (Rt. or Lt.)
17	Support Rod-Main Top
18	Trim-Main Top (Left)
18	Trim-Main Top (Right)
