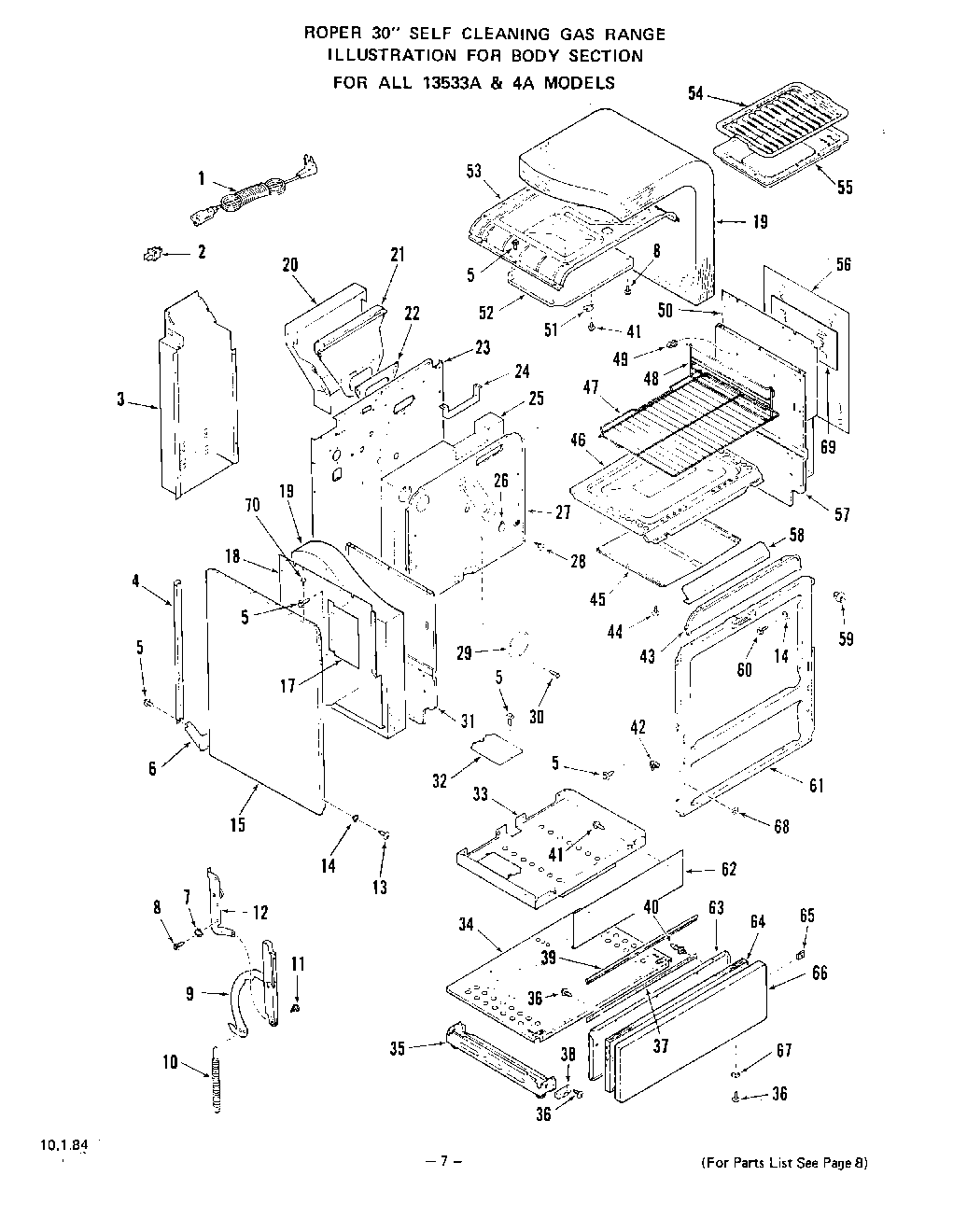

1353^3A 06 – BODY

Products

Position	Product
1	Range Service Cord
2	Disconnect
3	Wire Cover
4	Stiffener – Body Side (Lt. or Rt.)
5	WP112432 Whirlpool Nut Assembly
6	Lower Support – Body Side (Left)
6	Lower Support – Body Side (Right)
7	Lockwasher
8	Screw 10 – 32 x 7/16“
9	Oven Door Hinge-Lt. or Rt. (Inc. Key 12)
10	Bracket, Receptacle
11	Shoulder rivet
12	Left
12	Right
13	Screw 8ABx3/4“
14	Washer
15	Body Side w/Overlay-Lt. or Rt.(Inc.56&69) (Golden Wheat)
15	Body Side w/Overlay-Lt. or Rt.(Inc.56&69) (White)
15	Body Side w/Overlay-Lt. or Rt.(Inc.56&69) (Almond)
17	Baffel-Side Panel (Lt or Rt)
18	Upper Insulation Retainer-Lt.
19	Insulation-Oven Top & Sides (1 Piece)
20	Cover-Flue Deflector
21	Flue Deflector
22	Gasket-Flue Deflector
23	Main Back
24	WPL 282156
25	Insulation-Oven Back
26	Cover Plate, Rotisserie
27	Oven Back
28	Shoulder Screw 10-32×1/2“
29	Cover Plate
31	Oven Side-Left
32	Access Plate
33	Bottom-Oven Burner
34	Main Bottom
35	Base w/Levelers (Lt. or Rt.)
37	Retainer – Seal
38	W10900107 Whirlpool Oven Surface Element Switch
39	Seal
40	WPL 299263
41	WPL 321162
42	Catch-Strike
43	WPL 282118
44	WPL 97220
45	WPL 282127
46	WPL 283457
47	WPL 305361
48	WPL 306150
48	WPL 306149
49	Clip-Thermostat Bulb (2 Req)
50	WPL 322073
51	Cover Plate-Thermostat Bulb
52	WPL 285860
53	Oven Top
54	WPL 282273
55	WPL 282278
56	WPL 239603
57	WPL 294195
58	WPL 281574
59	WPL 100576
60	WPL 316365
61	WPL 321919
62	WPL 304125
63	4396923 Whirlpool Broil Pan Set Gray Porcelain
64	WPL 282952
65	Speed Nut 10 – 32
66	WPL 311514
66	WPL 311518
66	Harness, Control
67	WPL 21067
68	Washer
69	WPL 326070
70	WPL 301769
