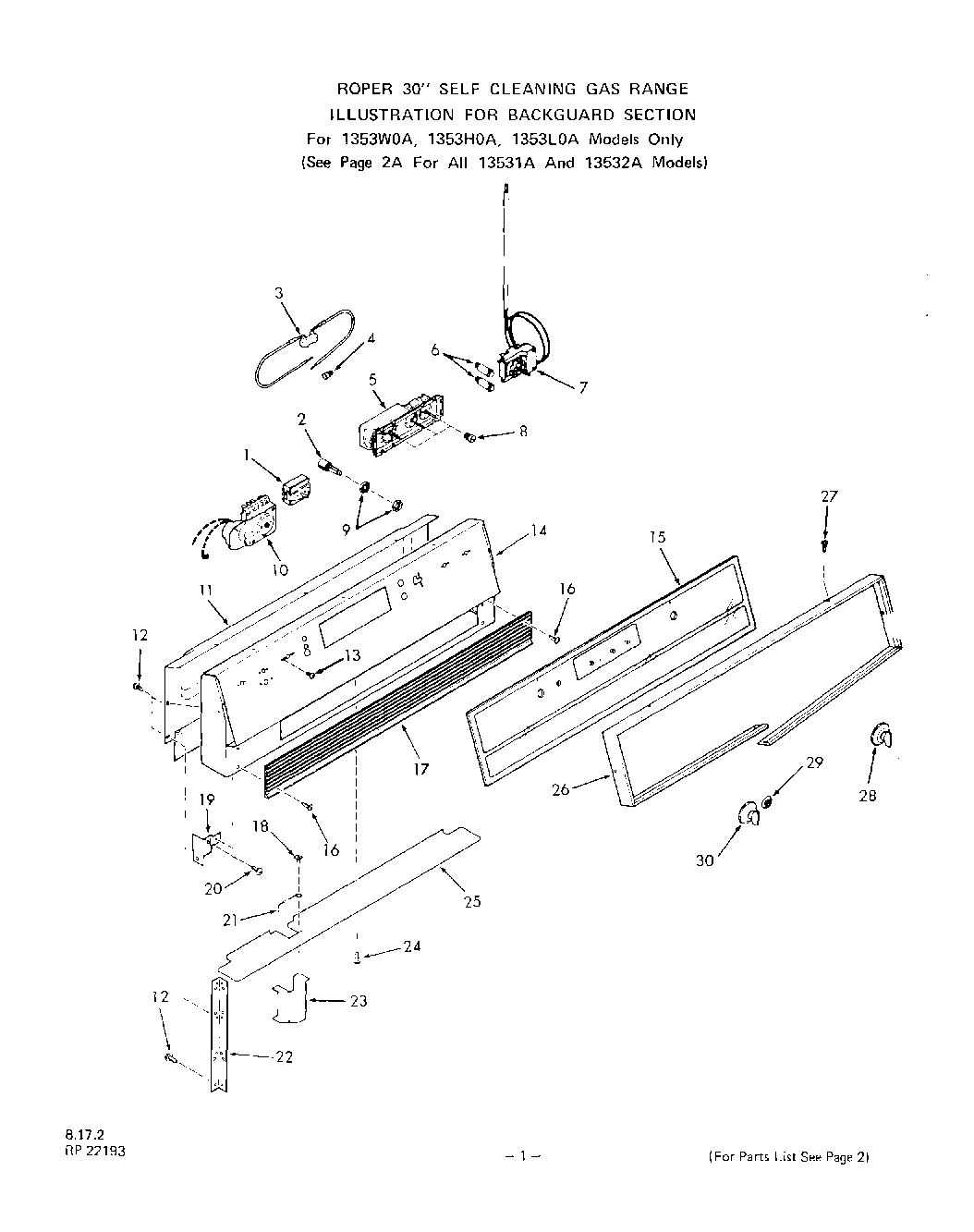

1353W2A 02 – SECTION

Products

PositionProduct
1Selector Switch-Lower
2Push Switch (Lock-Unlock)
3Wire Lead w/Resistor (10K,4-5 Watt)
4Wire Connector (2 Required)
5Clock w/1Hr Timer
6Indicator Light
7Oven Thermostat
8Knob-Clock (Start & Stop Time)
9Lock Nut
10WPL 281698
11Wire Cover-Backguard
13WPL 78565
14Crosstie (White)
14Crosstie (Golden Wheat)
14Crosstie (Almond)
15Glass-Backguard
16Screw 6-32 x 3/8“
17Bottom Trim-Crosstie
18Clip
19Bracket-Backguard (Left)
19Bracket-Backguard (Right)
21Wire Retainer
22Support-Backguard (Lt. or Rt.)
23WPL 286889
24WP112432 Whirlpool Nut Assembly
25Shield-Controls
26Bezel-Backguard
27Screw 6-32×3/8“
28Knob-Oven Thermostat
29Nut-Trim 3/8-27
30Knob-Selector Switch
