1353W2A 07 – OVEN DOOR

1353W2A 07 – OVEN DOOR

Written by

in

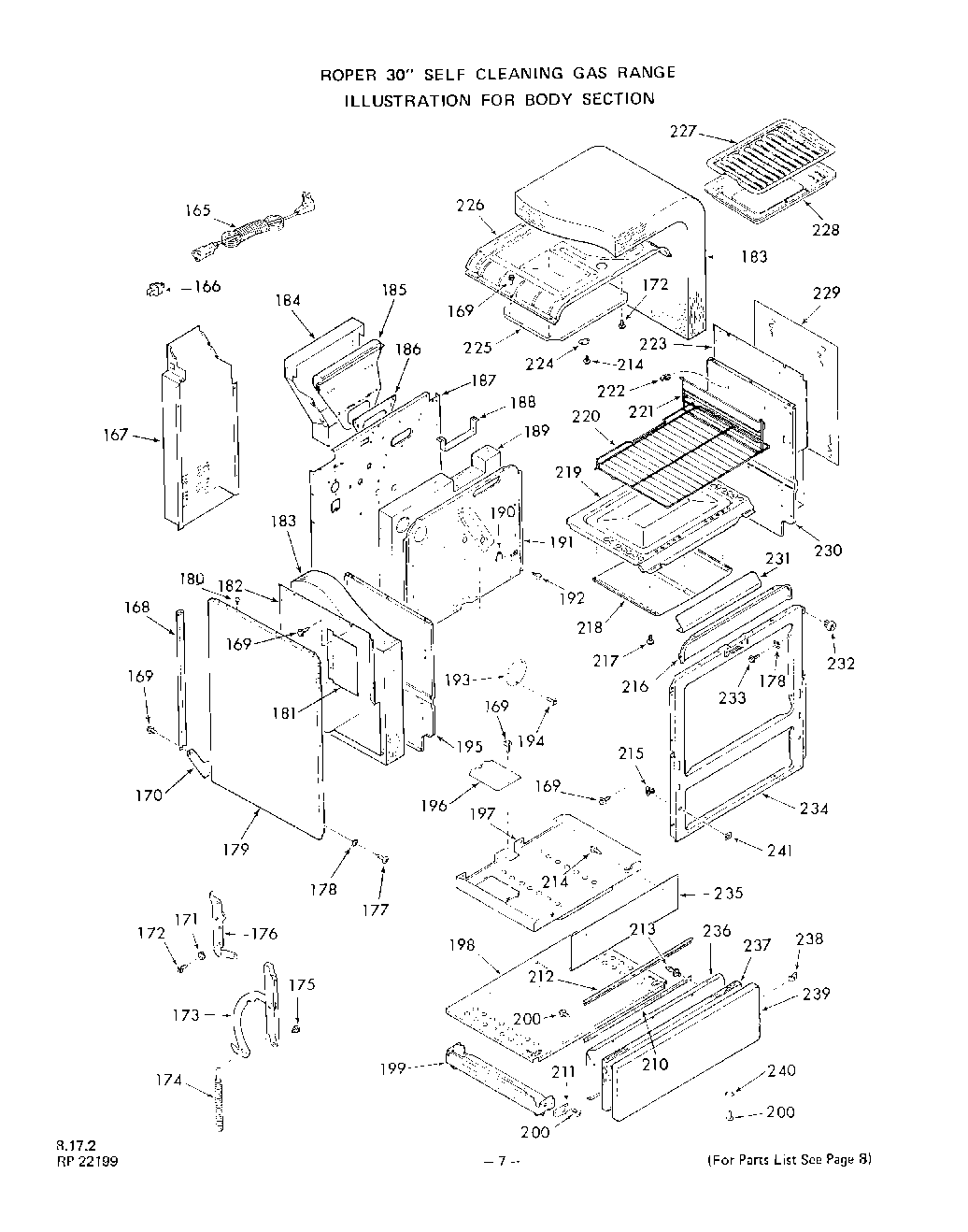

1353W2A 07 – OVEN DOOR

Products

PositionProduct
165Range Service Cord
166Disconnect
167Wire Cover
168Stiffener – Body Side (Lt. or Rt.)
169WP112432 Whirlpool Nut Assembly
170Lower Support – Body Side (Left)
170Lower Support – Body Side (Right)
171Lockwasher
172Screw 10 – 32 x 7/16“
173Oven Door Hinge-Lt. or Rt. (Inc. Key 12)
174Bracket, Receptacle
175Shoulder rivet
176Hinge Bracket w/Roller (Inc. Key 175) (Left)
176Hinge Bracket w/Roller (Inc. Key 175) (Right)
177Screw 8ABx3/4“
178Washer
179Body Side-Lt. or Rt. (Inc. Key 73) (Golden Wheat)
179Body Side-Lt. or Rt. (Inc. Key 73) (Almond)
179Body Side-Lt. or Rt. (Inc. Key 73) (White)
180WPL 301769
181Baffel-Side Panel (Lt or Rt)
182Upper Insulation Retainer-Lt.
183Insulation-Oven Top & Sides (1 Piece)
184Cover-Flue Deflector
185Flue Deflector
186Gasket-Flue Deflector
187Main Back
188WPL 282156
189Insulation-Oven Back
190Cover Plate, Rotisserie
191Oven Back
192Shoulder Screw 10-32×1/2“
193Cover Plate
195Oven Side-Left
196Access Plate
197Bottom-Oven Burner
198Main Bottom
199Base w/Levelers (Lt. or Rt.)
210Retainer – Seal
211W10900107 Whirlpool Oven Surface Element Switch
212Seal
213WPL 313671
214WPL 321162
215Catch-Strike
216WPL 282118
217WPL 97220
218WPL 282127
219WPL 283457
220WPL 305361
221WPL 306150
221WPL 306149
222Thermostat Bulb Retainer (2 Required)
223WPL 322073
224Cover Plate-Thermostat Bulb
225WPL 285860
226Oven Top
227WPL 282273
228WPL 282278
229WPL 239603
230WPL 294195
231WPL 281574
232WPL 100576
233WPL 316365
234WPL 321919
235WPL 304125
2364396923 Whirlpool Broil Pan Set Gray Porcelain
237WPL 282952
238Speed Nut 10 – 32
239WPL 311514
239Harness, Control
239WPL 311518
240WPL 21067
241Washer
