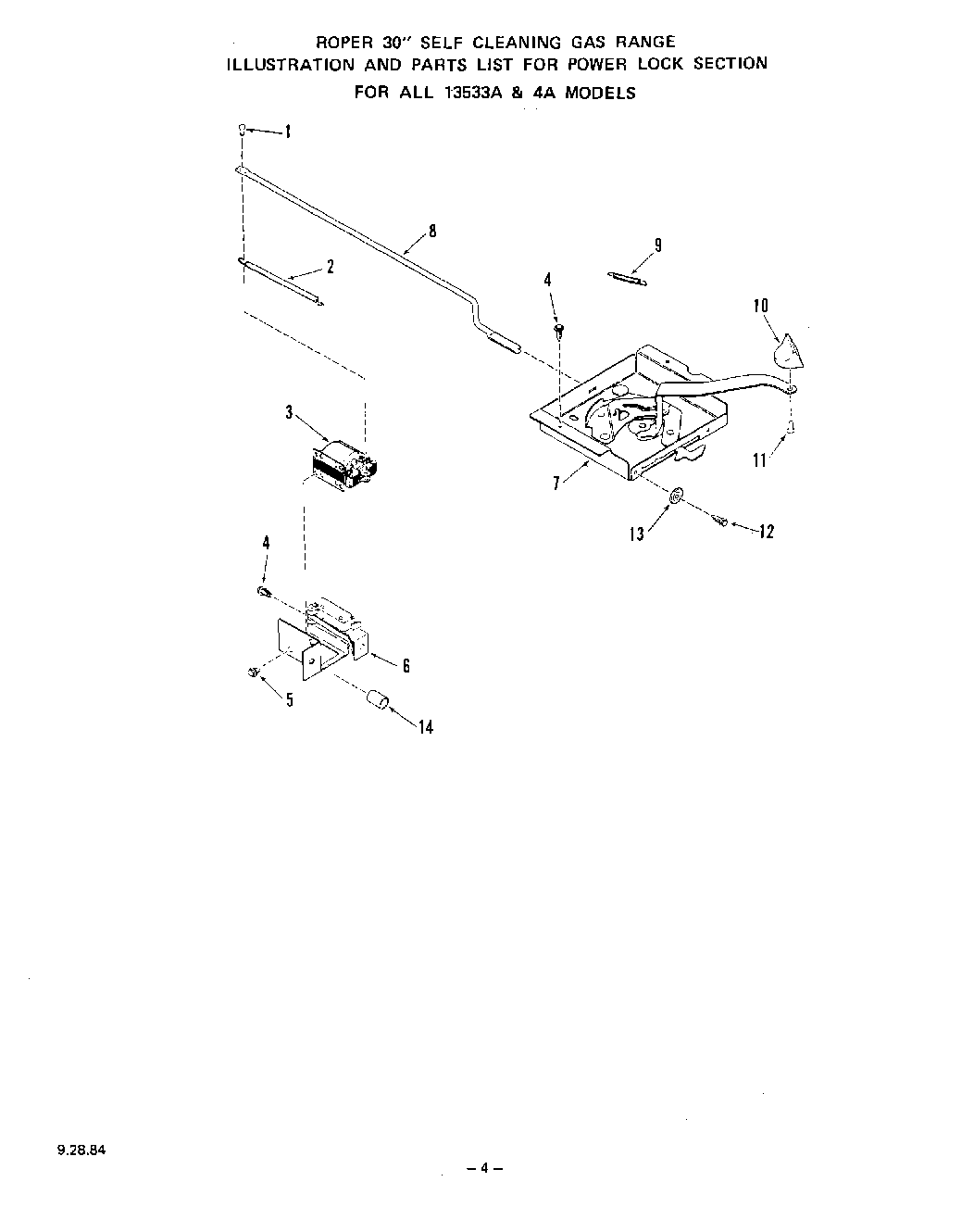

1353W3A 04 – POWER LOCK

Products

Position	Product
1	Stud
2	Spring-Solenoid
3	Solenoid Only
4	WP112432 Whirlpool Nut Assembly
5	Mounting Screw
6	Bracket w/Switch
7	Oven Door Lock Assm. (Inc. Key 9)
8	Rod-Oven Door Lock
9	Spring-Lock Handle
10	Knob-Lock Handle
11	Screw 6-32×15/32“
12	WPL 316365
13	WPL 21067
14	Spacer (2 Req)
