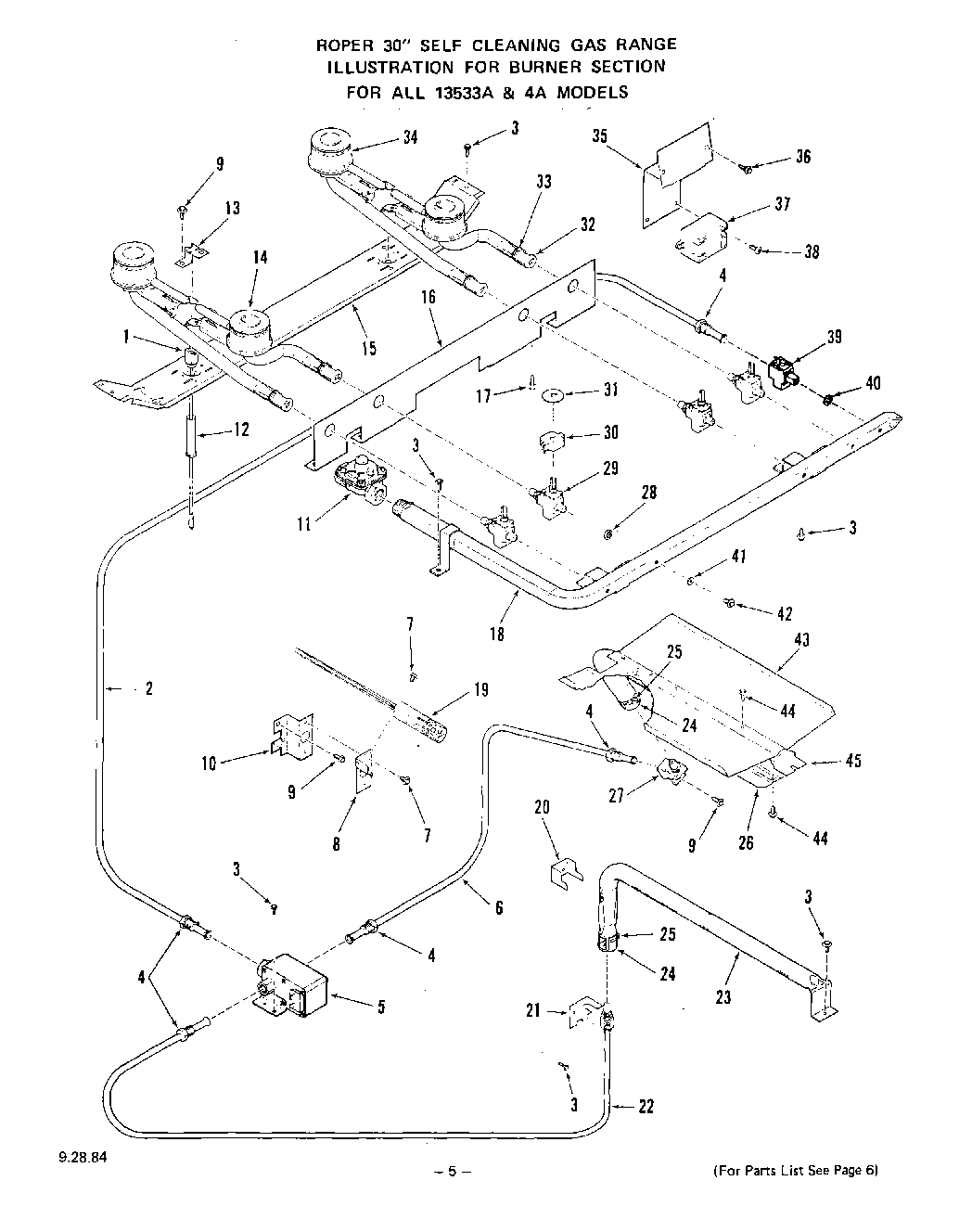

1353W3A 05 – BURNER

Products

Position	Product
1	Panel, Side L.H. (Toast)
1	Left
2	Tubing 3/8“-Shut Off Valve to Control Valve
3	WP112432 Whirlpool Nut Assembly
4	Inverted Nut 3/8“
5	Control Valve
6	Tubing 3/8“ (Shut Off to Union)
7	Screw 10 – 32 x 1/4“
8	Bracket-Igniter
9	WPL 316365
10	Bracket-Igniter (Oven Burner)
11	Pressure Regulator
12	Raceway – Lt or Rt
13	panel, side l.h. (almond panel, side r.h.)
14	Front Top Burner-Lt. or Rt.(Inc`s. 32 & 33)
15	Panel, Side L.H. (Harvest Gold)
16	Wire Shield-Gas Valve
17	Screw 10-32×3/8“
18	Manifold Pipe
19	Igniter – Bake or Broil
20	Support-Oven Burner
21	Bracket-Orifice Fitting
22	Tubing 3/8“ w/Orifice
23	Oven Burner (Inc`s 24 & 25)
24	Air Shutter
25	Adjustment Screw -Air Shutter
26	WPL 302904
27	Broiler Orifice Fitting
29	Gas Valve (4 Req)
30	Switch-Gas Valve (4 Req)
31	Shield – Gas Value (4 Req)
32	Air Shutter
33	Adjustment Screw-Air Shutter
34	Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33)
35	Bracket-Module
36	Screw 10-32×1/2“
37	Spark Module
38	Screw 6-32×3/8“
39	Shut Off Valve
40	Silicone Rubber Gasket
41	Gasket (For 81)
42	Mounting Screw (Inc`s 86)
43	Upper Baffle – Broil
44	Screw 8 – 32×3/8“
45	WPL 318758
