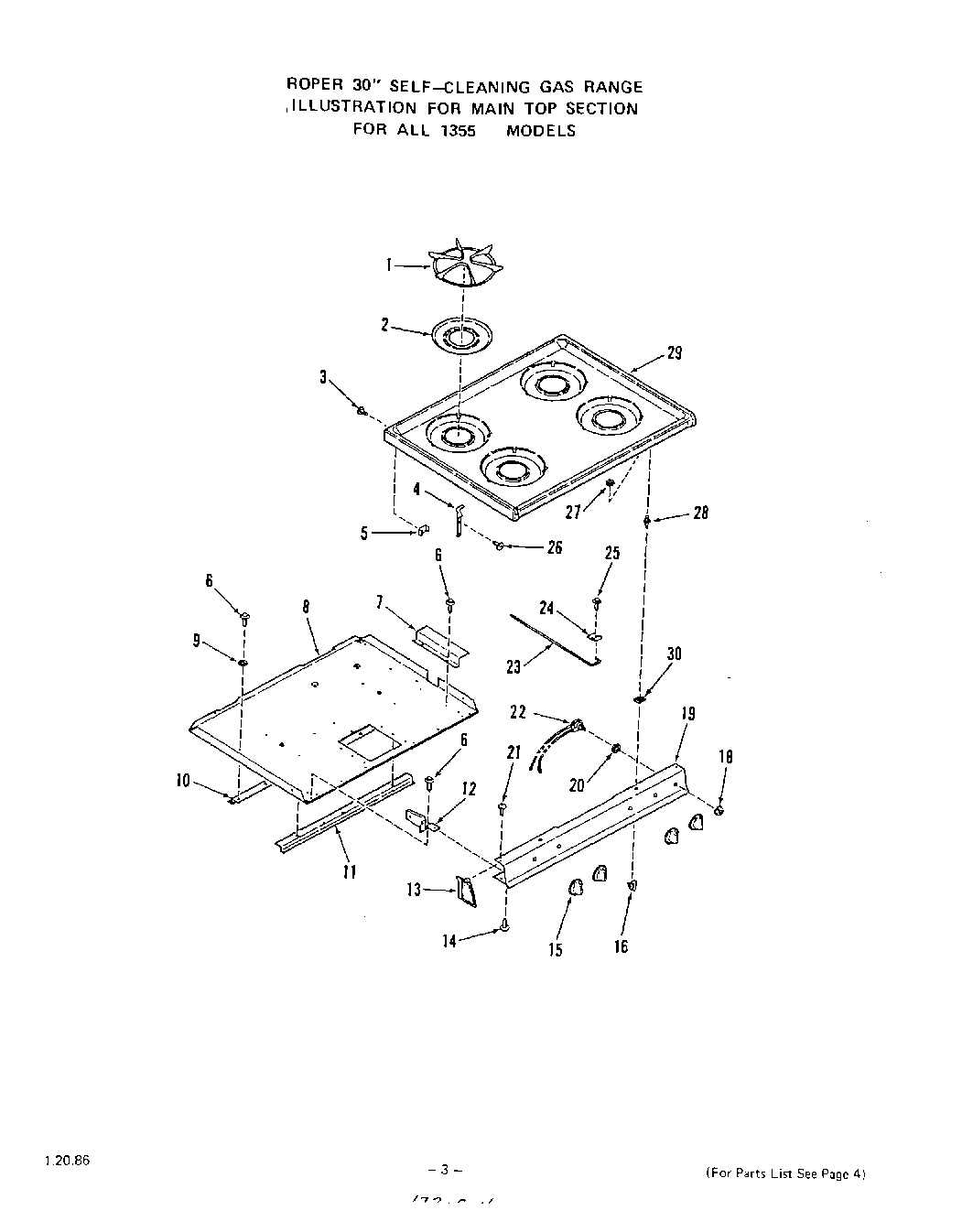

1355^2A 03 – GRIDDLE

Products

Position	Product
1	Top Grate (4 Required)
2	Spill Bowl
4	Left
4	Right
5	bracket-main top hinge (lt. or rt.)
6	Screw 10-16×7/16“
7	Raceway
8	18850A Models
8	Burner Box Bottom
9	Washer
10	Rear Stiffener-Burner Box Bottom
11	Front Stiffener-Burner Box Bottom
12	Right
12	Left
13	Right
13	Left
14	Screw 10ABx1/2“
15	Knob-Gas Valve (4 Reg)
16	Catch-Main Top Strike (2 Required)
18	Knurled Nut
19	Manifold Panel
20	Lock Nut
21	Screw 6-20×3/8“
22	Push Switch-Oven Light
23	Support Rod-Main Top
24	Clamp
25	WP112432 Whirlpool Nut Assembly
26	WPL 321162
27	Keps Nut 8-32
28	Strike-Main Top (2 Required)
29	White
29	Golden Wheat
29	Main Top (Chrome)
30	Washer
