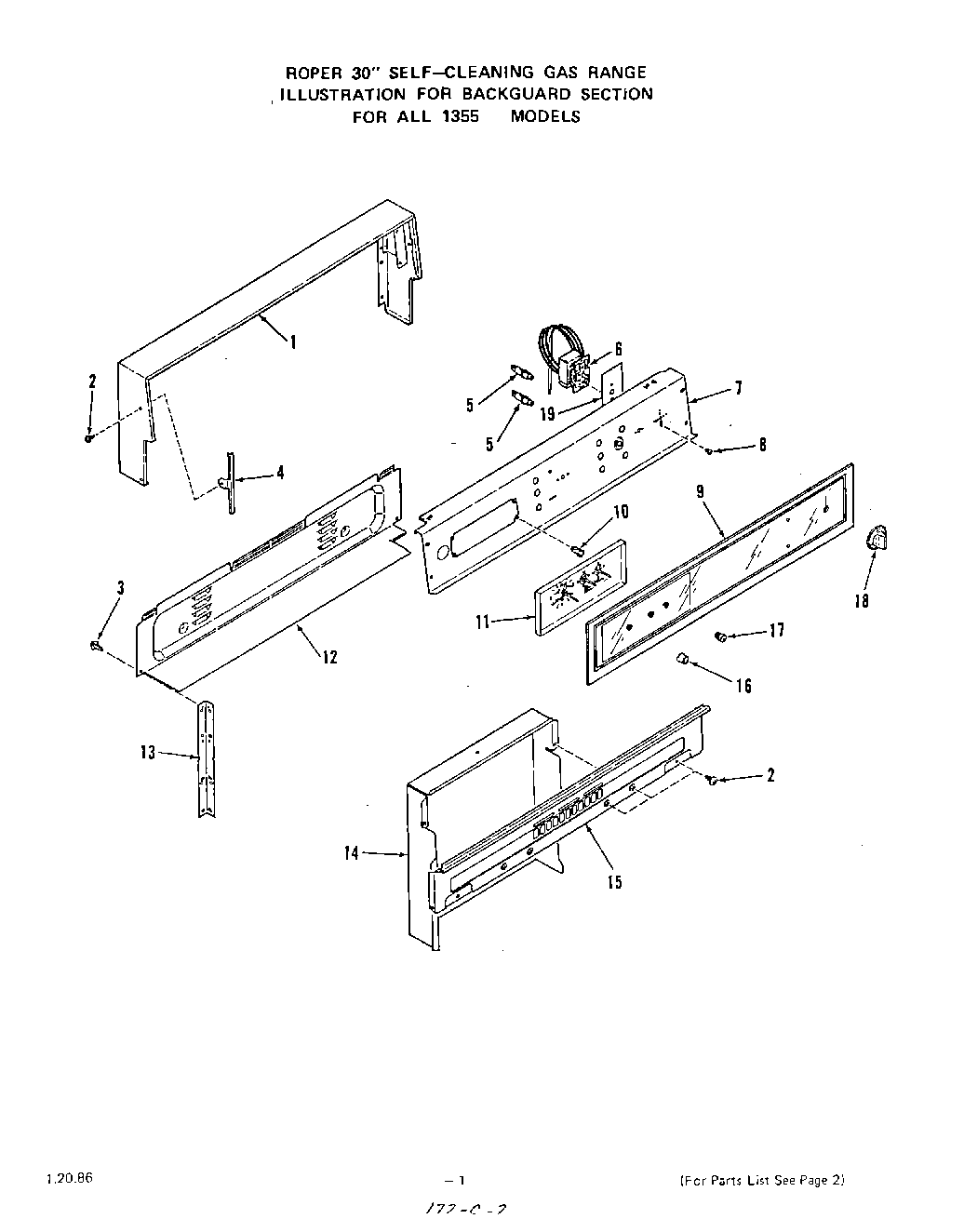

| 1 | Glass Top Assembly |
| 2 | Screw 6-20x3/8`` |
| 3 | Screw 10-16x7/16`` |
| 4 | End Trim-Top Lamp Glass (Lt. or Rt.) |
| 5 | Indicator Light |
| 6 | Thermostat-Oven |
| 7 | Mounting Panel-Controls |
| 8 | WPL 78565 |
| 9 | Backguard Glass |
| 10 | Tubular Clip (4 Req.) |
| 11 | Clock w/1 Hr. Timer |
| 12 | Wire Cover |
| 13 | Support-Backguard (Lt. or Rt.) |
| 14 | Shield-Flue Deflector |
| 15 | Bottom Front-Backguard |
| 16 | Knob-Clock |
| 17 | Knob-Clock (Start & Stop Time) |
| 18 | Knob-Thermostat |
| 19 | Barrier-Thermostat |
