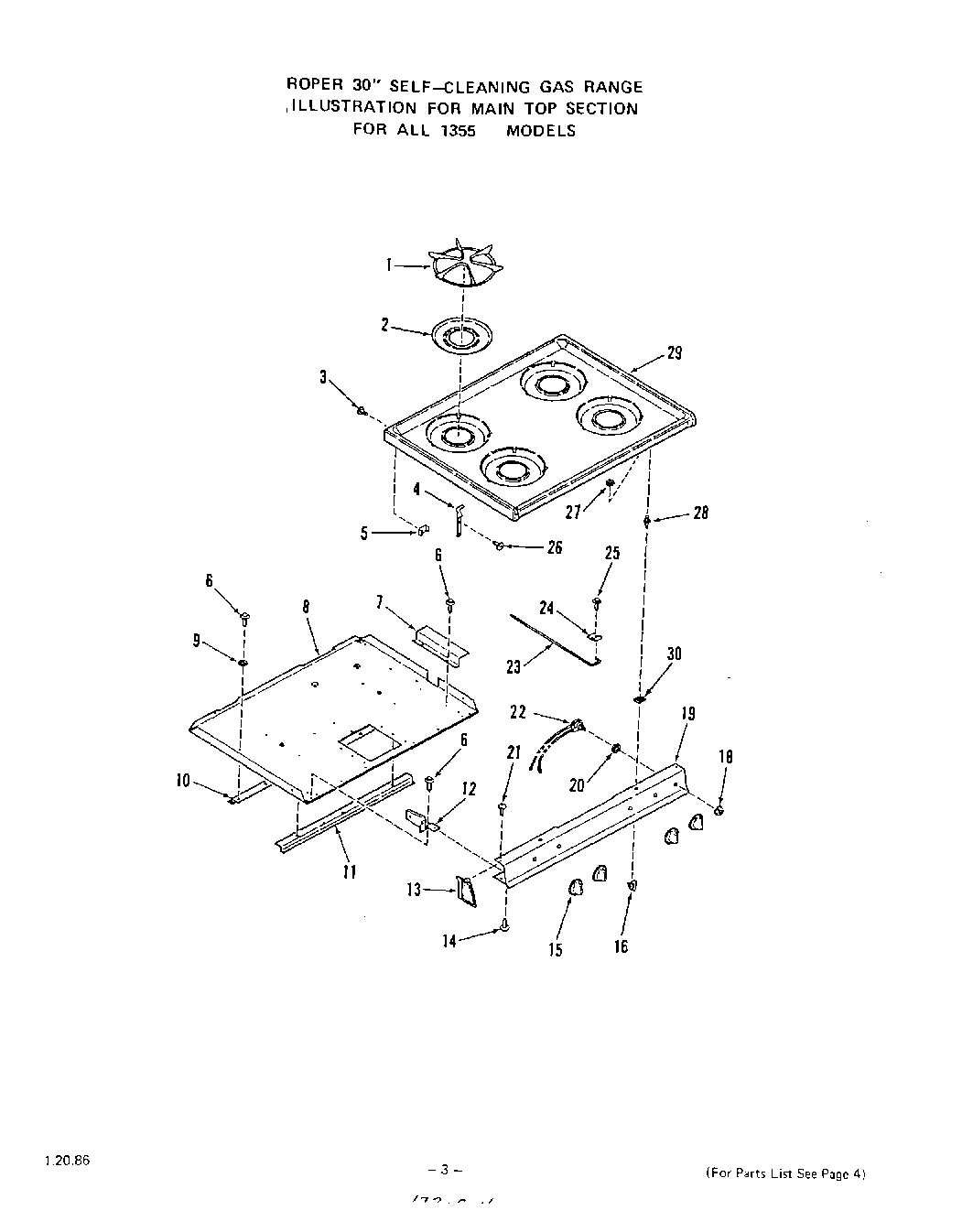

| 1 | Top Grate (4 Required) |
| 2 | Spill Bowl |
| 4 | Left |
| 4 | Right |
| 5 | bracket-main top hinge (lt. or rt.) |
| 6 | Screw 10-16x7/16`` |
| 7 | Raceway |
| 8 | 18850A Models |
| 8 | Burner Box Bottom |
| 9 | Washer |
| 10 | Rear Stiffener-Burner Box Bottom |
| 11 | Front Stiffener-Burner Box Bottom |
| 12 | Right |
| 12 | Left |
| 13 | Right |
| 13 | Left |
| 14 | Screw 10ABx1/2`` |
| 15 | Knob-Gas Valve (4 Reg) |
| 16 | Catch-Main Top Strike (2 Required) |
| 18 | Knurled Nut |
| 19 | Manifold Panel |
| 20 | Lock Nut |
| 21 | Screw 6-20x3/8`` |
| 22 | Push Switch-Oven Light |
| 23 | Support Rod-Main Top |
| 24 | Clamp |
| 25 | WP112432 Whirlpool Nut Assembly |
| 26 | WPL 321162 |
| 27 | Keps Nut 8-32 |
| 28 | Strike-Main Top (2 Required) |
| 29 | White |
| 29 | Golden Wheat |
| 29 | Main Top (Chrome) |
| 30 | Washer |
