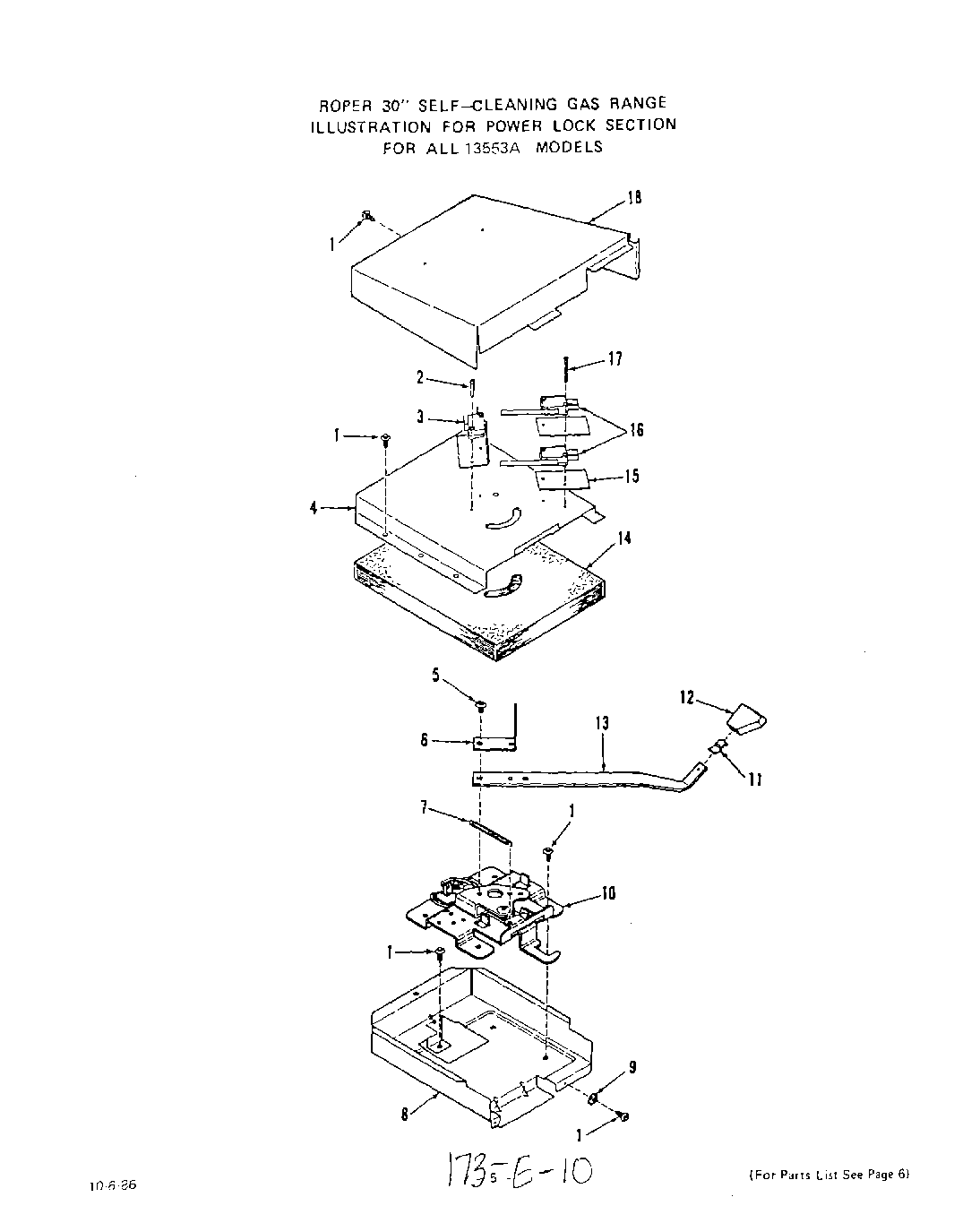

1355W3A 05 – POWER LOCK

Products

Position	Product
1	Screw 10-16×7/16“
2	Screw 4-40×11/16“
3	Micro Switch
4	Cover-Lock Rod
5	Screw 10-24×1/4“
6	Extension-Handle
7	Spring
8	Lock Box
9	WPL 21067
10	Latch Assm. (Inc`s. Key 7)
11	Clip-Knob
12	Knob-Lock
13	Handle-Latch
14	Insulation-Latch
15	Insulator-Switch (3 Req)
16	Micro Switch
17	Screw 4-40 x1 9/16“
18	Wire Cover-Latch Switches
