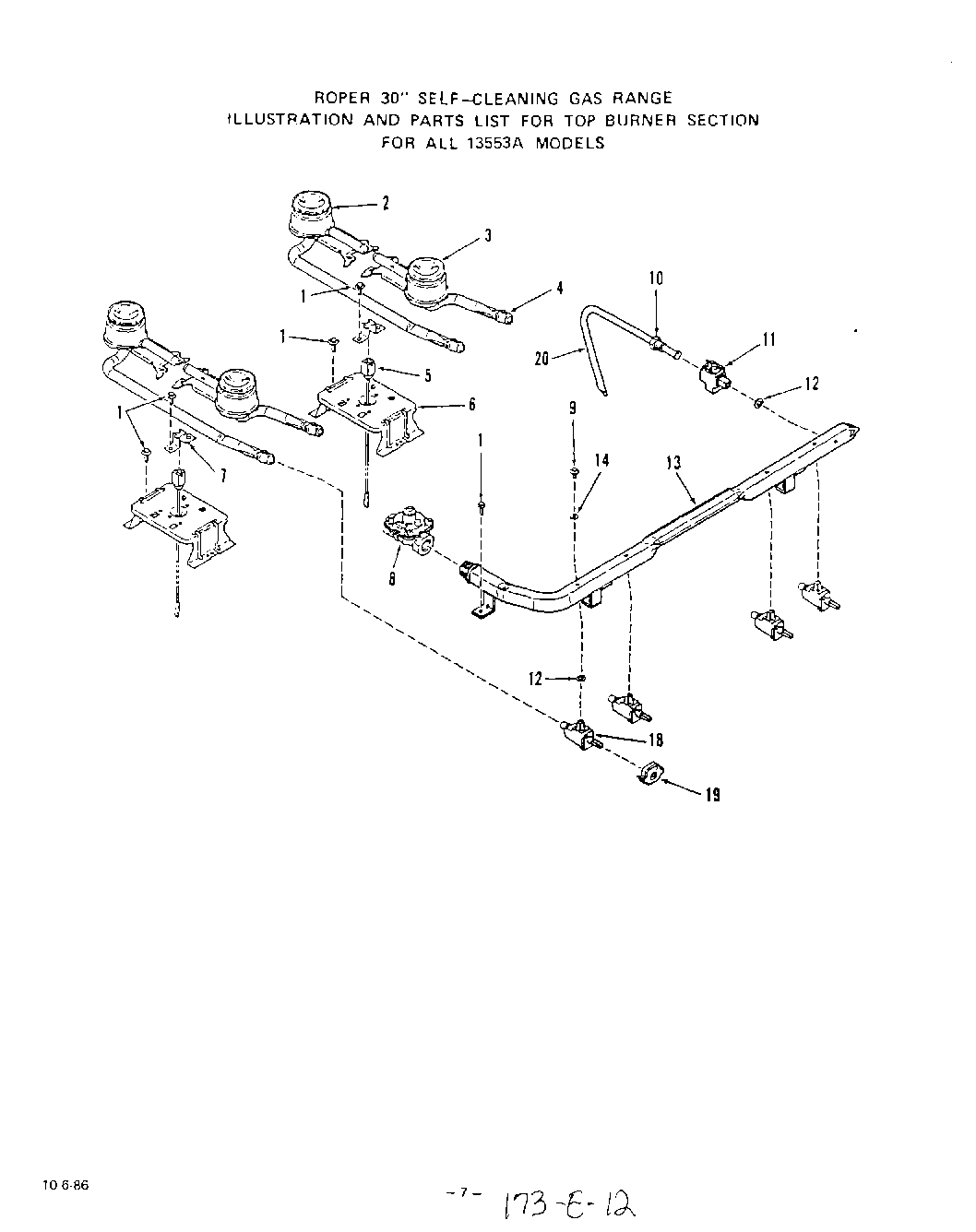

1355W3A 06 – TOP BURNER

Products

Position	Product
1	Screw 10-16×7/16“
2	Rear Top Burner-Rt. or Lt. (Inc`s. Key 4)
3	Front Top Burner-Rt. or Lt. (Inc`s.Key 4)
4	Air Shutter
5	Left
5	Right
6	Support-Top Burner (Lt. or Rt.)
7	panel, side l.h. (almond panel, side r.h.)
8	Pressure Regulator
9	Mounting Screw (Inc`s 86)
10	Inverted Nut 3/8“
11	Shut Off Valve
12	Silicone Rubber Gasket
13	Manifold Pipe
14	Silicone Rubber Gasket (For Key 26)
18	Gas Valve (4 Req)
19	Switch-Gas Valve (4 Req)
20	18850A Models
