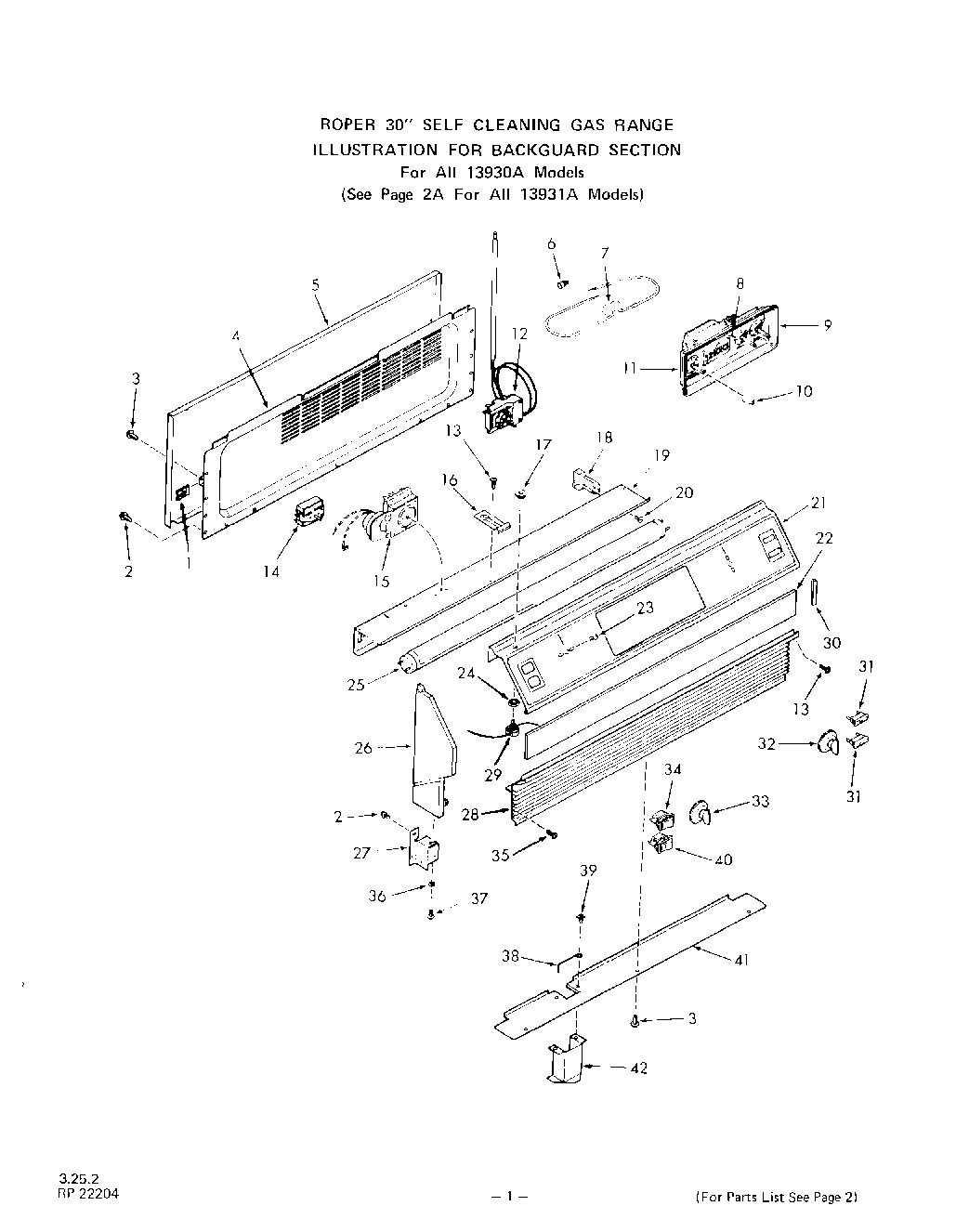

1393^1A 02 – SECTION

Products

Position	Product
	xSnap-In Clip (6 Req. for Key 11)
	WPL 230710
1	Speed Nut 10-32
3	WP112432 Whirlpool Nut Assembly
4	Wire Cover-Backguard
5	Auxiliary Cover-Backguard
6	Wire Connector (2 Required)
7	Wire Lead w/Resistor (10K,4-5 Watt)
8	Glass-Clock
9	Bezel-Clock
10	Knob-Clock (Start & Stop Time)
11	Panel, Drawer (Almond)
12	Oven Thermostat
13	Screw 6-32×3/8“
14	Selector Switch-Lower
15	WPL 281698
16	Support-Backguard
17	Knurled Nut
18	Holder-Flourescent Lamp (2 Required)
19	WP313808 Whirlpool Screw
20	Screw 6-32 x 1/2“
21	Control Panel, Glass
22	Shield, Wiring
23	WPL 78565
24	Lock Nut
25	Fluorescent Lamp (20 W – 24“)
26	End Cap-Backguard (Right)
26	End Cap-Backguard (Left)
27	Bracket-Backguard (Right)
27	Bracket-Backguard (Left)
28	Control Panel, Glass
29	Push Switch (Lock-Unlock)
30	End Trim-Fluorescent Glass (Rt. or Lt.)
31	Indicator Light-Lock & Oven
32	Knob-Oven Thermostat
33	Knob-Selector Switch
34	Switch-Fluorescent Lamp
35	Screw 6-32 x 3/8“
36	Lockwasher
37	Screw 10-24×3/8“
38	Wire Retainer
39	Clip
40	Switch-Oven Light
41	Shield-Controls
42	WPL 286889
