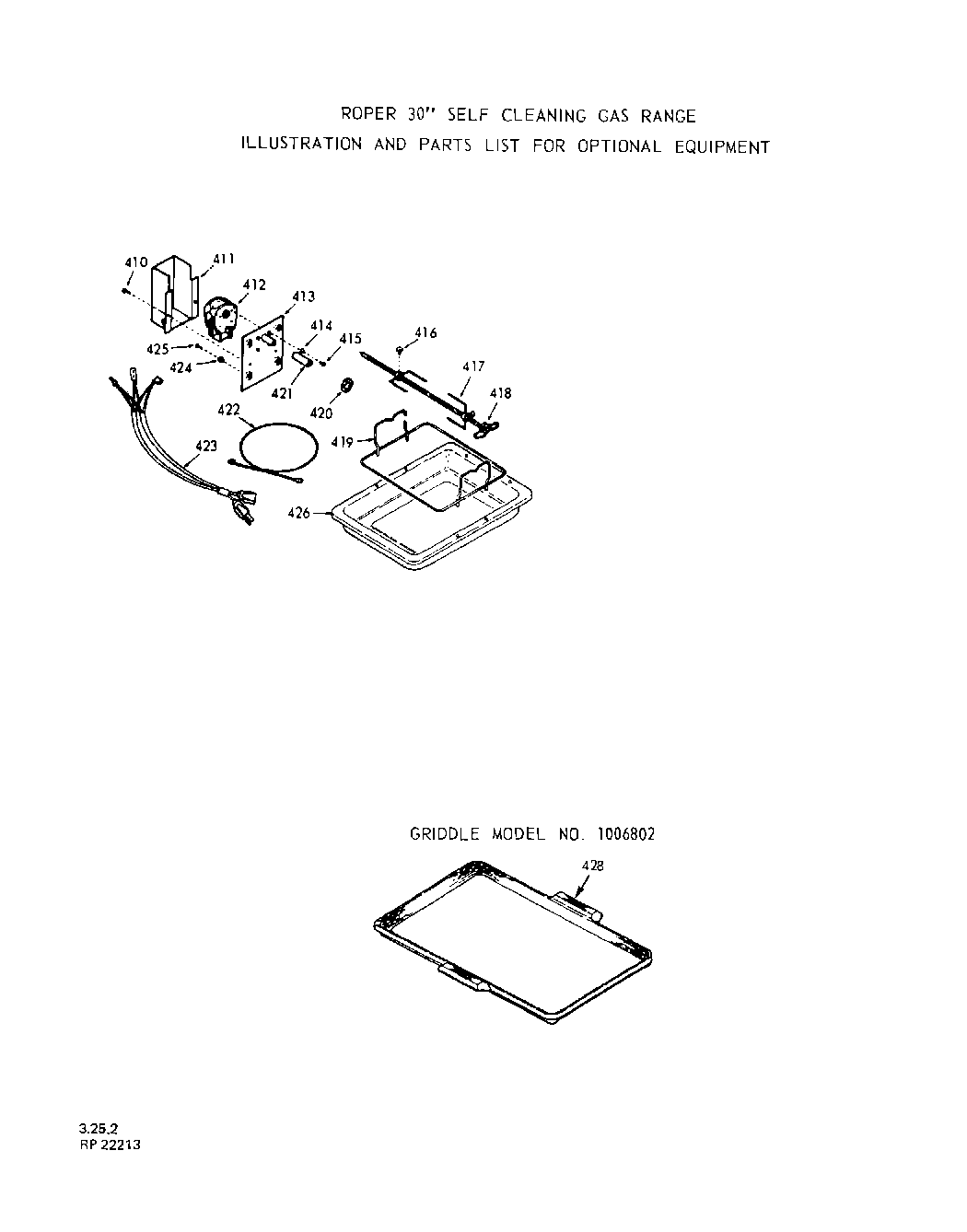

1393^1A 09 – ROTISSERIE, GRIDDLE

1393^1A 09 – ROTISSERIE, GRIDDLE

Written by

in

1393^1A 09 – ROTISSERIE, GRIDDLE

Products

PositionProduct
xSwitch (For Key No. 352)
xParts Not Shown On Illustration
xInstallation Instructions
410Screw 10 – 32 x 1/4“
411Cover – Rotisserie Motor
412Rotisserie Motor
413Mounting Bracket-Rotisserie Motor
414Lockwasher 3/16“
415Screw 8-32 x 3/8“
416Thumbscrew
417Skewer
418Rotisserie Spit
419Spit Support
420Plug Button
421Guide Extension – Rotisserie Motor
422White
422White
422Black With 1/4“ Faston & Eyelet Terminals
422Black
423Rotisserie Cord
424Lockwasher
425Screw 10-32 x 1/2“
426Rotisserie Pan
428Set-On-Griddle (Optional)
