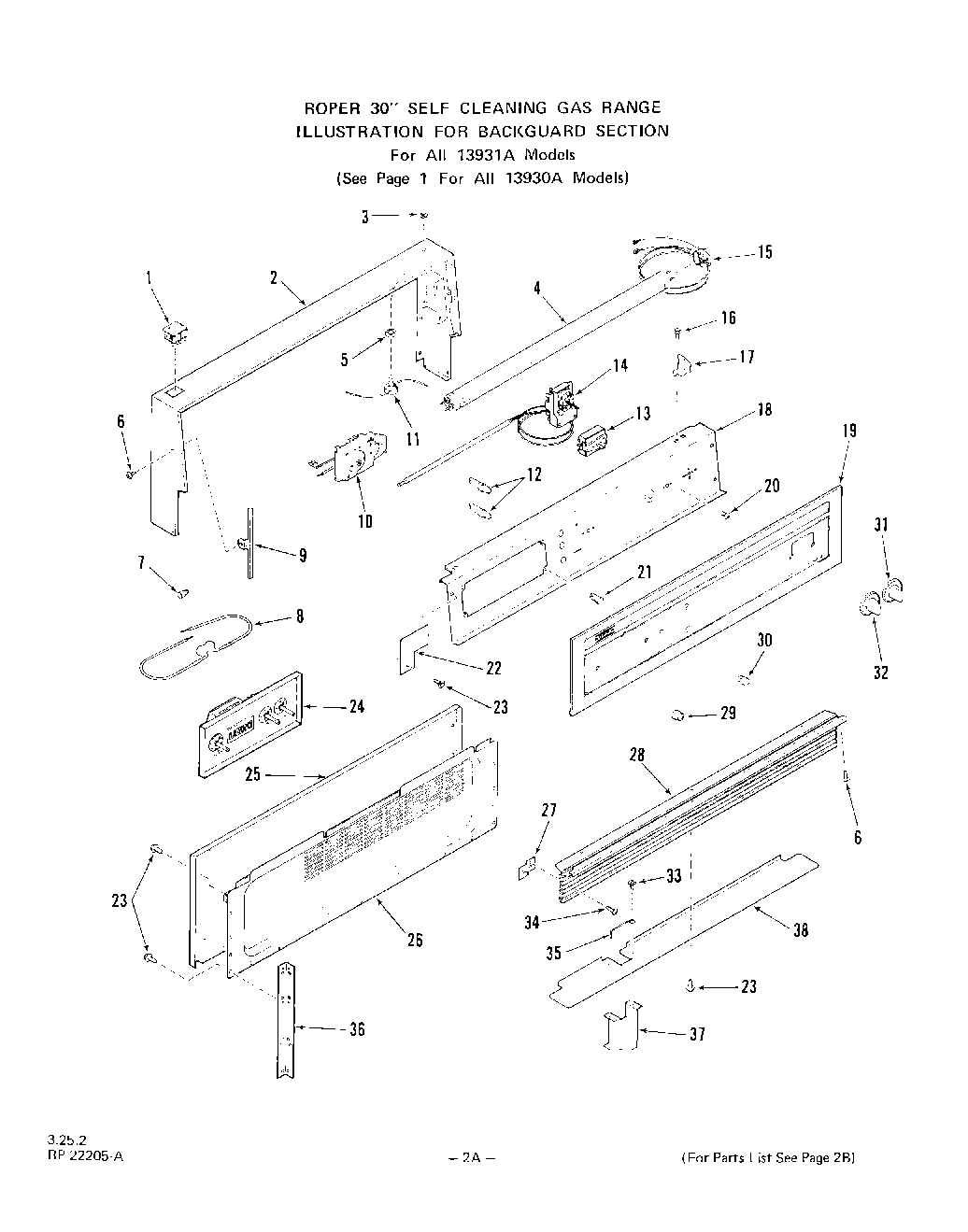

| 1 | Switch-Top & Oven Light |
| 2 | Frame-Backguard |
| 3 | Knurled Nut |
| 4 | Fluorescent Lamp (20 W - 24``) |
| 5 | Lock Nut |
| 6 | Screw 6-32x3/8`` |
| 7 | Wire Connector (2 Required) |
| 8 | Wire Lead w/Resistor (10K,4-5 Watt) |
| 9 | End Trim- Top Lamp Glass (Lt. or Rt.) |
| 10 | WPL 281698 |
| 11 | Push Switch (Lock-Unlock) |
| 12 | Indicator Light |
| 13 | Selector Switch-Lower |
| 14 | Oven Thermostat |
| 15 | Lamp Holder (Left) |
| 15 | Lamp Holder (Right) |
| 16 | Screw 10-32x3/8`` |
| 17 | Bracket-Fluorescent Lamp (Rt. or Lt.) |
| 18 | WPL 310593 |
| 19 | Top Lamp Glass |
| 20 | WPL 78565 |
| 21 | Tubular Clip (4 Req.) |
| 22 | Cover-Switch Shield |
| 23 | WP112432 Whirlpool Nut Assembly |
| 24 | Clock w/1 Hr. Timer |
| 25 | Auxiliary Cover-Backguard |
| 26 | Wire Cover-Backguard |
| 27 | Bracket-Backguard Bottom (Lt. or Rt.) |
| 28 | Front-Backguard Bottom |
| 29 | Knob-Clock |
| 30 | Knob-Clock (Start & Stop Time) |
| 31 | Knob-Oven Thermostat |
| 32 | Knob-Selector Switch |
| 33 | Clip |
| 34 | Screw 6-32 x 3/8`` |
| 35 | Wire Retainer |
| 36 | Support-Backguard (Lt. or Rt.) |
| 37 | WPL 286889 |
| 38 | Shield-Controls |
