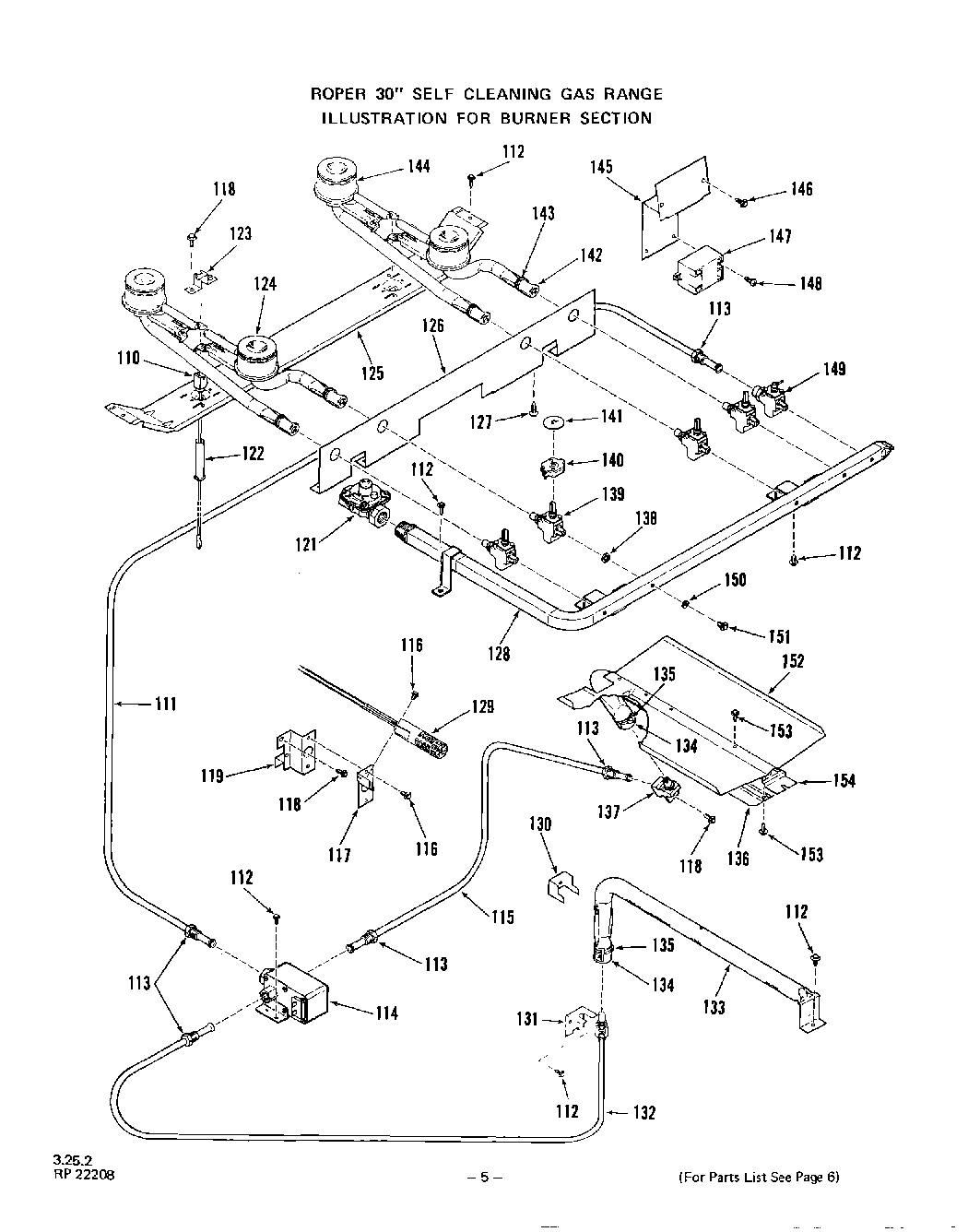

1393^2A 06 – BODY

Products

Position	Product
110	Left
110	Panel, Side L.H. (Toast)
111	Tubing 3/8“-Shut Off Valve to Control Valve (All 13530A Models)
113	Inverted Nut 3/8“
114	Control Valve
115	Panel, Glass
116	Screw 10 – 32 x 1/4“
117	Bracket-Igniter
118	WPL 316365
119	Bracket-Igniter (Oven Burner)
121	Pressure Regulator
122	Raceway – Lt or Rt
123	panel, side l.h. (almond panel, side r.h.)
124	Front Top Burner-Lt. or Rt.(Inc`s. 32 & 33)
125	Panel, Side L.H. (Harvest Gold)
126	Wire Shield-Gas Valve
127	Screw 10-32 x 1/2“
128	Manifold Pipe
129	Igniter – Bake or Broil
130	Support-Oven Burner
131	Bracket-Orifice Fitting
132	Tubing 3/8“ w/Orifice
133	Oven Burner (Inc`s 24 & 25)
134	Air Shutter
135	Adjustment Screw -Air Shutter
136	WPL 302904
137	Broiler Orifice Fitting
138	Silicone Rubber Gasket
139	Gas Valve (4 Req)
140	Switch-Gas Valve (4 Req)
141	Shield – Gas Value (4 Req)
142	Air Shutter
143	Adjustment Screw-Air Shutter
144	Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33)
145	Bracket-Module
146	WP112432 Whirlpool Nut Assembly
147	Spark Module
148	Screw 6-32×3/8“
149	WPL 312437
150	Gasket (For 81)
151	Mounting Screw (Inc`s 86)
152	WPL 300263
153	Screw 8 – 32×3/8“
154	WPL 318758
