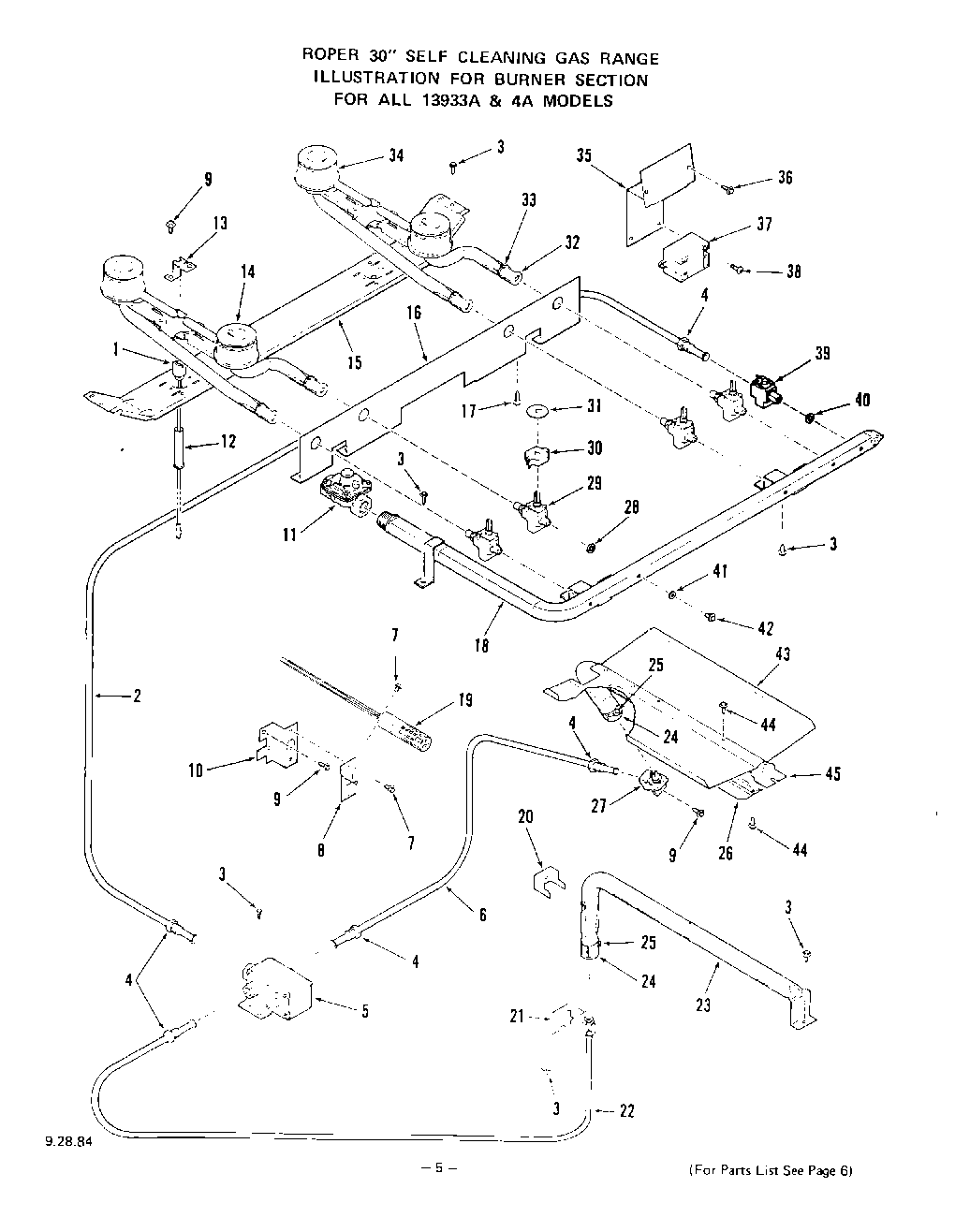

| 1 | Panel, Side L.H. (Toast) |
| 1 | Left |
| 2 | Tubing 3/8``-Shut Off Valve to Control Valve |
| 3 | WP112432 Whirlpool Nut Assembly |
| 4 | Inverted Nut 3/8`` |
| 5 | Control Valve |
| 6 | Tubing 3/8`` (Shut Off to Union) |
| 7 | Screw 10 - 32 x 1/4`` |
| 8 | Bracket-Igniter |
| 9 | WPL 316365 |
| 10 | Bracket-Igniter (Oven Burner) |
| 11 | Pressure Regulator |
| 12 | Raceway - Lt or Rt |
| 13 | panel, side l.h. (almond panel, side r.h.) |
| 14 | Front Top Burner-Lt. or Rt.(Inc`s. 32 & 33) |
| 15 | Panel, Side L.H. (Harvest Gold) |
| 16 | Wire Shield-Gas Valve |
| 17 | Screw 10-32x3/8`` |
| 18 | Manifold Pipe |
| 19 | Igniter - Bake or Broil |
| 20 | Support-Oven Burner |
| 21 | Bracket-Orifice Fitting |
| 22 | Tubing 3/8`` w/Orifice |
| 23 | Oven Burner (Inc`s 24 & 25) |
| 24 | Air Shutter |
| 25 | Adjustment Screw -Air Shutter |
| 26 | WPL 302904 |
| 27 | Broiler Orifice Fitting |
| 29 | Gas Valve (4 Req) |
| 30 | Switch-Gas Valve (4 Req) |
| 31 | Shield - Gas Value (4 Req) |
| 32 | Air Shutter |
| 33 | Adjustment Screw-Air Shutter |
| 34 | Rear Top Burner-Rt. or Lt. (Inc`s. 32 & 33) |
| 35 | Bracket-Module |
| 36 | Screw 10-32x1/2`` |
| 37 | Spark Module |
| 38 | Screw 6-32x3/8`` |
| 39 | Shut Off Valve |
| 40 | Silicone Rubber Gasket |
| 41 | Gasket (For 81) |
| 42 | Mounting Screw (Inc`s 86) |
| 43 | Upper Baffle - Broil |
| 44 | Screw 8 - 32x3/8`` |
| 45 | WPL 318758 |
