1393W1A 08 – ROTISSERIE , GRIDDLE

1393W1A 08 – ROTISSERIE , GRIDDLE

Written by

in

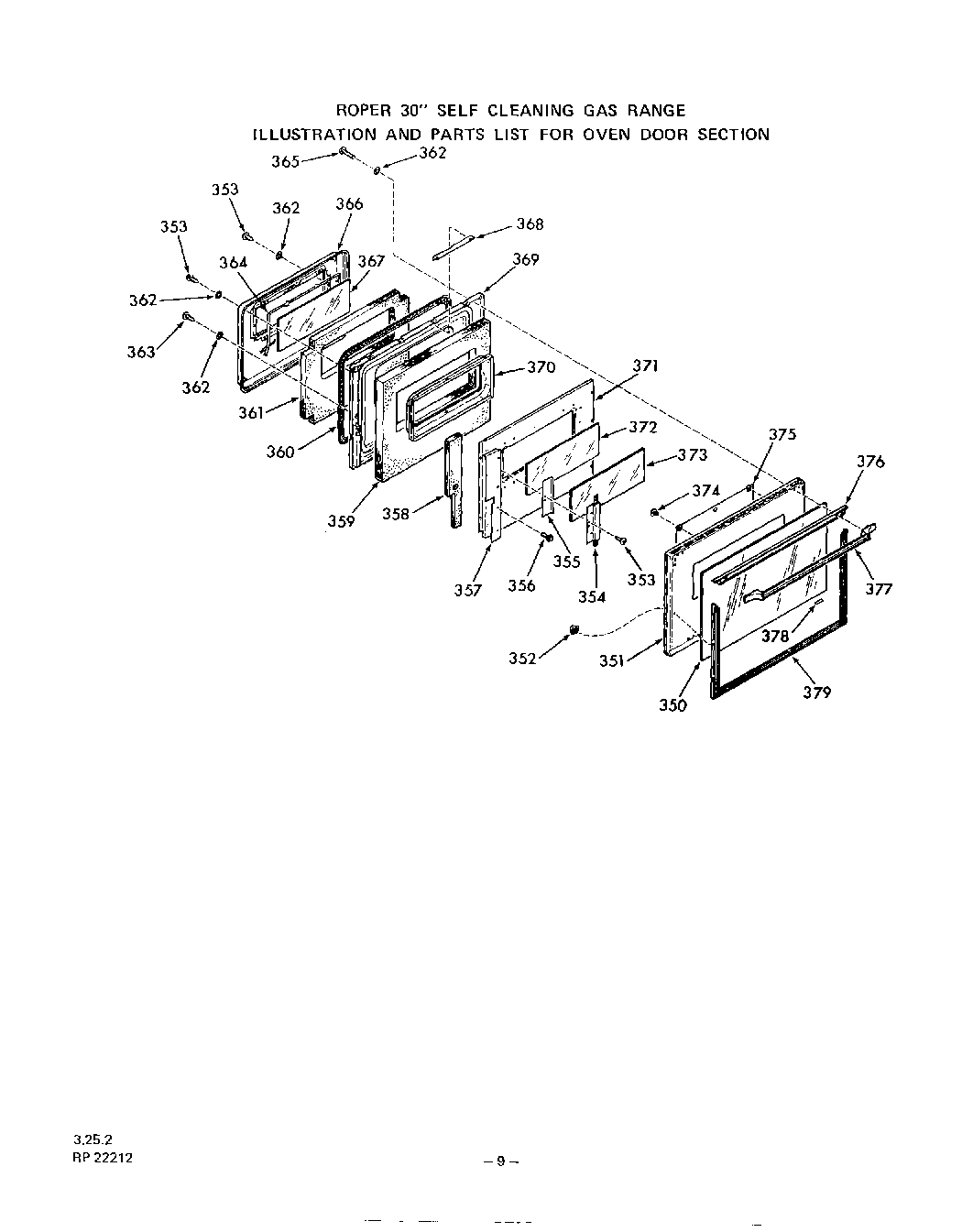

1393W1A 08 – ROTISSERIE , GRIDDLE

Products

PositionProduct
350Outer Door Glass
351Front Panel-Oven Door
352Fastener (7 Required)
353Screw 10ABx1“
354WP487353 Whirlpool Refrigerator Screw
355Spacer-Oven Door Glass (Lt. or Rt.)
356WP112432 Whirlpool Nut Assembly
357Retainer-Side Insulation (Left)
357Retainer-Side Insulation (Right)
358Side Insulation-Lt. or Rt.
359Insulation-Oven Door Lining
360Gasket-Oven Door
361Insulation-Oven Door Plug
362WPL 21067
363Screw 10-32 x 1/2“
364Seal-Inner Glass
365Screw 10-24×2-3/8“
366Plug-Oven Door Lining
367Inner Glass-Oven Door
368Stiffener-Oven Door Lining
369Lining-Oven Door
370Harness, Wire (Oven)
371Insulation Retainer
372Inner Glass-Oven Door
373Oven Door Glass-Intermediate
374Screw 10 – 32 x 1/4“
375Shield-Oven Door Lining
376Top Frame-Oven Door Glass
377Handle-Oven Door
378Cushion-Door Glass
379Gas Valve Switches
379Main-All 13931A Models
379Frame-Oven Door Glass
379Harness, Control
