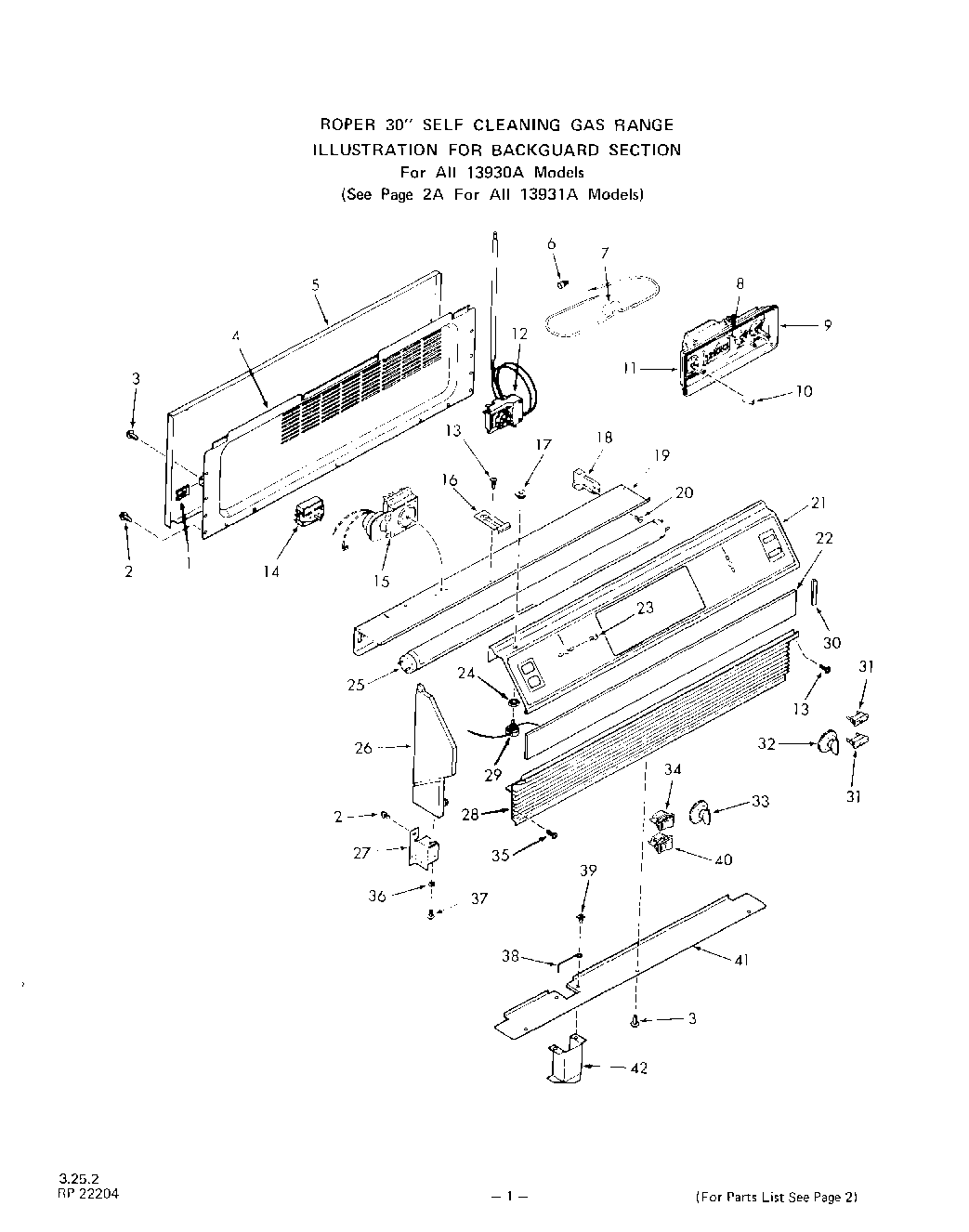

| xSnap-In Clip (6 Req. for Key 11) |
| WPL 230710 |
| 1 | Speed Nut 10-32 |
| 3 | WP112432 Whirlpool Nut Assembly |
| 4 | Wire Cover-Backguard |
| 5 | Auxiliary Cover-Backguard |
| 6 | Wire Connector (2 Required) |
| 7 | Wire Lead w/Resistor (10K,4-5 Watt) |
| 8 | Glass-Clock |
| 9 | Bezel-Clock |
| 10 | Knob-Clock (Start & Stop Time) |
| 11 | Panel, Drawer (Almond) |
| 12 | Oven Thermostat |
| 13 | Screw 6-32x3/8`` |
| 14 | Selector Switch-Lower |
| 15 | WPL 281698 |
| 16 | Support-Backguard |
| 17 | Knurled Nut |
| 18 | Holder-Flourescent Lamp (2 Required) |
| 19 | WP313808 Whirlpool Screw |
| 20 | Screw 6-32 x 1/2`` |
| 21 | Control Panel, Glass |
| 22 | Shield, Wiring |
| 23 | WPL 78565 |
| 24 | Lock Nut |
| 25 | Fluorescent Lamp (20 W - 24``) |
| 26 | End Cap-Backguard (Right) |
| 26 | End Cap-Backguard (Left) |
| 27 | Bracket-Backguard (Right) |
| 27 | Bracket-Backguard (Left) |
| 28 | Control Panel, Glass |
| 29 | Push Switch (Lock-Unlock) |
| 30 | End Trim-Fluorescent Glass (Rt. or Lt.) |
| 31 | Indicator Light-Lock & Oven |
| 32 | Knob-Oven Thermostat |
| 33 | Knob-Selector Switch |
| 34 | Switch-Fluorescent Lamp |
| 35 | Screw 6-32 x 3/8`` |
| 36 | Lockwasher |
| 37 | Screw 10-24x3/8`` |
| 38 | Wire Retainer |
| 39 | Clip |
| 40 | Switch-Oven Light |
| 41 | Shield-Controls |
| 42 | WPL 286889 |
