1393W2A 07 – OVEN DOOR

Products

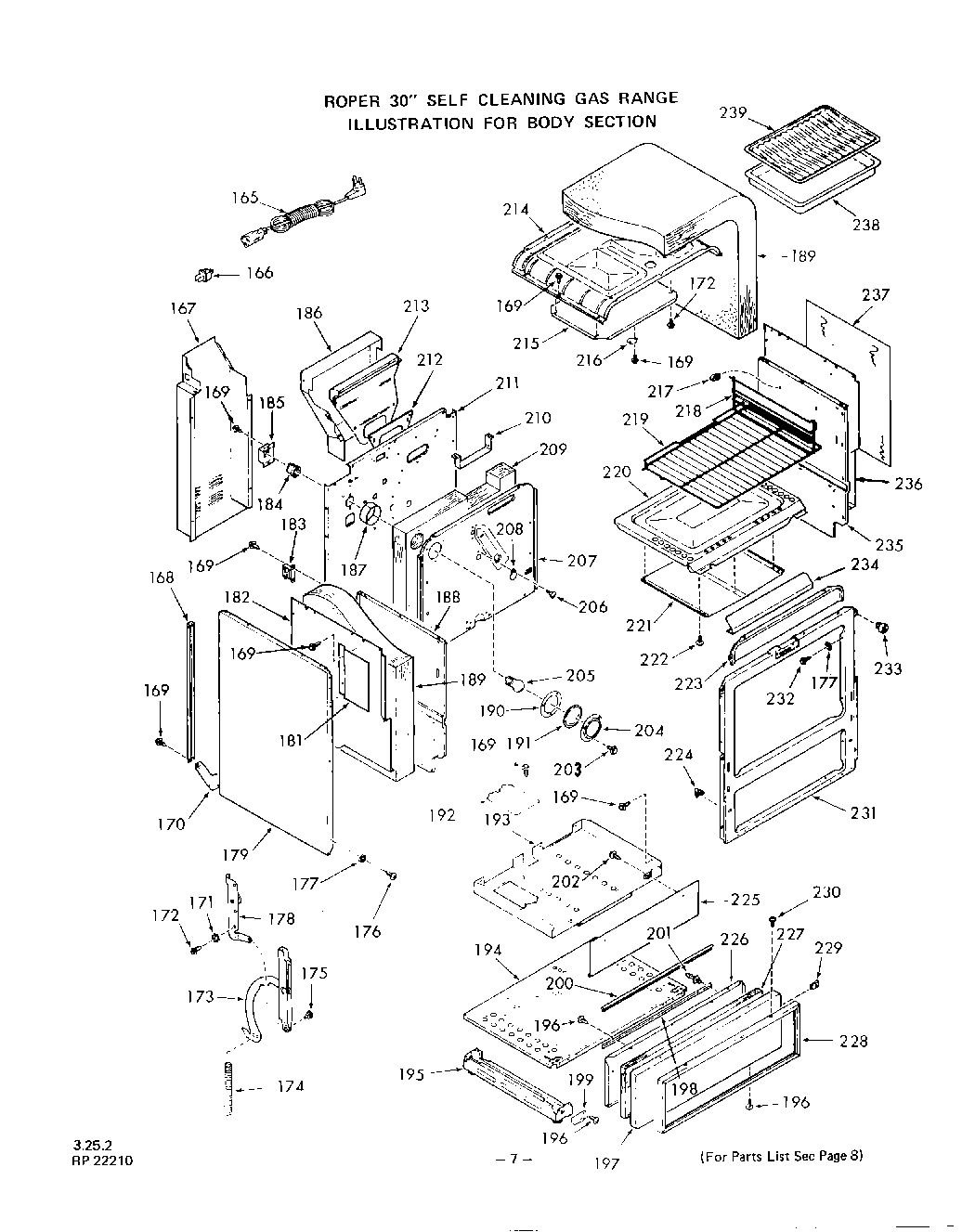

PositionProduct
165Range Service Cord
166Disconnect
167Wire Cover
168Stiffener – Body Side (Lt. or Rt.)
169WP112432 Whirlpool Nut Assembly
170Lower Support – Body Side
170Lower Support – Body Side (Left)
170Lower Support – Body Side (Right)
171Lockwasher
172Screw 10 – 32 x 7/16“
173Oven Door Hinge-Lt. or Rt. (Inc. Key 12)
174Spring-Oven Door (Lt. or Rt.)
175Shoulder rivet
176Screw 8ABx3/4“
177Washer
178Hinge Bracket w/Roller (Inc. Key 175) (Left)
178Hinge Bracket w/Roller (Inc. Key 175) (Right)
179Body Side-Lt. or Rt. (Inc. Key 73) (Golden Wheat)
179Body Side-Lt. or Rt. (Inc. Key 73) (White)
179Body Side-Lt. or Rt. (Inc. Key 73) (Coffee)
179Body Side-Lt. or Rt. (Inc. Key 73) (Avocado)
179Body Side-Lt. or Rt. (Inc. Key 73) (Almond)
181Baffel-Side Panel (Lt or Rt)
182Upper Insulation Retainer-Lt.
183Ballast
184Holder-Oven Light Bulb
185Bracket-Oven Lamp Holder
186Cover-Flue Deflector
187Retainer-Oven Light Insulation
188Oven Side-Left
189Insulation-Oven Top & Sides (1 Piece)
190Gasket-Lens
191Lens-Oven Light
192Access Plate
193Bottom-Oven Burner
194Main Bottom
195Base w/Levelers (Lt. or Rt.)
196Screw 10-32 x 1/2“
197Front-Snap On Panel
198Retainer – Seal
199W10900107 Whirlpool Oven Surface Element Switch
200Seal
201WPL 283882
202Screw 10-32×3/4“
204Retainer-Oven Light Lens
205Oven Lamp Bulb
206Shoulder Screw 10-32×1/2“
207Oven Back
208Cover Plate, Rotisserie
209Insulation-Oven Back
210WPL 282156
211Main Back
212Gasket-Flue Deflector
213Flue Deflector
214Oven Top
215WPL 285860
216Cover Plate-Thermostat Bulb
217Thermostat Bulb Retainer (2 Required)
218WPL 306149
218WPL 306150
219WPL 305361
220WPL 283457
221WPL 282127
222WPL 97220
223WPL 282118
224Catch-Strike
225WPL 304125
2264396923 Whirlpool Broil Pan Set Gray Porcelain
227WPL 282952
228WPL 310977
229Speed Nut 10 – 32
230Screw 6-32×3/8“
231WPL 321919
232WPL 316365
233WPL 100576
234WPL 281574
235WPL 294195
236WPL 322073
237WPL 239603
238WPL 282278
239WPL 282273
