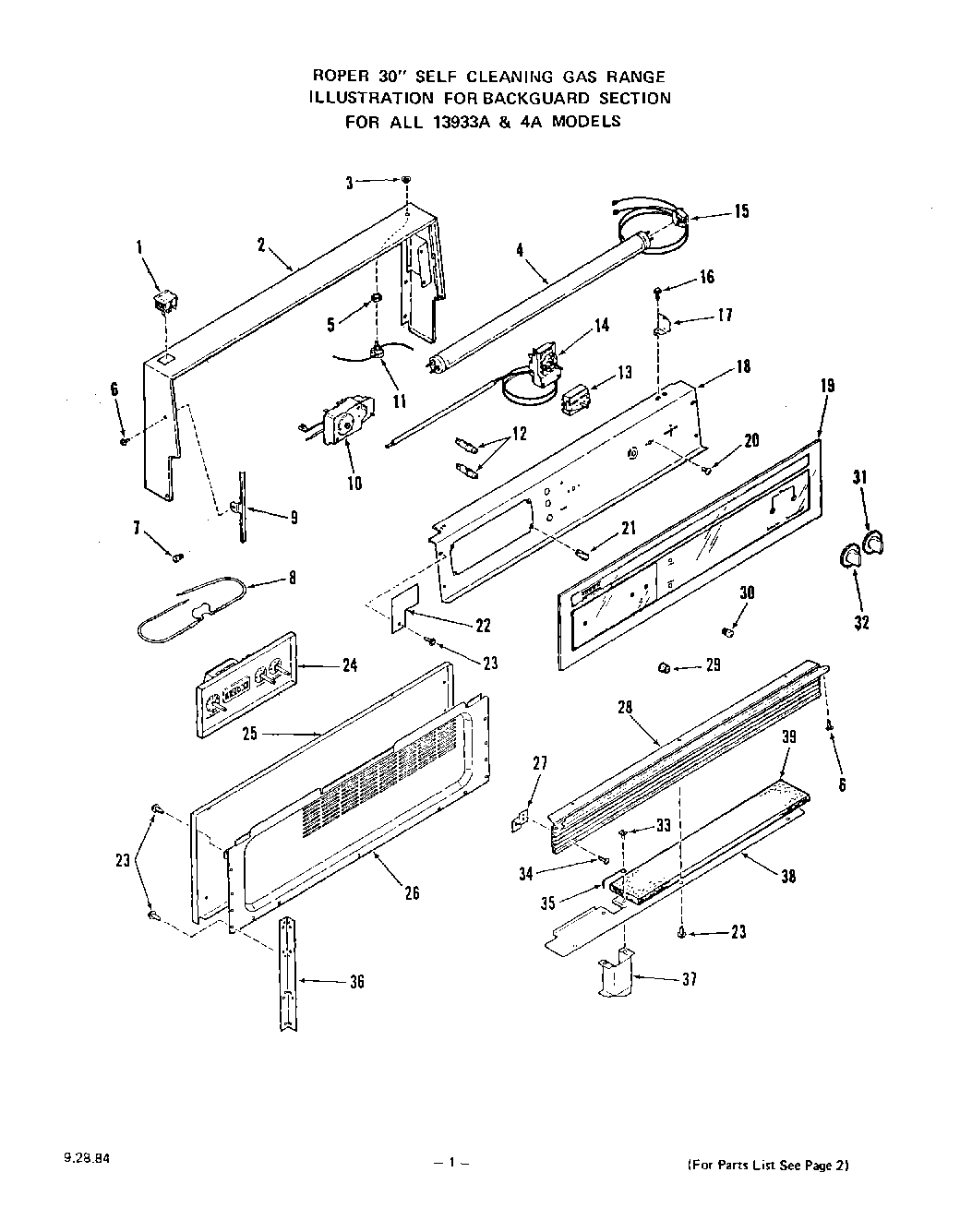

1393W3A 02 – MAIN TOP

Products

Position	Product
1	Switch-Top & Oven Light
2	Frame-Backguard
3	Knurled Nut
4	Fluorescent Lamp (20 W – 24“)
5	Lock Nut
6	Screw 6-20×3/8“
7	Wire Connector (2 Required)
8	Wire Lead w/Resistor (10K,4-5 Watt)
9	End Trim- Top Lamp Glass (Lt. or Rt.)
10	WPL 281698
11	Push Switch (Lock-Unlock)
12	Indicator Light
13	Selector Switch-Lower
14	Oven Thermostat
15	Lamp Holder (Left)
15	Lamp Holder (Right)
16	Screw 10-32×3/8“
17	Bracket-Fluorescent Lamp (Rt. or Lt.)
18	WPL 310593
19	Top Lamp Glass
20	WPL 78565
21	Tubular Clip (4 Req.)
22	Cover-Switch Shield
23	WP112432 Whirlpool Nut Assembly
24	Clock w/1 Hr. Timer
25	Auxiliary Cover-Backguard
26	Wire Cover-Backguard
27	Bracket-Backguard Bottom (Lt. or Rt.)
28	Front-Backguard Bottom
29	Knob-Clock
30	Knob-Clock (Start & Stop Time)
31	Knob-Oven Thermostat
32	Knob-Selector Switch
33	Clip
34	Screw 6-20×3/8“
35	Wire Retainer
36	Support-Backguard (Lt. or Rt.)
37	WPL 286889
38	Shield-Controls
39	Insulation
