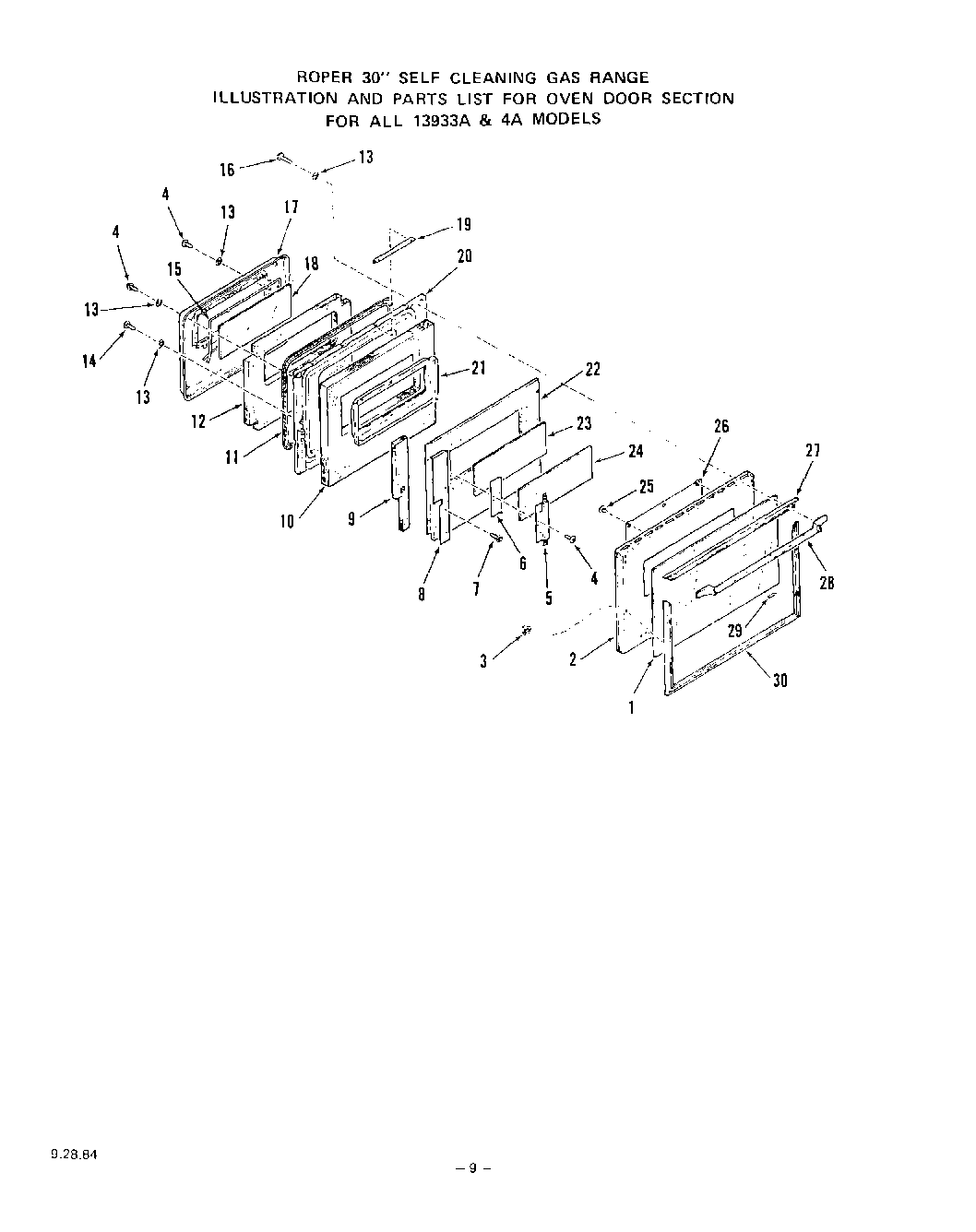

1393W3A 07 – ROTISSERIE , GRIDDLE

Products

Position	Product
1	Outer Door Glass
2	Front Panel-Oven Door
3	Fastener (7 Required)
4	Screw 10ABx1“
5	WP487353 Whirlpool Refrigerator Screw
6	Spacer-Oven Door Glass (Lt. or Rt.)
7	WP112432 Whirlpool Nut Assembly
8	Left
8	Right
9	Side Insulation-Lt. or Rt.
10	Insulation-Oven Door Lining
11	Gasket-Oven Door
12	Insulation-Oven Door Plug
13	WPL 21067
14	Screw 10-32 x 1/2“
15	Seal-Inner Glass
16	Screw 10-24×2-3/8“
17	Plug-Oven Door Lining
18	Inner Glass-Oven Door
19	Stiffener-Oven Door Lining
20	Lining-Oven Door
21	Retainer-Oven Door Glass Insulation
22	Insulation Retainer
23	Inner Glass-Oven Door
24	Oven Door Glass-Intermediate
25	Screw 10 – 32 x 1/4“
26	Shield-Oven Door Lining
27	Top Frame-Oven Door Glass
28	Handle-Oven Door
29	Cushion-Door Glass
30	Gas Valve Switches
30	Main-All 13931A Models
30	Frame-Oven Door Glass
