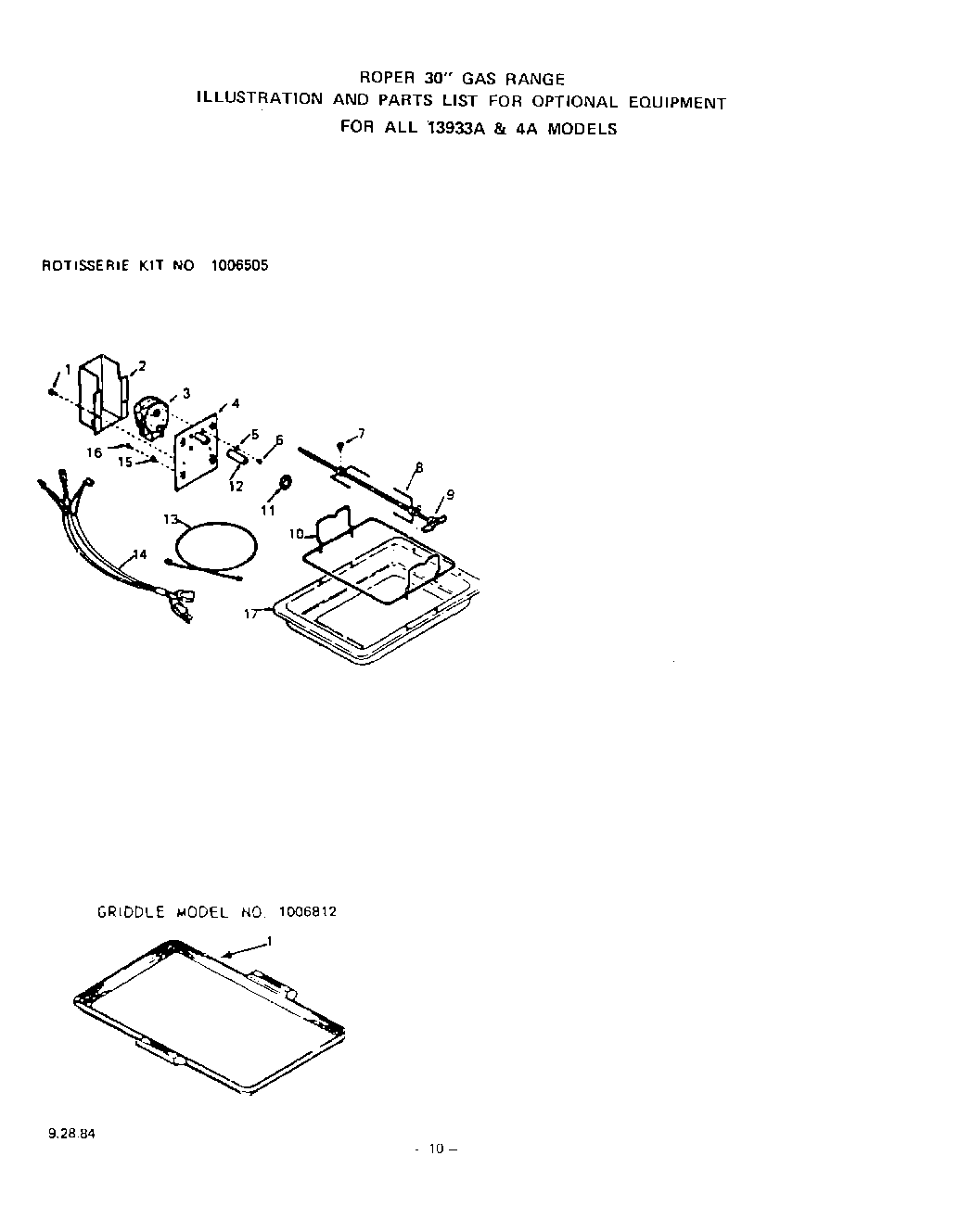

1393W4A 08 – ROTISSERIE, GRIDDLE

Products

Position	Product
	xParts Not Shown On Illustration
1	Set-On-Griddle (Optional)
1	Screw 10 - 32 x 1/4``
2	Cover - Rotisserie Motor
3	xSwitch (For Key No. 352)
3	Rotisserie Motor
4	mounting bracket-rotisserie motor
5	Lockwasher 3/16``
6	Screw 8-32 x 3/8``
7	Thumbscrew
8	Skewer
9	Rotisserie Spit
10	Spit Support
11	Plug Button
12	Guide Extension - Rotisserie Motor
13	Black With 1/4`` Faston & Eyelet Terminals
13	White
13	White
13	Black
14	Rotisserie Cord
15	Lockwasher
16	Screw 10-32 x 1/2``
17	Rotisserie Pan
17	xInstallation Instructions
