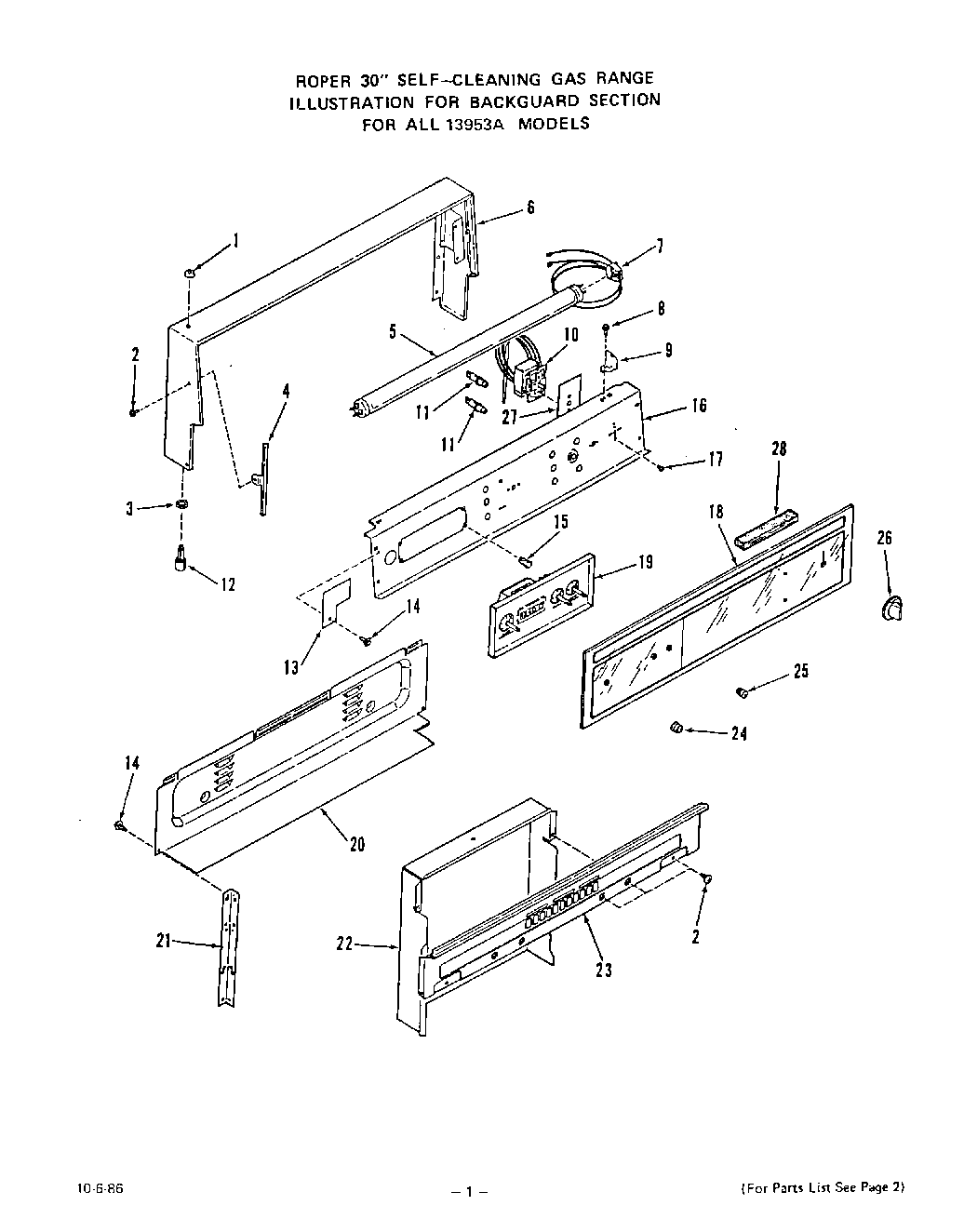

1395W3A 02 – MAIN TOP

Products

Position	Product
1	Knurled Nut
2	Screw 6-20×3/8“
3	Lock Nut
4	End Trim- Top Lamp Glass (Lt. or Rt.)
5	Fluorescent Lamp (20 W – 24“)
6	Frame-Backguard
7	Holder-Fluorescent Lamp (Left)
7	Right
8	Screw 10-32×3/8“
9	Bracket-Fluorescent Lamp (Rt. or Lt.)
10	Thermostat-Oven
11	Indicator Light
12	Push Switch (Fluorescent Light)
13	Cover-Switch Shield
14	Screw 10-16×7/16“
15	Tubular Clip (4 Req.)
16	Mounting Panel-Controls
17	WPL 78565
18	Top Lamp Glass
19	Clock w/1 Hr. Timer
20	Wire Cover-Backguard
21	Support-Backguard (Lt. or Rt.)
22	Shield-Flue Deflector
23	Bottom Front-Backguard
24	Knob-Clock
25	Knob-Clock (Start & Stop Time)
26	Knob-Thermostat
27	Barrier-Thermostat
28	WPL 328021
