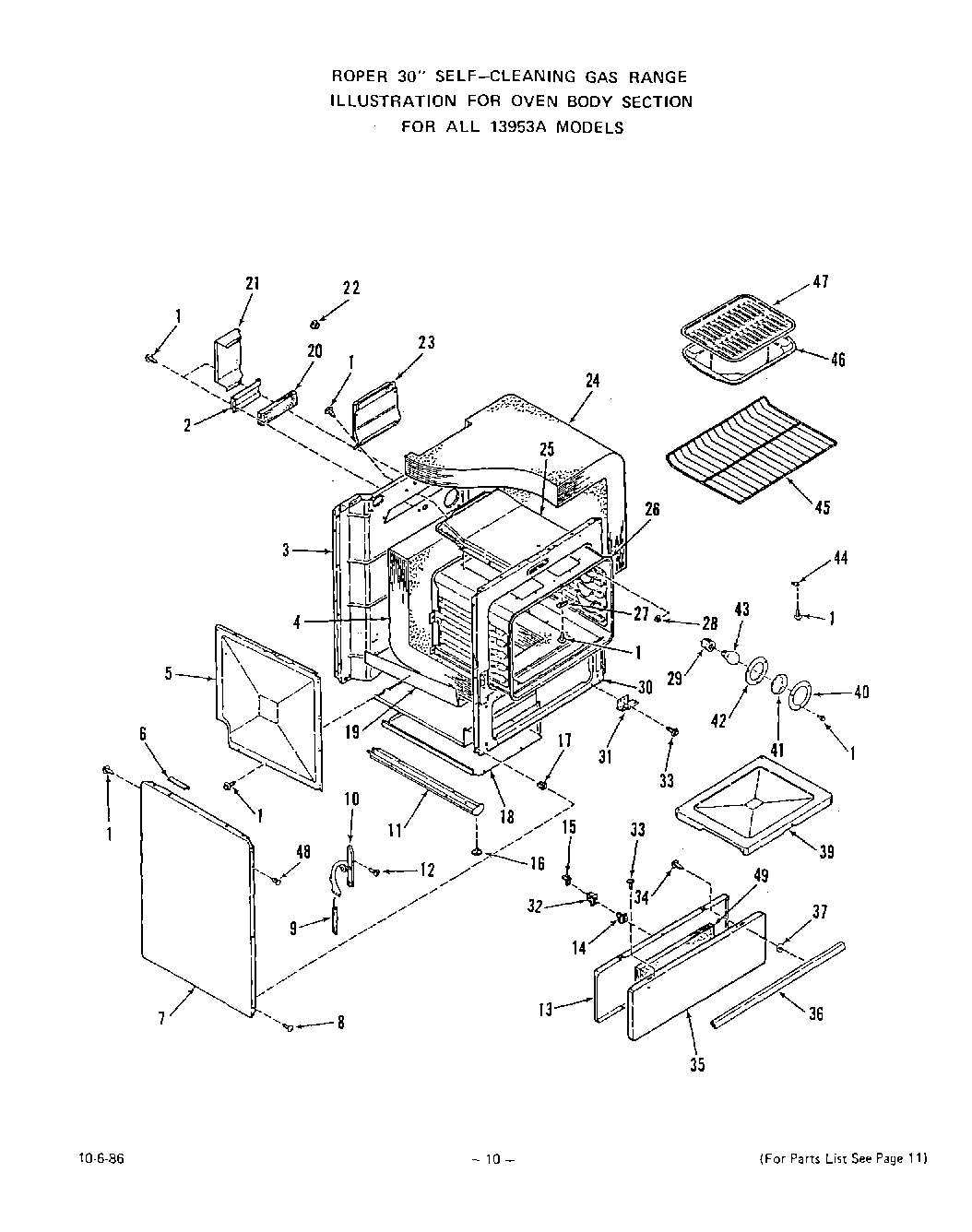

1395W3A 08 – OVEN DOOR

Products

Position	Product
2	Wire Shield
3	Main Back
4	Insulation-Oven Back & Bottom (1 Piece)
5	Retainer-Insulation (Lt. or Rt.)
6	Spacer-Main Top (2 Req)
7	Toast
7	Golden Wheat
7	Almond
7	Platinum
7	White
8	Screw 8ABx5/8“
9	Spring-Oven Door (Lt. or Rt.)
10	Right
10	Left
11	Base w/Levelers-Lt. or Rt.
12	Screw
13	Lining-Storage Drawer
14	Catch-Strike
15	Bracket-Catch
16	Leg Leveler (4 Req)
17	BURNER RECEPTACLE KIT
18	Storage Compartment
19	Lower Insulation Retainer
20	Frame, Front
21	Wire Shield
22	Bushing
23	Flue Deflector
24	Insulation-Oven Top & Sides (1 Piece)
25	Flue Box
26	Oven Body
27	Cover
28	Clip-Thermostat Bulb (2 Req)
29	Holder-Oven Light Bulb
30	Front Frame
31	Hinge
32	Catch-Door
33	Screw-10-32×1/2“
34	Screw 10-16×7/16“
35	WPL 330484
35	Frame, Control Panel
35	WPL 330486
35	WPL 330483
35	WPL 330480
36	Handle-Broiler Door
37	spacer-handle
39	Oven Bottom
40	Retainer-Oven Light Lens
41	Lens-Oven Light
42	Gasket-Lens
43	Oven Lamp Bulb
44	Cover Plate-Thermostat Bulb
45	Oven Rack (2 Req)
46	WPL 331592
47	WPL 326297
48	WPL 281160
49	WPL 303097
