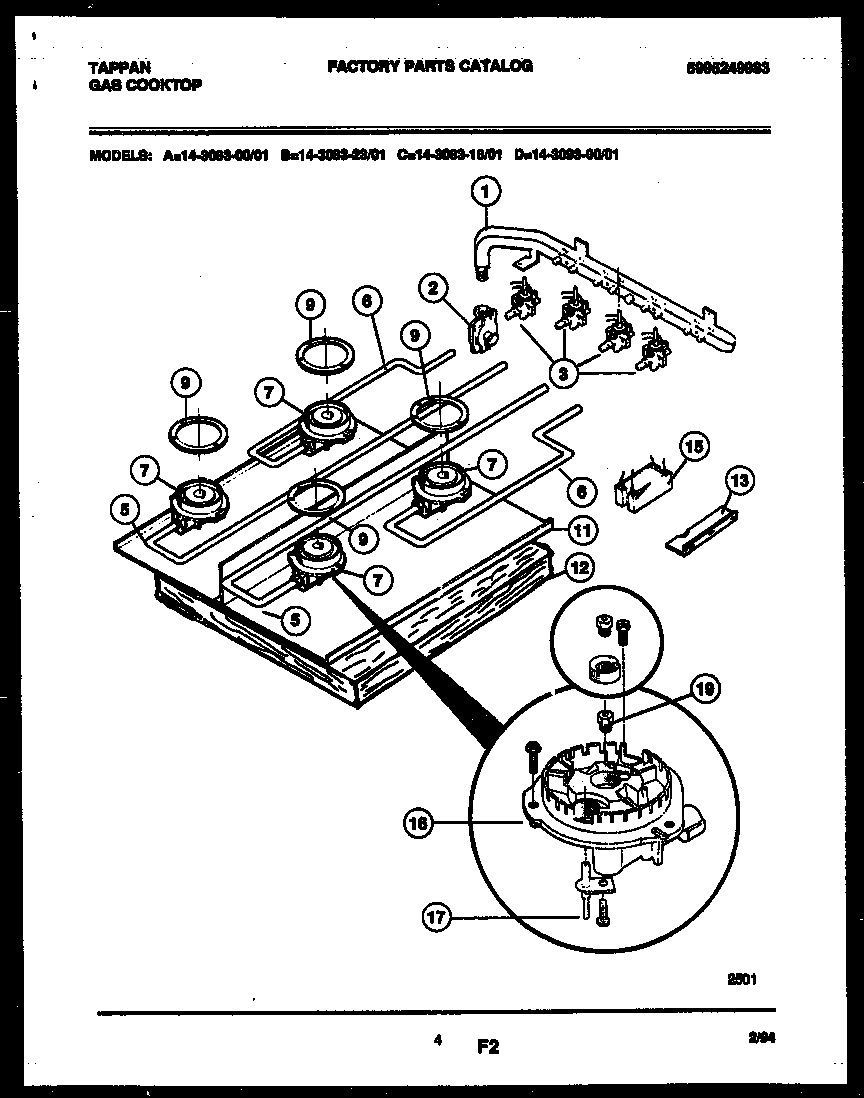

14-3083-00-01 03 – BURNER, MANIFOLD AND GAS CONTROL

14-3083-00-01 03 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

14-3083-00-01 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*96750SWITCH-IGNITOR
*96749HARNESS-HV GROUND
*96749WIRE-IGNITOR (36 INCH)
*96749WIRE-IGNITOR (30 INCH)
*96749WIRE-IGNITOR (20 INCH)
*96749WIRE-IGNITOR (14 INCH)
*96749HARNESS-IGNITION
*96750WCI 5303302413
*96749316069301 Frigidaire Oven Burner Mounting Primary Screw
1WCI 5303284581
25308007974 Frigidaire Pressure Regulator
3VALVE-TOP BURNER, SMALL, W/SCREW(3)
5WCI 5303209020
6WCI 5303209021
7BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
9SEAL BURNER (2) MED
11WCI 5303209024
12WCI 5303209025
13SUPPORT
155304505695 Frigidaire Oven Module
16BURNER-TOP, (4), INCLUDES 37
17316011200 Frigidaire Oven Top Burner Igniter
19ORIFICE-TOP BURNER, (4)
