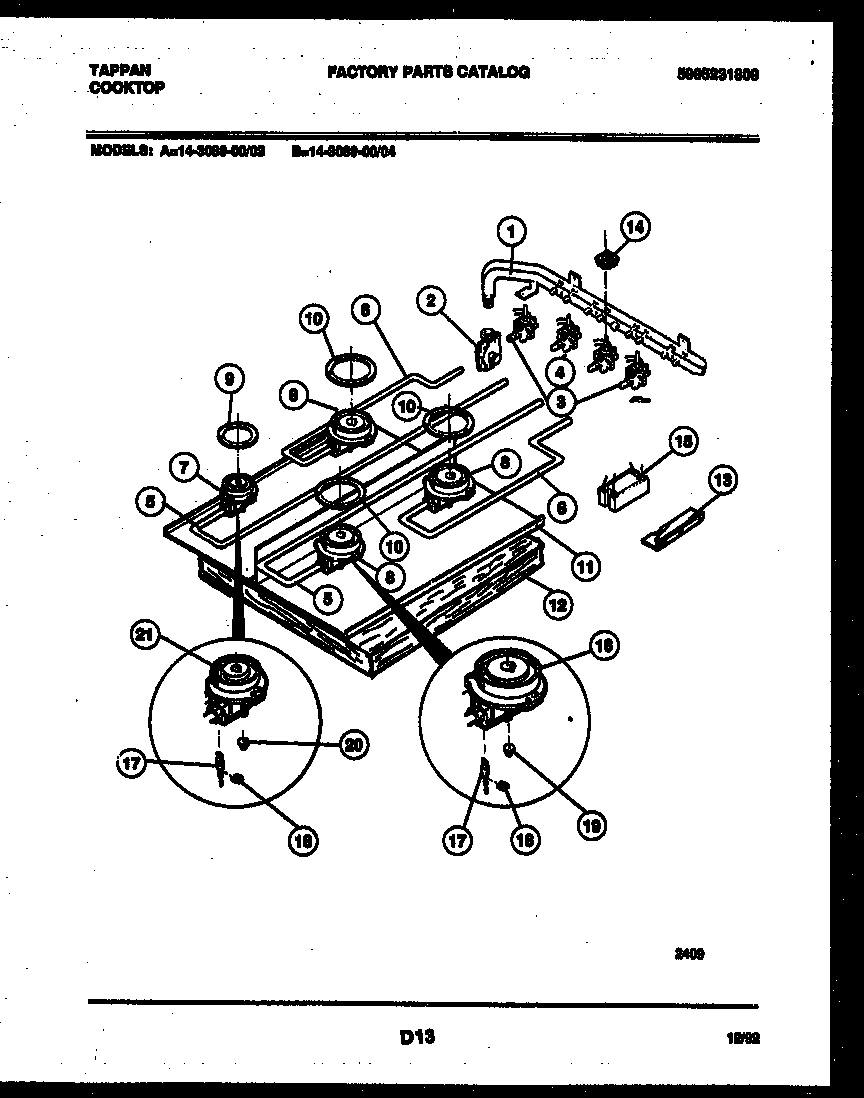

14-3089-00-03 03 – BURNER, MANIFOLD AND GAS CONTROL

14-3089-00-03 03 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

14-3089-00-03 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*82555316048200 Frigidaire Oven Screw
*82554WCI 5303210992
*82554HARNESS-HV GROUND
*82554WIRE-IGNITOR (36 INCH)
*82554WIRE-IGNITOR (30 INCH)
*82554WIRE-IGNITOR (20 INCH)
*82554WIRE-IGNITOR (14 INCH)
*82554HARNESS-IGNITION
*82554316069301 Frigidaire Oven Burner Mounting Primary Screw
*82555SWITCH-IGNITOR
1WCI 5303284581
2WCI 5303209017
3WCI 316036801
4WCI 316036800
5WCI 5303209020
6WCI 5303209021
7BURNER-TOP (MED)
8BURNER-TOP (LGE)
9SEAL BURNER (2) MED
10SEAL BURNER (2) LARGE
11WCI 5303209024
12WCI 5303209025
13WCI 5303283686
155304505695 Frigidaire Oven Module
16BURNER TOP LARGE (2)
17WCI 5303210088
18IGNITER CLIP (2)
19ORIFICE-TOP BURNER, (4)
20ORIFICE-MEDIUM
21BURNER TOP SMALL (2)
