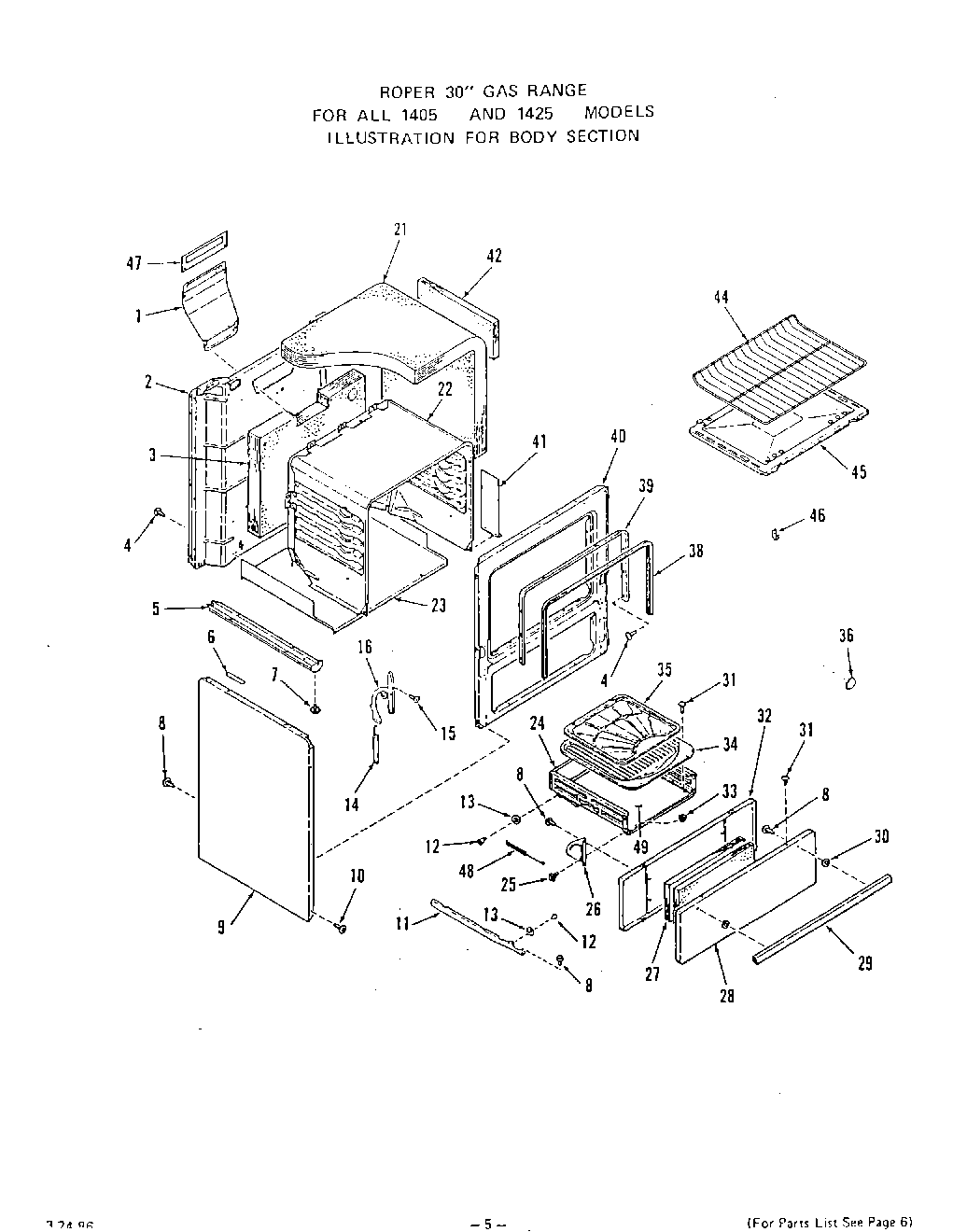

1405^0A 06 – BODY

Products

Position	Product
1	Flue Deflector
2	Back-Main
3	Insulation-Oven Back
5	Base w/Levelers (Lt. or Rt.)
6	Spacer-Main Top (2 Req)
7	Leg Leveler (4 Req)
8	Screw 10-16×7/16“
9	White
9	Side-Body (Lt. or Rt.) (Almond-1405 2A Models)
9	Golden Wheat
9	Almond
10	Screw 10ABx1/2“
11	WP691371 Whirlpool Belt
11	Right
12	Shoulder Rivet
13	Roller
14	Spring-Oven Door (Lt. or Rt.)
15	Screw 10-32 x 5/8“
16	Hinge-Oven Door (Left)
16	Hinge-Oven Door (Right)
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body (14450A Models)
22	Oven Body (14451A Models)
23	Bottom-Main
24	Drawer-Broiler (Inc`s. 12,13) (14450A Models)
24	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
25	Bolt-Shoulder
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
28	Almond
28	Golden Wheat
28	White
29	Handle-Broiler Door
30	spacer-handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door (14450A Models)
32	Lining-Broiler Door (14451A Models)
33	Keps Nut 10-24
34	Broiler Pan
34	Pan-Broiler (14451A M
35	Broiler Pan Grid
35	WPL 331588
36	WPL 101063
38	WPL 326047
39	main chassis (almond)
40	Front Frame
40	WPL 326042
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
44	WPL 326068
45	WPL 331539
45	WPL 327083
46	Thermostat Bulb Clip (2 Required)
47	WPL 329314
48	WPL 327481
49	WPL 329862
49	WPL 331554
