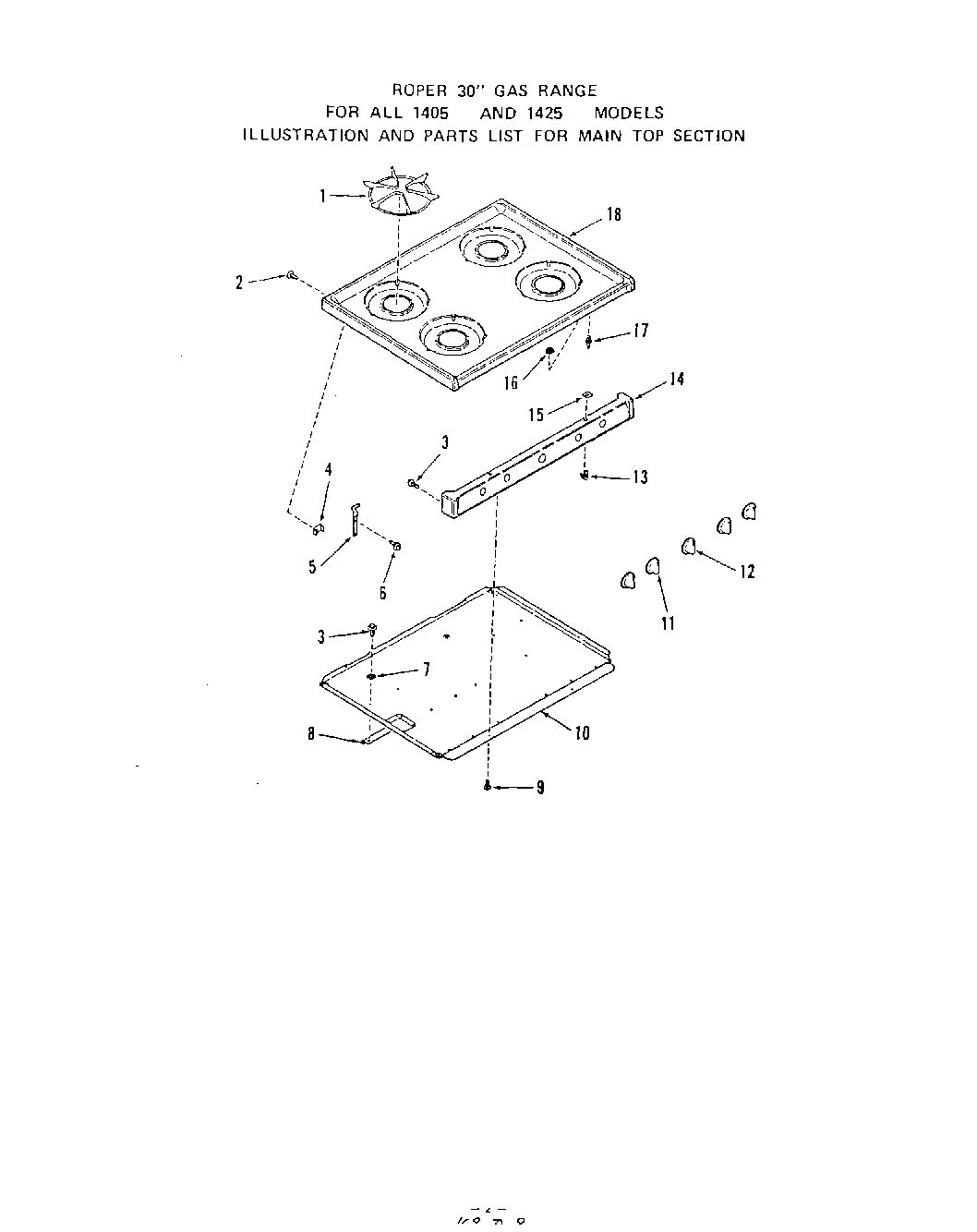

1405^1A 03 – MAIN TOP

Products

Position	Product
1	Top Grate (4 Required)
2	Screw-10-32×1/2“
3	Screw 10-16×7/16“
4	bracket-main top hinge (lt. or rt.)
5	Left
5	Right
6	WPL 321162
7	Washer
8	Front Stiffener-Burner Box Bottom
8	Rear Stiffener-Burner Box Bottom
9	Screw 10-32×3/8“
10	14350A & 14550A Models
10	Burner Box Bottom (All 13052A & 3A Models)
11	Knob-Gas Valve (4 Req)
12	Knob-Thermostat
13	Catch-Main Top Strike (2 Required)
14	Panel-Manifold (White)
14	Manifold Panel (Almond)
14	Manifold Panel (Golden Wheat)
15	Washer
16	Keps Nut 8-32
17	Strike-Main Top (2 Required)
18	Golden Wheat
18	White
18	Almond
