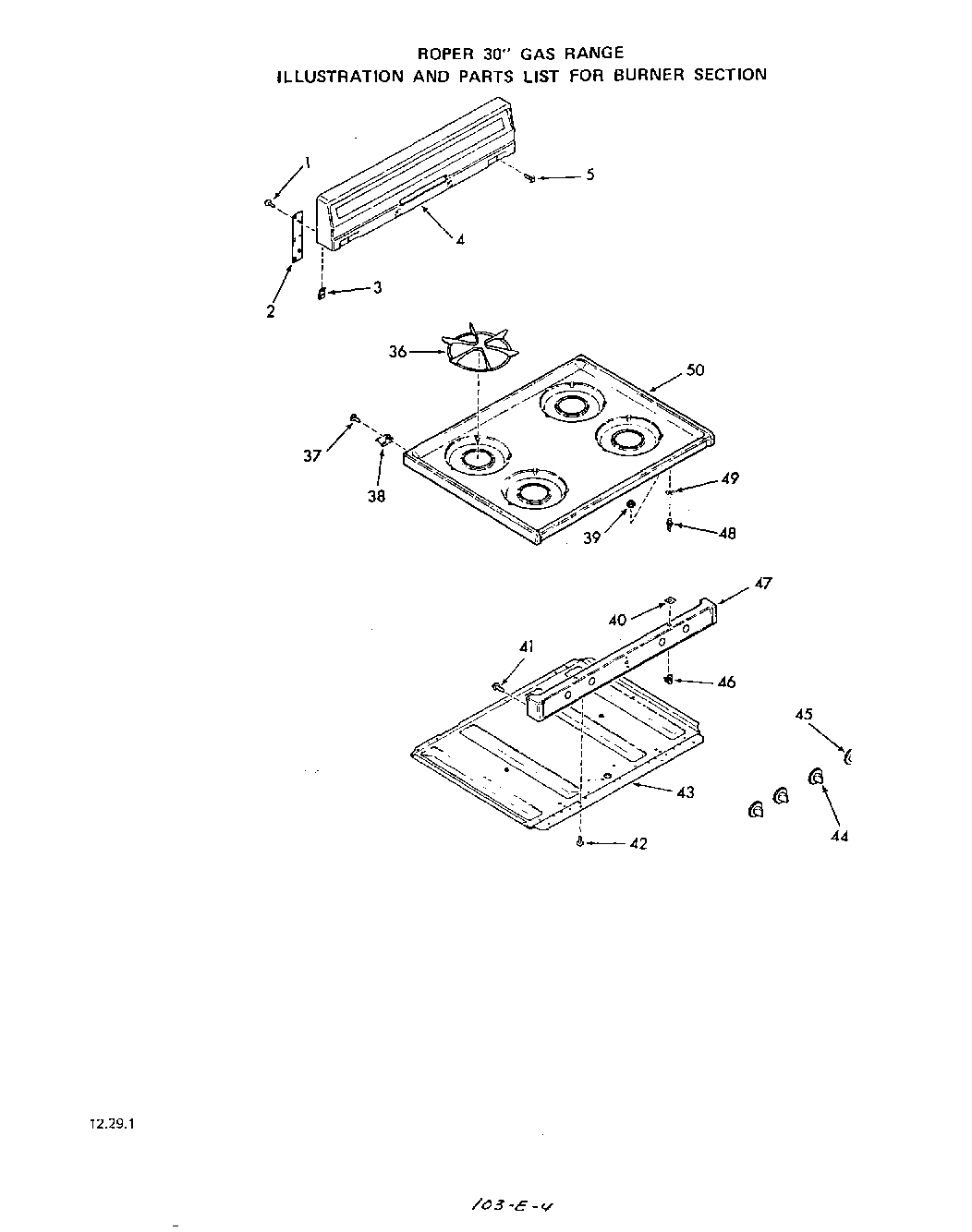

1413^0A 02 – SECTION
Written by
in
1413^0A 02 – SECTION
Products
Position
Product
1
WP112432 Whirlpool Nut Assembly
2
Support-Backguard (Lt. or Rt.)
3
Speed Nut 10 – 32
4
Backguard (Almond)
4
Backguard (White)
36
Top Grate (4 Required)
37
Screw 10-32×7/16“
38
Retainer-Main Top (2 Required)
39
Keps Nut 8-32
40
Washer
41
Screw 10 – 32 x 17/32“
42
Screw 10-32×3/8“
43
Seal, Foam (2)
44
Knob-Thermostat
45
All 14630A Models
46
Catch-Main Top Strike (2 Required)
47
Manifold Panel (White)
47
Manifold Panel (Almond)
48
Strike-Main Top (2 Required)
49
Washer
50
Almond
50
White
←
