1413^0A 03 – BODY

Products

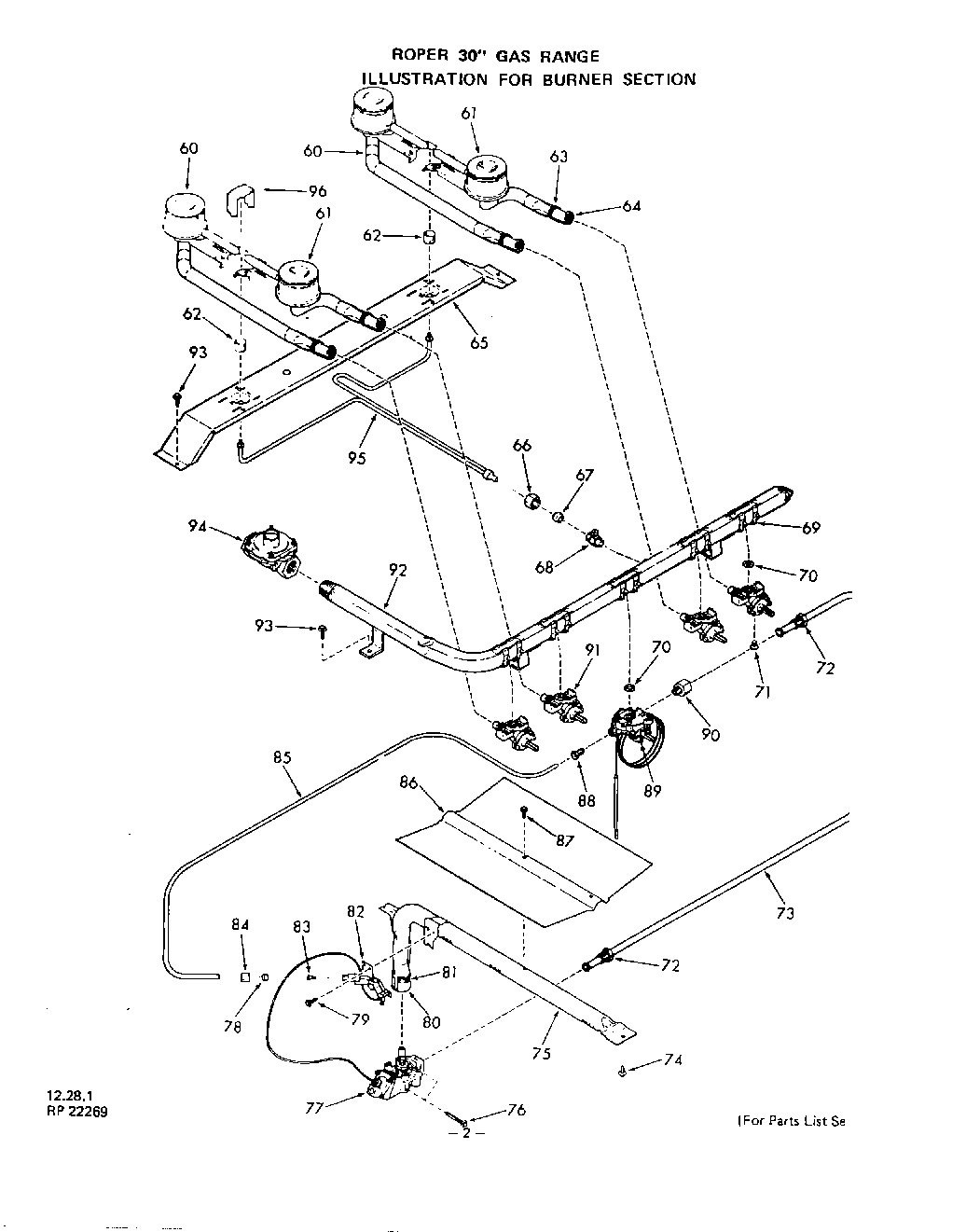

Position	Product
60	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
61	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
62	Pilot Cup (3 Req)
63	Adjustment Screw-Air Shutter
64	Air Shutter
65	Support-Top Burner
66	Compression Nut 1/4“
67	Compression Ball Sleeve 1/4“
68	Filter-Top Pilot
69	Clip (10 Req)
70	Gasket
71	Screw 10-24×3/8“
72	Inverted Nut 3/8“
73	Tubing 3/8“ (Thmst. to Cont. Valve)
75	Oven Burner (Inc`s. 21, 33 & 34)
76	Screw 10-32×2“
77	Oven Control Valve
78	Compression Ball Sleeve 3/16“
79	Screw 10-24×1/4“
80	Aid Shutter
81	Adjustment Screw-Air Shutter
82	Pilot Head (Inc`s. 24)
83	Orifice Cup Only
84	Compression Nut 3/16“
85	Tubing 3/16“ (Thermostat to Pilot)
86	Baffle – Oven Burner
87	WPL 316365
88	Loxit Nut 3/16“
89	Thermostat-Inc. Keys 70 & 90
90	Fitting-Straight 3/8“
91	Gas Valve (4 Required-Inc`s. Key 70)
92	Manifold Pipe
93	WP112432 Whirlpool Nut Assembly
94	Pressure Regulator
95	Pilot Tube (Inc`s. 13 & 14)
96	Top Pilot Shield (3 Req)
