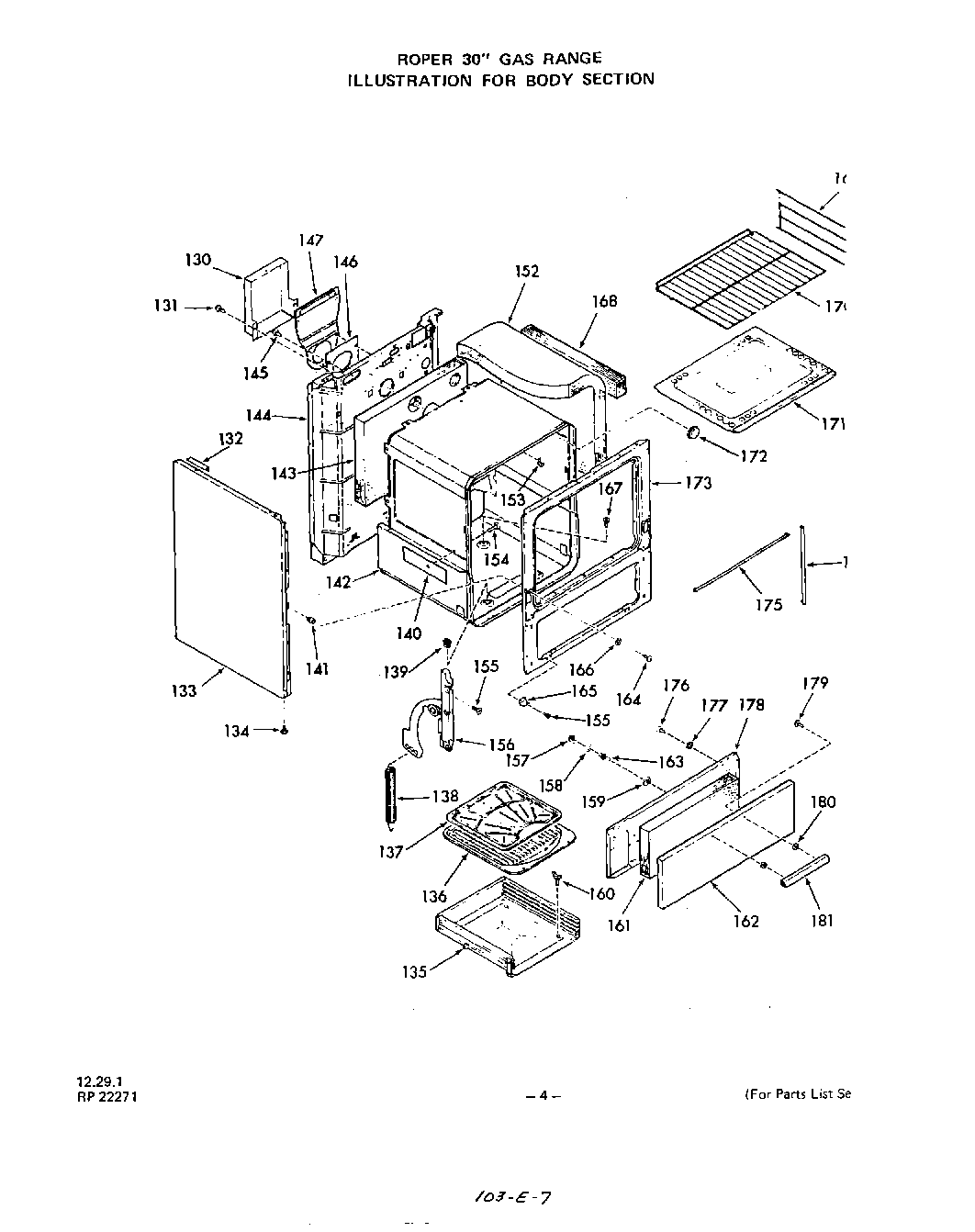

1413^0A 04 – OVEN DOOR

Products

Position	Product
130	Shield – Flue Deflector
131	WP112432 Whirlpool Nut Assembly
132	Spacer-Main Top
133	Body Side (Almond-Left)
133	Body Side (Almond-Right)
133	Body Side (White-Right)
133	Body Side (White-Left)
134	Leg Leveler (4 Required)
135	Broiler Drawer
136	Broiler Pan
137	Broiler Pan Grid
138	Spring-Oven Door (Lt. or Rt.)
139	Nut-Retainer (2 Required)
140	Retainer-Insulation (Rt. or Lt.)
141	Grommet – Screw (8 Req.)
142	Oven Body
143	Insulation – Oven Back
144	Main Back
145	Screw 10 – 32 x 17/32“
146	Gasket-Flue Deflector
147	Flue Deflector
152	Insulation – Oven Top & Sides (1 Piece)
153	Thermostat Bulb Clip (2 Required)
154	Dart-Button Head (2 Required)
155	Screw 10-32 x 5/8“
156	Right
156	Left
157	Keps Nut 8-32
158	Washer
159	Catch-Broiler Door Strike
160	Thumbscrew-Rt. or Lt.
162	Almond
162	W11169039 Whirlpool Dishwasher Dish Rack
163	Strike-Broiler Door
164	WP303896 Whirlpool High Limit Thermostat
165	Hinge-Broiler Door (Lt. or Rt.)
166	Washer
167	Shoulder Screw 10-32×1/2“
168	W10820036 Whirlpool Door Switch Kit
169	WPL 305409
170	WPL 305408
171	WPL 296069
172	WPL 101063
173	WPL 316994
174	WPL 314573
175	WPL 314574
176	Screw 10-32×3/8“
177	Lockwasher
178	WPL 302267
179	WPL 316365
180	spacer-handle
181	Handle-Compartment Door
