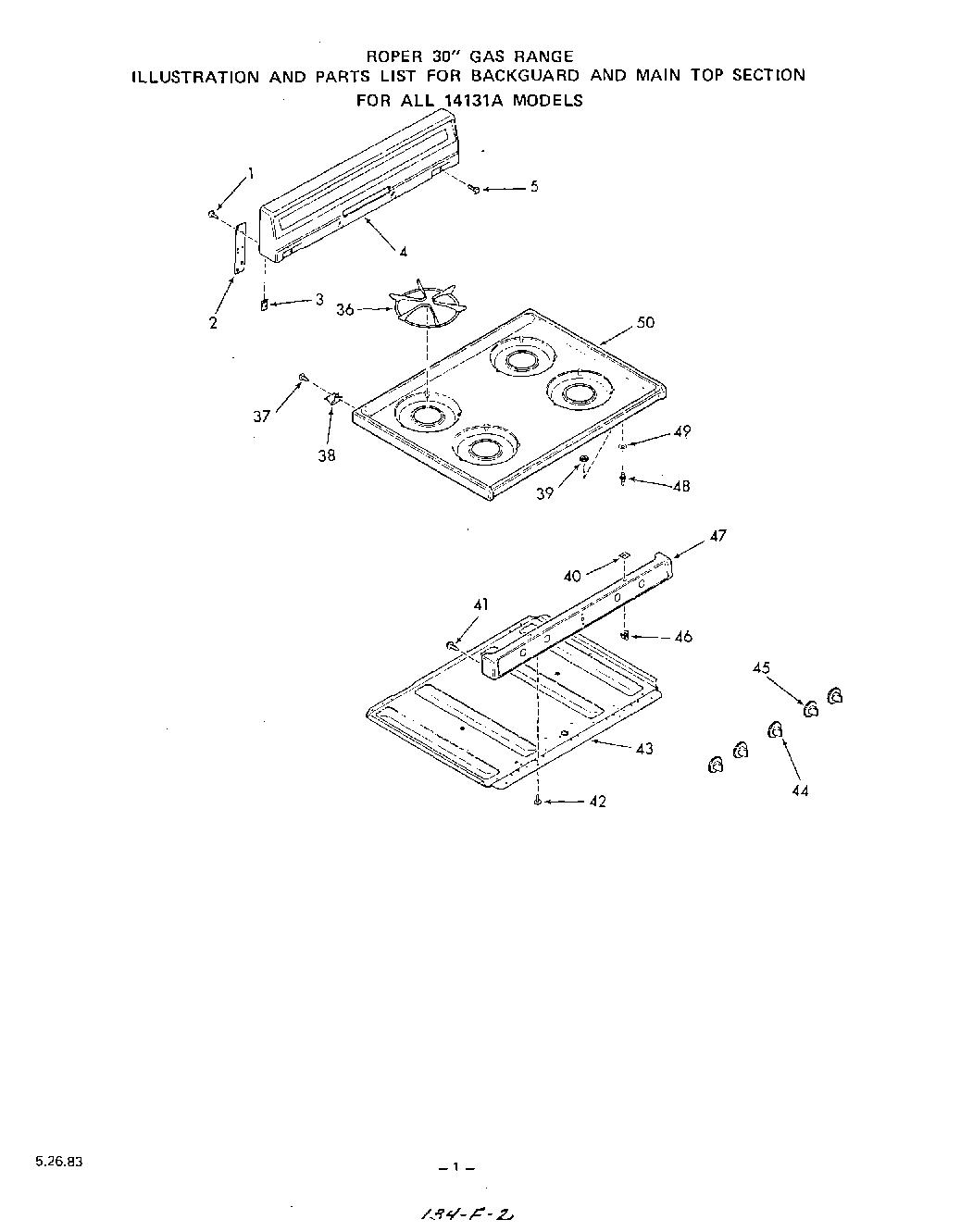

1413^1A 02 – BACKGUARD AND MAIN TOP

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Support-Backguard (Lt. or Rt.)
3	Speed Nut 10 – 32
4	Backguard
4	Golden Wheat
4	Backguard (Almond)
4	Backguard (White)
36	Top Grate (4 Required)
37	Screw 10-32×7/16“
38	Retainer-Main Top (2 Required)
39	Keps Nut 8-32
40	Washer
41	Screw 10 – 32 x 17/32“
42	Screw 10-32×3/8“
43	Seal, Foam (2)
44	Knob-Thermostat
45	All 14630A Models
46	Catch-Main Top Strike (2 Required)
47	Manifold Panel
47	Almond
47	Golden Wheat
47	White
48	Strike-Main Top (2 Required)
49	Washer
50	Golden Wheat
50	Almond
50	White
50	Main Top
