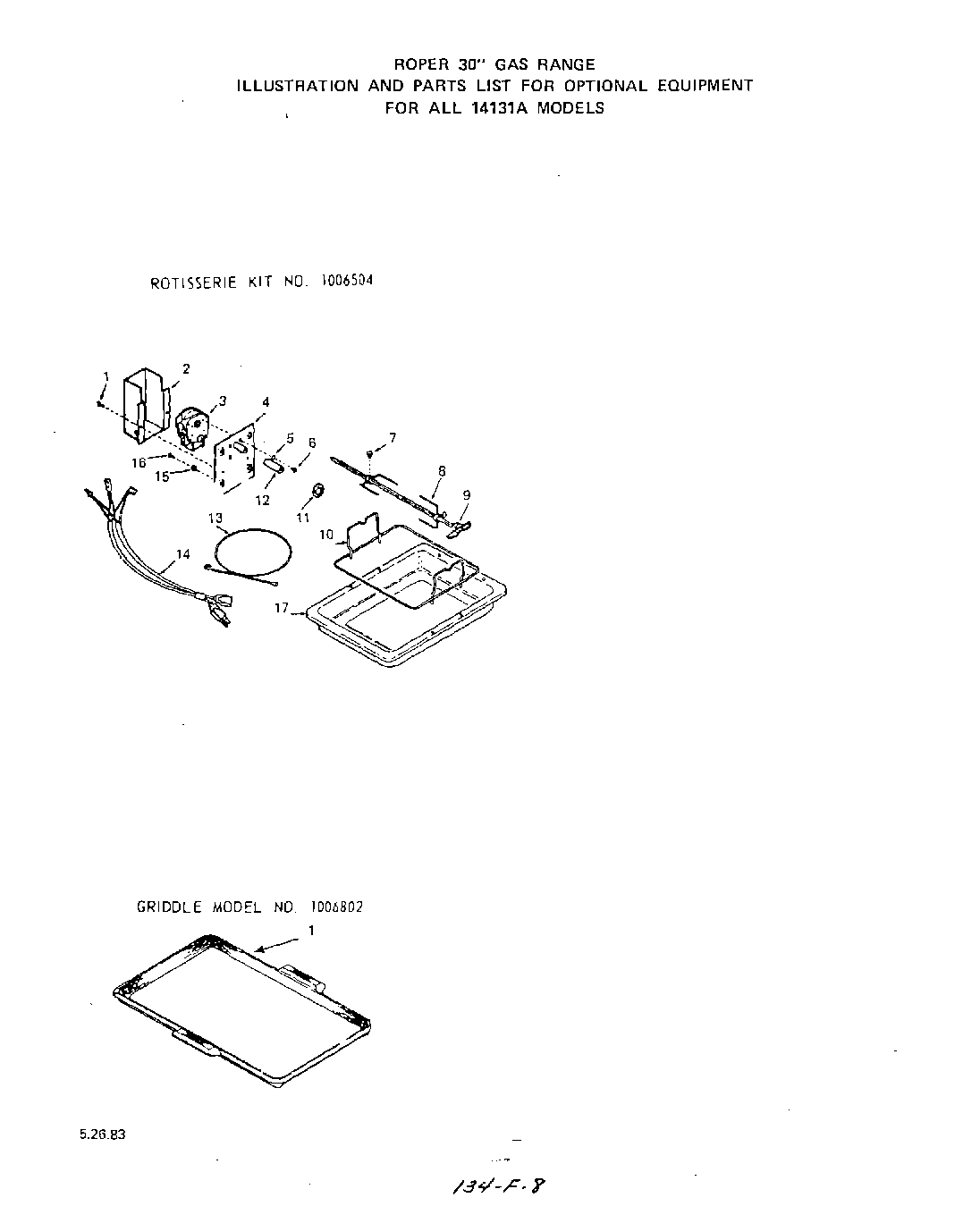

1413^1A 06 – ROTISSERIE KIT, GRIDDLE

Products

Position	Product
	xSwitch (For Key No. 352)
	xParts Not Shown On Illustration
	xInstallation Instructions
1	Set-On-Griddle (Optional)
1	Screw 10 – 32 x 1/4“
2	Cover – Rotisserie Motor
3	Rotisserie Motor
4	Mounting Bracket-Rotisserie Motor
5	Lockwasher 3/16“
6	Screw 8-32×1/4“
7	Thumbscrew
8	Skewer
9	Rotisserie Spit
10	Spit Support
11	Plug Button
12	Guide Extension – Rotisserie Motor
13	Black
13	White
13	Black With 1/4“ Faston & Eyelet Terminals
13	Fixture Wire Lead With 1/4“ Faston & Piggyback Terminals
13	White
14	Rotisserie Cord
15	Lockwasher
16	Screw 10-32 x 1/2“
17	Rotisserie Pan
