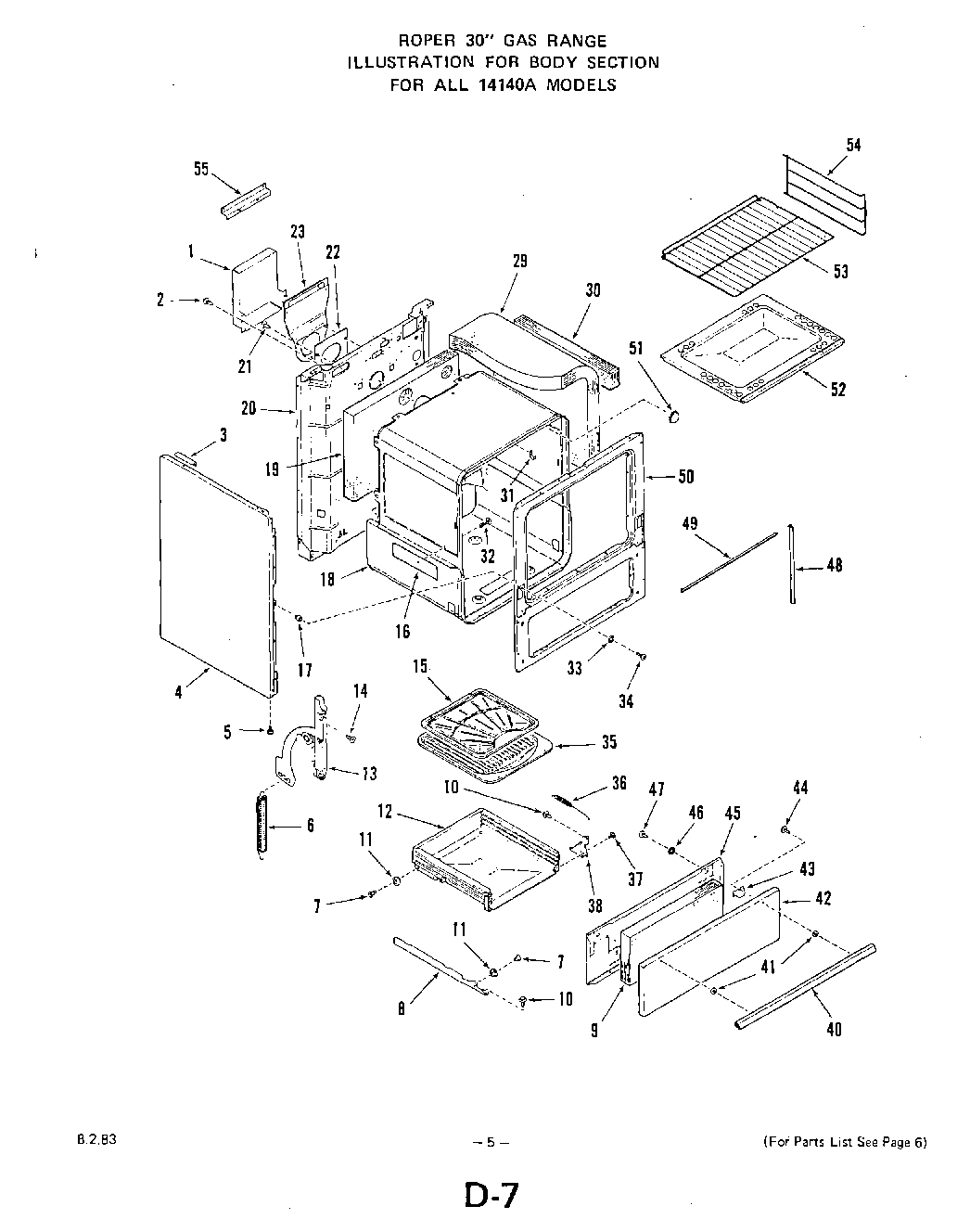

| 1 | Shield - Flue Deflector |
| 3 | Spacer-Main Top |
| 4 | Almond-Left |
| 4 | Almond-Right |
| 4 | Wheat-Left |
| 4 | Wheat-Right |
| 4 | Body Side |
| 4 | White-Left |
| 4 | White-Right |
| 5 | Leg Leveler (4 Required) |
| 6 | Spring-Oven Door (Lt. or Rt.) |
| 7 | Shoulder Rivet |
| 8 | WP691371 Whirlpool Belt |
| 8 | Right |
| 8 | Broiler Drawer Guide (Inc`s. 7 & 11) |
| 10 | WP112432 Whirlpool Nut Assembly |
| 11 | Roller |
| 12 | Broiler Drawer (Inc`s. 136 & 140) |
| 13 | Right |
| 13 | Left |
| 13 | Hinge-Oven Door |
| 14 | Screw 10-32 x 5/8`` |
| 15 | Broiler Pan Grid |
| 16 | Retainer-Insulation (Rt. or Lt.) |
| 17 | Grommet - Screw (8 Req.) |
| 18 | Oven Body |
| 19 | Insulation - Oven Back |
| 20 | Main Back |
| 21 | Screw 10 - 32 x 17/32`` |
| 22 | Gasket-Flue Deflector |
| 23 | Flue Deflector |
| 29 | Insulation - Oven Top & Sides (1 Piece) |
| 30 | W10820036 Whirlpool Door Switch Kit |
| 31 | Thermostat Bulb Clip (2 Required) |
| 32 | Dart-Button Head (2 Required) |
| 33 | Washer |
| 34 | WP303896 Whirlpool High Limit Thermostat |
| 35 | Broiler Pan |
| 36 | Spring - Broiler Door (Rt or Lt) |
| 37 | Shoulder Rivet |
| 38 | Left |
| 38 | Right |
| 38 | Hinge-Broiler Door |
| 40 | Handle-Broiler Door |
| 41 | spacer-handle |
| 42 | knob, control |
| 42 | Front Panel-Broiler |
| 42 | Front Panel-Broiler Door |
| 42 | WPL 308977 |
| 43 | Spacer-Broiler Doo |
| 44 | WPL 316365 |
| 45 | WPL 296332 |
| 46 | WPL 21067 |
| 47 | Screw 10-32x3/8`` |
| 48 | WPL 314573 |
| 49 | WPL 314574 |
| 50 | WPL 316994 |
| 51 | WPL 101063 |
| 52 | WPL 296069 |
| 53 | WPL 305408 |
| 54 | WPL 305409 |
| 55 | Support-Flue Deflector |
