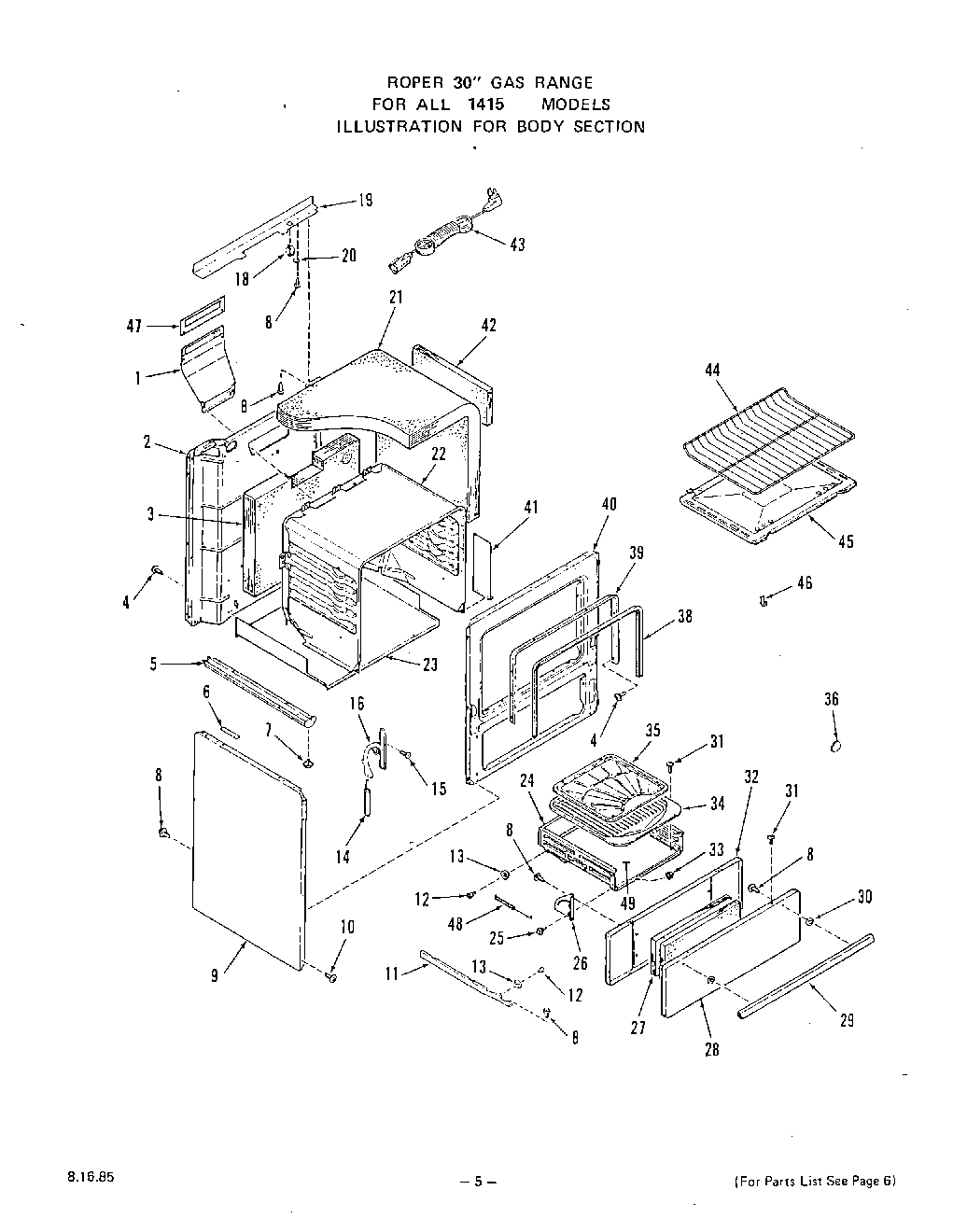

1415^0A 05 – BODY

Products

Position	Product
1	Flue Deflector
2	Back-Main
3	Insulation-Oven Back
5	Base w/Levelers (Lt. or Rt.)
6	Spacer-Main Top (2 Req)
7	Leg Leveler (4 Req)
8	Screw 10-16×7/16“
9	White
9	Body Side (Lt. or Rt.)
9	Almond
10	Screw 10ABx1/2“
11	Broiler Drawer Guide (Inc`s. 12, 13)
11	Right
11	WP691371 Whirlpool Belt
12	Shoulder Rivet
13	Roller
14	Spring-Oven Door (Lt. or Rt.)
15	Screw 10-32 x 5/8“
16	Hinge-Oven Door (Right)
16	Hinge-Oven Door (Left)
16	Hinge-Oven Door
18	Disconnect
19	Cover-Backguard Bottom Wire
20	Clip
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body (14451A Models)
22	Oven Body (14450A Models)
22	Oven Body
23	Bottom-Main
24	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
24	Drawer-Broiler (Inc`s. 12,13) (14450A Models)
24	Drawer-Broiler (Inc`s. 12, 13)
25	Bolt-Shoulder
26	Hinge-Broiler Drawer
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
28	Front Panel-Broiler Door
28	White
28	Almond
29	Handle-Broiler Door
30	spacer-handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door
32	Lining-Broiler Door (14451A Models)
32	Lining-Broiler Door (14450A Models)
33	Keps Nut 10-24
34	Pan-Broiler
34	Pan-Broiler (14451A M
34	Broiler Pan
35	WPL 331588
35	Grid-Broiler Pan
35	Broiler Pan Grid
36	WPL 101063
38	WPL 326047
39	main chassis (almond)
40	Front Frame
40	WPL 326042
40	WPL 331584
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 327083
45	WPL 331539
45	Bottom-Oven
46	Thermostat Bulb Clip (2 Required)
47	WPL 329314
48	WPL 327481
49	WPL 329862
49	WPL 331554
49	WPL ARI8198A80
