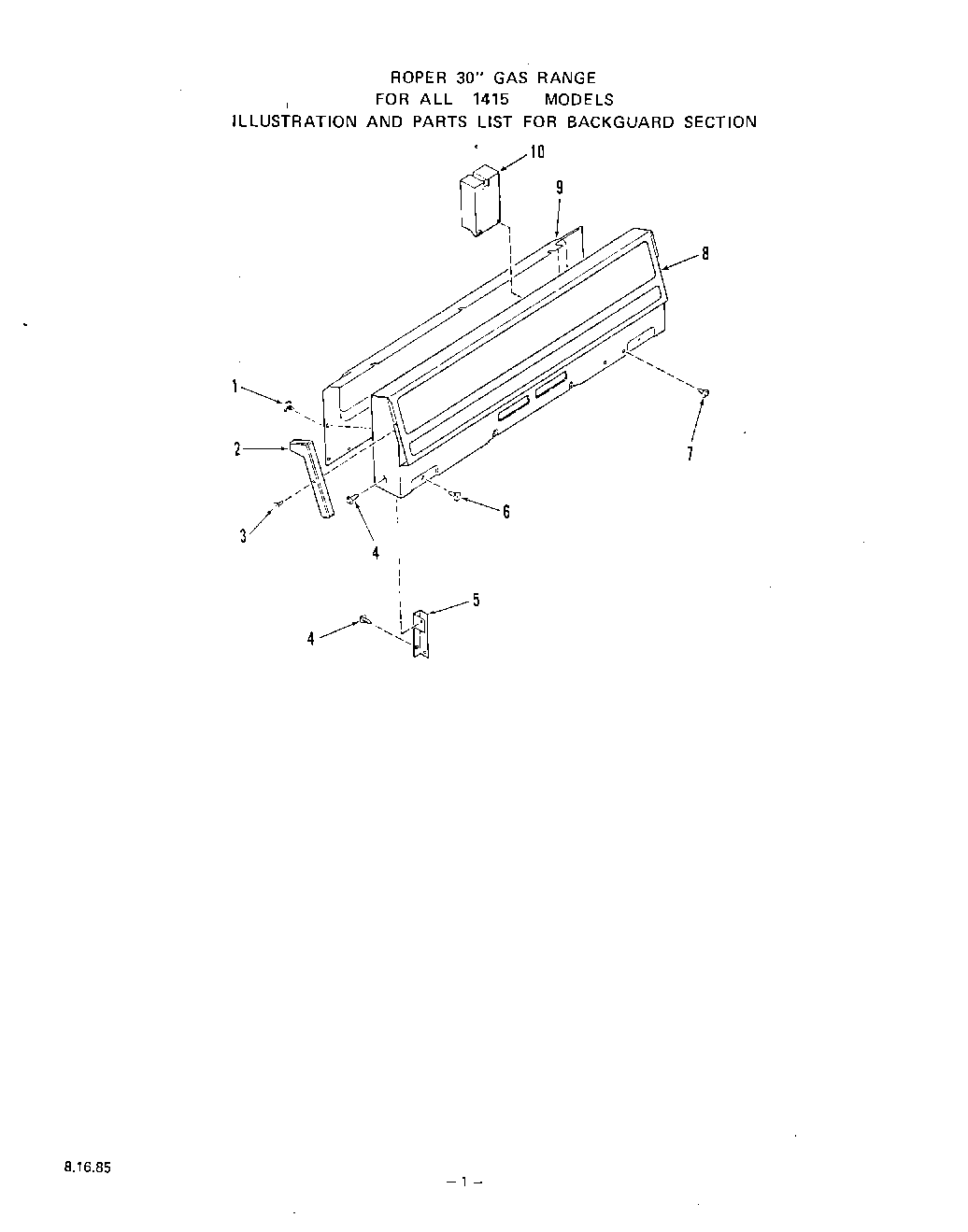

1415W1A 02 – BACKGUARD

Products

PositionProduct
1Clip
2End Cap
2Left
2Right
3Screw 6-20×3/8“
4Screw 10-16×7/16“
5Support-Backguard (Left)
5Support-Backguard (Right)
5Support-Backguard
6Screw 10ABx1/2“
7Screw 13-16 x 1/2“
8Crosstie
9Wire Cover-Backguard
10Module – Spark Igniter
