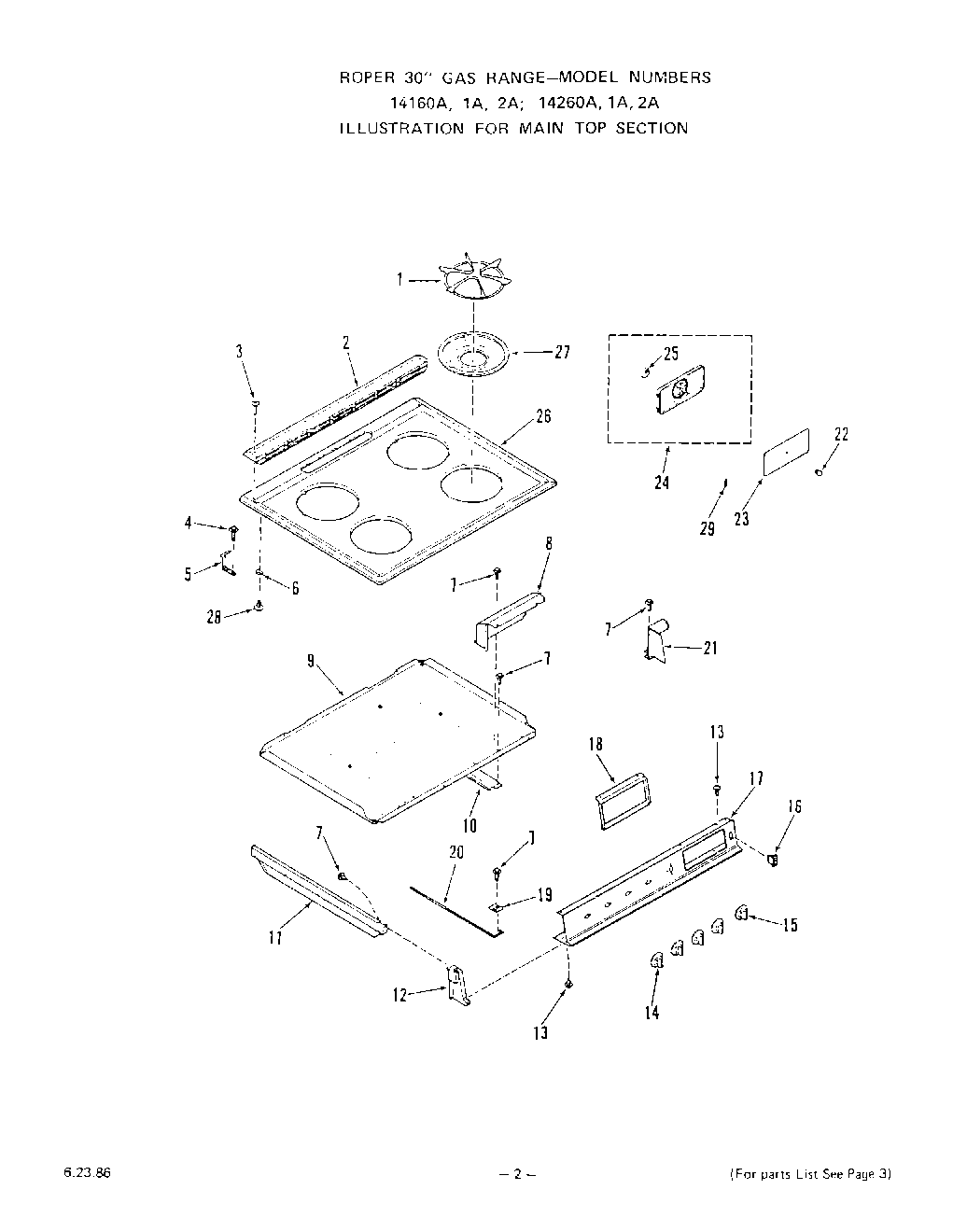

| WPL 335188 |
| 1 | Top Grate (4 Required) |
| 2 | Cover-Vent |
| 3 | Screw 6-32 |
| 5 | Hinge-Main Top (Right 1456X0A Models) |
| 5 | Hinge-Main Top (Left 1456X0A Models) |
| 5 | Hinge-Main Top (Left) |
| 5 | Hinge-Main Top (Right) |
| 6 | Bracket-Hinge |
| 7 | Screw 10-16x7/16`` |
| 8 | Cover-Wire |
| 9 | Burner Box Bottom |
| 10 | Stiffener-Burner Box Bottom |
| 11 | Extension-Burner Box Side (1456X0A Models) |
| 11 | Extension-Burner Box Side |
| 12 | End Cap-Manifold Panel (Left) |
| 12 | End Cap-Manifold Panel (Right) |
| 13 | Screw-10-32x1/2`` |
| 14 | Knob-Gas Valve (4 Req) |
| 15 | Knob-Thermostat |
| 16 | Switch-Oven Light |
| 16 | Switch-Oven Light (1456X0A Models) |
| 17 | Manifold Panel |
| 18 | Bracket-Clock |
| 19 | Clamp |
| 20 | Support Rod-Main Top |
| 22 | Knob-Clock (Start & Stop Time) |
| 23 | Clock Glass |
| 24 | 22042A Models |
| 25 | Clock Motor |
| 26 | Main Top (1456X0A Models) |
| 26 | Main Top (Chrome) |
| 26 | Main Top (White) |
| 26 | Top-Main (Almond 1416L0A Models) |
| 26 | Top-Main (White 1416W0A Models) |
| 26 | Main Top (Almond) |
| 27 | Aeration Pan 15252A, 3A Models |
| 28 | Screw 10-32x5/16`` |
| 29 | Clip-Clock Bezel |
| 29 | 14160A, 1A, 14260 |
| 29 | WPL 335204 |
