1416^0A 05 – DOOR

Products

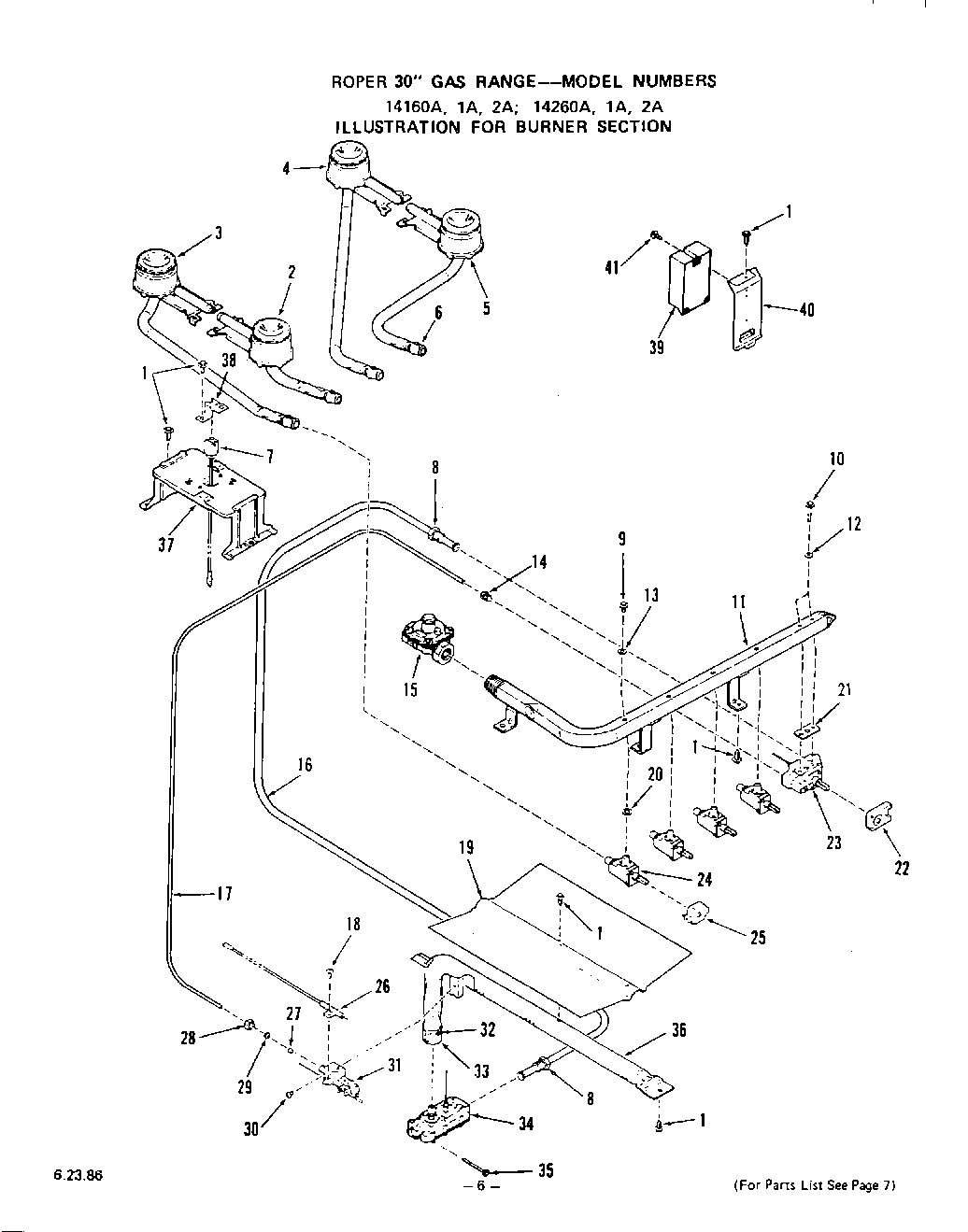

Position	Product
1	Screw 10-16×7/16“
2	Burner-Top Front (Inc.`sA) (Left)
3	Burner-Top Rear (Inc`s. 4) (Left)
4	Burner-Top Rear (Inc`s. 4) (Right)
5	Burner-Top Front (Inc.`sA) (Right)
6	Air Shutter
7	Panel, Side L.H. (Toast)
7	Electrode-Spark Igniter (Left)
8	G.M. Inverted Nut 3/8“
9	Mounting Screw (Inc`s 86)
10	Mounting Screw (2 Req. for 114)
11	Pipe-Manifold
12	Gasket (For 83)
13	Gasket (For 81)
14	Loxit Nut 3/16“
15	Pressure Regulator
16	Tubing 3/8“
17	WP3149400 Whirlpool Oven Infinite Switch
18	Screw 6Ax3/8“
19	Baffle – Oven Burner
20	Silicone Rubber Gasket
21	Silicone Rubber Gasket
22	WPL 318432
23	Oven Thermostat (Inc`s. 21)
24	Gas Valve (4 Req, Inc`s 32)
25	Panel, Side L.H. (White)
26	Electrode-Oven Spark Igniter
27	Orifice Cup Only (For 94)
28	Compression Nut 3/16“
29	Compression Ball Sleeve 3/16“
30	Screw 10-24×1/4“
31	Pilot Only (Inc`s 90)
33	Air Shutter
34	Valve-Safety
35	Screw 10-32 x 2“
36	Oven Burner (Inc`s. 19, 32 & 33)
37	Support-Top Burner (Rt. or Lt.)
38	panel, side l.h. (almond panel, side r.h.)
39	Module – Spark Igniter
40	Support-Module
41	Screw 13-16 x 1/2“
