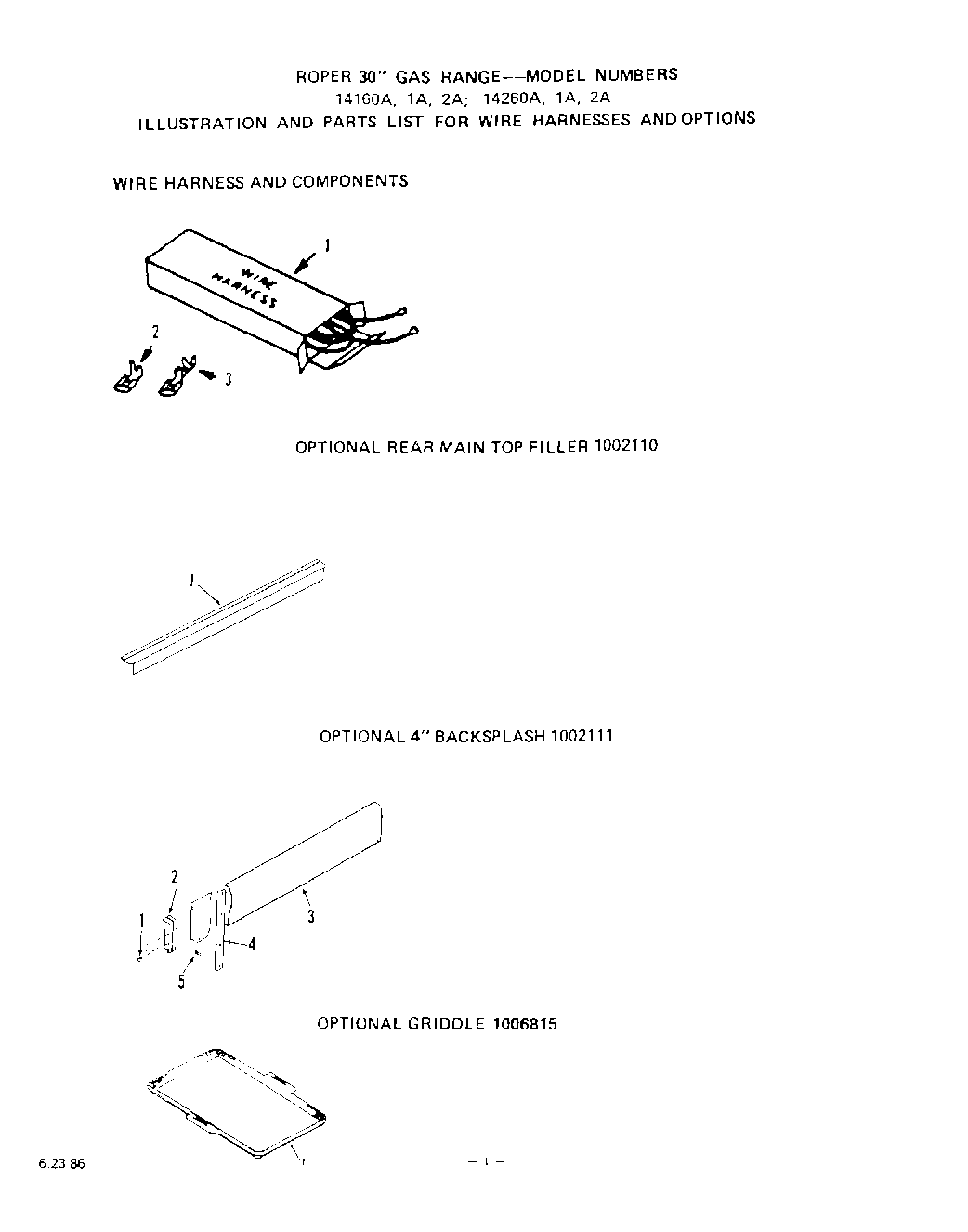

1416^1A 02 – MAIN TOP

Products

Position	Product
B5	Screw 10-16×7/16“
	xParts Not Shown On Illustration
C1	Set-On Griddle
B4	Backplash Support
B3	Backsplash
B2	End Cap
	xParts Not Shown On Illustration
A1	Filler-Main Top Rear
	xSheet Instruction
	xInstructions Installation
	Seal, Ring Access Valve (20-Pack)
B1	Screw 6-32×3/8“
1	Wire Harness (Module)
1	Wire Harness (Oven Light)
1	Wire Harness (Switch-Gas Valve)
2	Flag Terminal
3	Faston Terminal (3/16“)
3	Faston Terminal (.110-.020 (Switch Lead))
3	Faston Terminal (.110-.032 (Igniter Lead))
3	Faston Terminal
