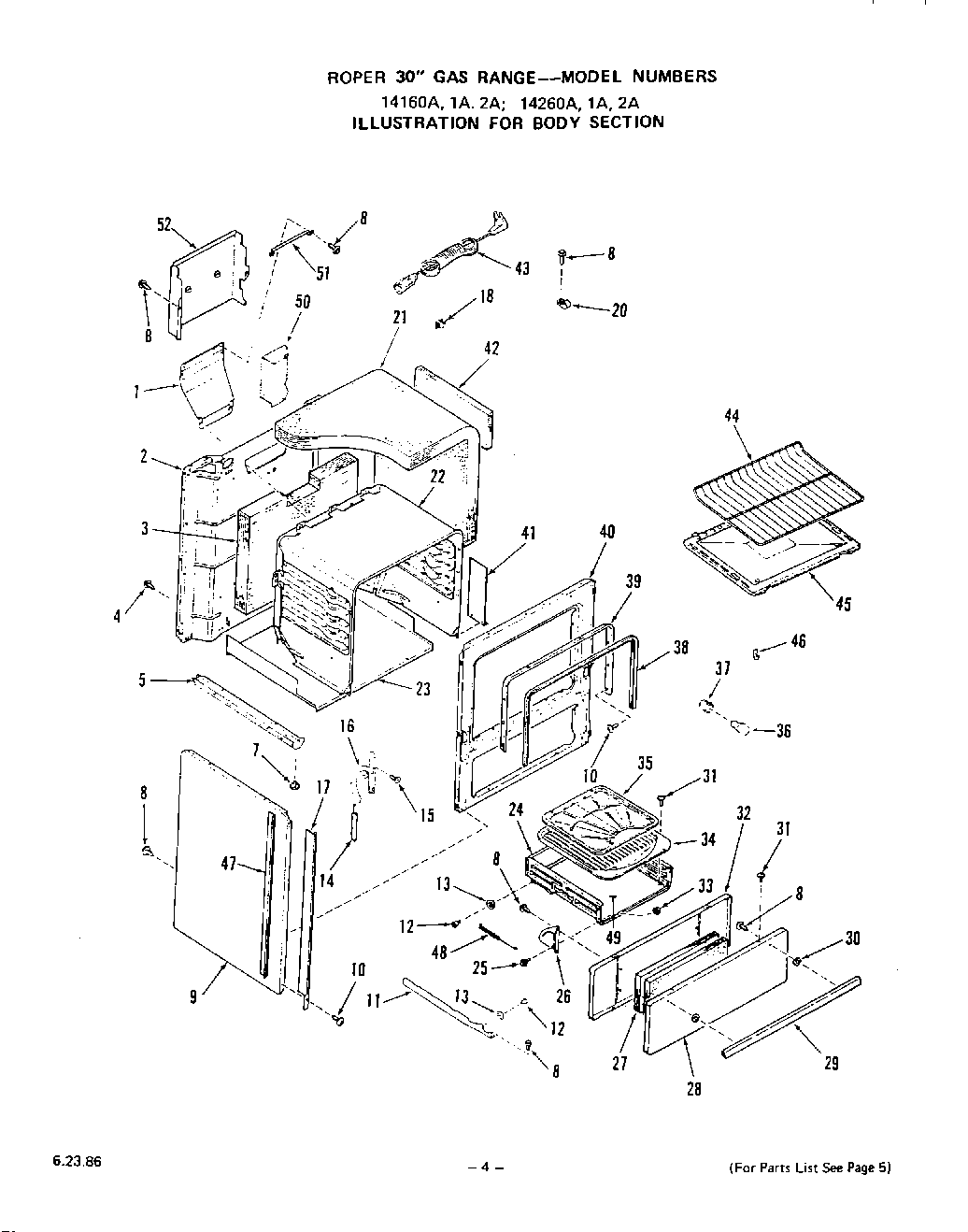

1416^1A 04 – BURNER

Products

Position	Product
1	Flue Deflector
2	Support, Frame
3	Insulation-Oven Back
4	WP112432 Whirlpool Nut Assembly
5	24062A, 24262A Models
5	Base w/Levelers-Lt. or Rt.
6	Spacer-Main Top
7	Leg Leveler (4 Req)
8	Screw 10-16×7/16“
9	Body Side (Lt. or Rt.) (Black)
10	Screw 10ABx1/2“
11	Right
11	WP691371 Whirlpool Belt
12	Shoulder Rivet
13	Roller
14	Spring-Oven Door (Lt. or Rt.)
15	Screw 10-32 x 5/8“
16	Hinge-Oven Door (Right)
16	Hinge-Oven Door (Left)
17	Trim-Side (Right)
17	Trim-Side (Left)
18	Disconnect
19	Wire Cover Bottom-Backguard
20	Clip
21	Insulation-Oven Top & Sides (1 Piece)
22	Oven Body
22	Oven Body (14451A Models)
23	Bottom-Main
24	Drawer-Broiler (Inc`s. 12,13) (14451A Models)
25	Bolt-Shoulder
26	Hinge-Broiler Drawer (Lt. or Rt.) (Left)
26	Hinge-Broiler Drawer (Lt. or Rt.) (Right)
28	Front Panel-Storage Door
29	Handle-Broiler Door
30	spacer-handle
31	Screw-10-32×1/2“
32	Lining-Broiler Door (14451A Models)
33	Keps Nut 10-24
34	Pan-Broiler (14451A M
35	WPL 331588
36	Oven Lamp Bulb
37	Holder-Oven Lamp Bulb
38	WPL 326047
39	main chassis (almond)
40	Front Frame
41	WPL 328984
42	W10820036 Whirlpool Door Switch Kit
43	Range Service Cord
44	WPL 326068
45	WPL 327084
45	WPL 331539
46	Clip-Thermotat Bulb (2 Req)
47	Extension Side Trim
48	WPL 327481
49	WPL 331554
50	WPL 333657
51	WPL 331815
52	Shield-Flue Deflector
