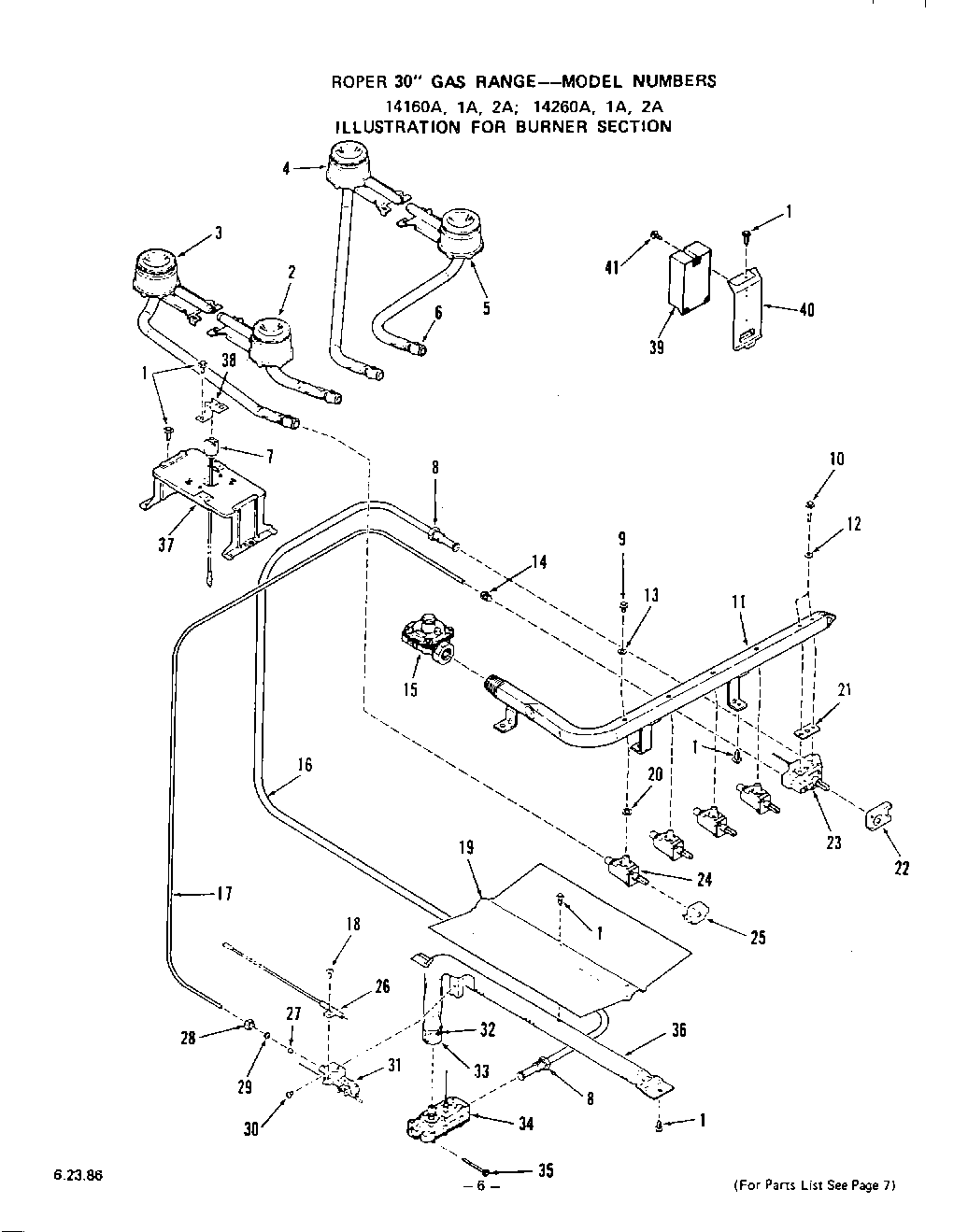

| 1 | Screw 10-16x7/16`` |
| 2 | Burner-Top Front (Inc.`sA) (Left) |
| 3 | Burner-Top Rear (Inc`s. 4) (Left) |
| 4 | Burner-Top Rear (Inc`s. 4) (Right) |
| 5 | Burner-Top Front (Inc.`sA) (Right) |
| 6 | Air Shutter |
| 7 | Panel, Side L.H. (Toast) |
| 7 | Electrode-Spark Igniter (Left) |
| 8 | G.M. Inverted Nut 3/8`` |
| 9 | Mounting Screw (Inc`s 86) |
| 10 | Mounting Screw (2 Req. for 114) |
| 11 | Pipe-Manifold |
| 12 | Gasket (For 83) |
| 13 | Gasket (For 81) |
| 14 | Loxit Nut 3/16`` |
| 15 | Pressure Regulator |
| 16 | Tubing 3/8`` |
| 17 | WP3149400 Whirlpool Oven Infinite Switch |
| 18 | Screw 6Ax3/8`` |
| 19 | Baffle - Oven Burner |
| 20 | Silicone Rubber Gasket |
| 21 | Silicone Rubber Gasket |
| 22 | WPL 318432 |
| 23 | Oven Thermostat (Inc`s. 21) |
| 24 | Gas Valve (4 Req, Inc`s 32) |
| 25 | Panel, Side L.H. (White) |
| 26 | Electrode-Oven Spark Igniter |
| 27 | Orifice Cup Only (For 94) |
| 28 | Compression Nut 3/16`` |
| 29 | Compression Ball Sleeve 3/16`` |
| 30 | Screw 10-24x1/4`` |
| 31 | Pilot Only (Inc`s 90) |
| 33 | Air Shutter |
| 34 | Valve-Safety |
| 35 | Screw 10-32 x 2`` |
| 36 | Oven Burner (Inc`s. 19, 32 & 33) |
| 37 | Support-Top Burner (Rt. or Lt.) |
| 38 | panel, side l.h. (almond panel, side r.h.) |
| 39 | Module - Spark Igniter |
| 40 | Support-Module |
| 41 | Screw 13-16 x 1/2`` |
