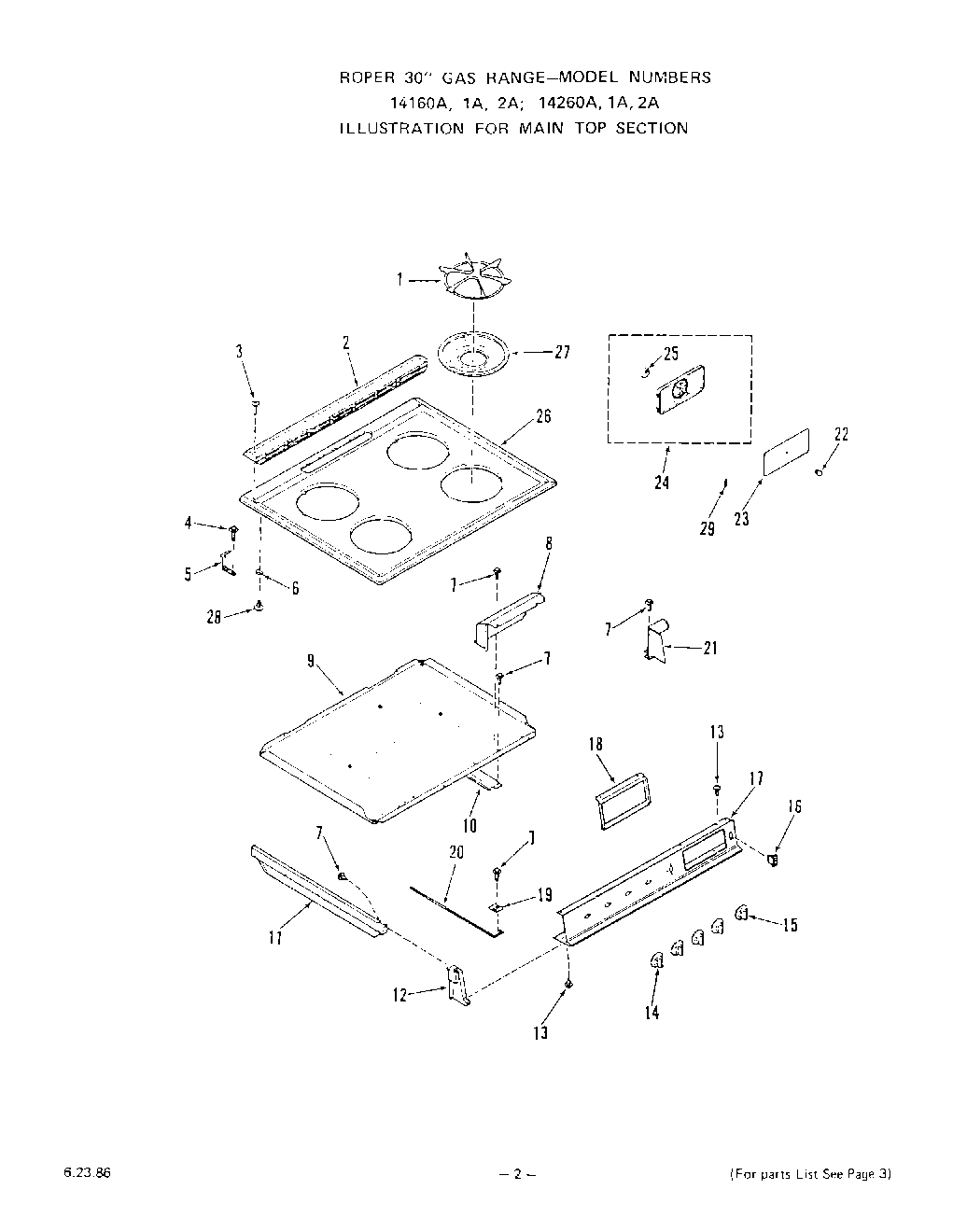

1416W0A 03 – BODY

Products

Position	Product
	WPL 335188
1	Top Grate (4 Required)
2	Cover-Vent
3	Screw 6-32
5	Hinge-Main Top (Right 1456X0A Models)
5	Hinge-Main Top (Left 1456X0A Models)
5	Hinge-Main Top (Left)
5	Hinge-Main Top (Right)
6	Bracket-Hinge
7	Screw 10-16×7/16“
8	Cover-Wire
9	Burner Box Bottom
10	Stiffener-Burner Box Bottom
11	Extension-Burner Box Side (1456X0A Models)
11	Extension-Burner Box Side
12	End Cap-Manifold Panel (Left)
12	End Cap-Manifold Panel (Right)
13	Screw-10-32×1/2“
14	Knob-Gas Valve (4 Req)
15	Knob-Thermostat
16	Switch-Oven Light
16	Switch-Oven Light (1456X0A Models)
17	Manifold Panel
18	Bracket-Clock
19	Clamp
20	Support Rod-Main Top
22	Knob-Clock (Start & Stop Time)
23	Clock Glass
24	22042A Models
25	Clock Motor
26	Main Top (1456X0A Models)
26	Main Top (Chrome)
26	Main Top (White)
26	Top-Main (Almond 1416L0A Models)
26	Top-Main (White 1416W0A Models)
26	Main Top (Almond)
27	Aeration Pan 15252A, 3A Models
28	Screw 10-32×5/16“
29	Clip-Clock Bezel
29	14160A, 1A, 14260
29	WPL 335204
