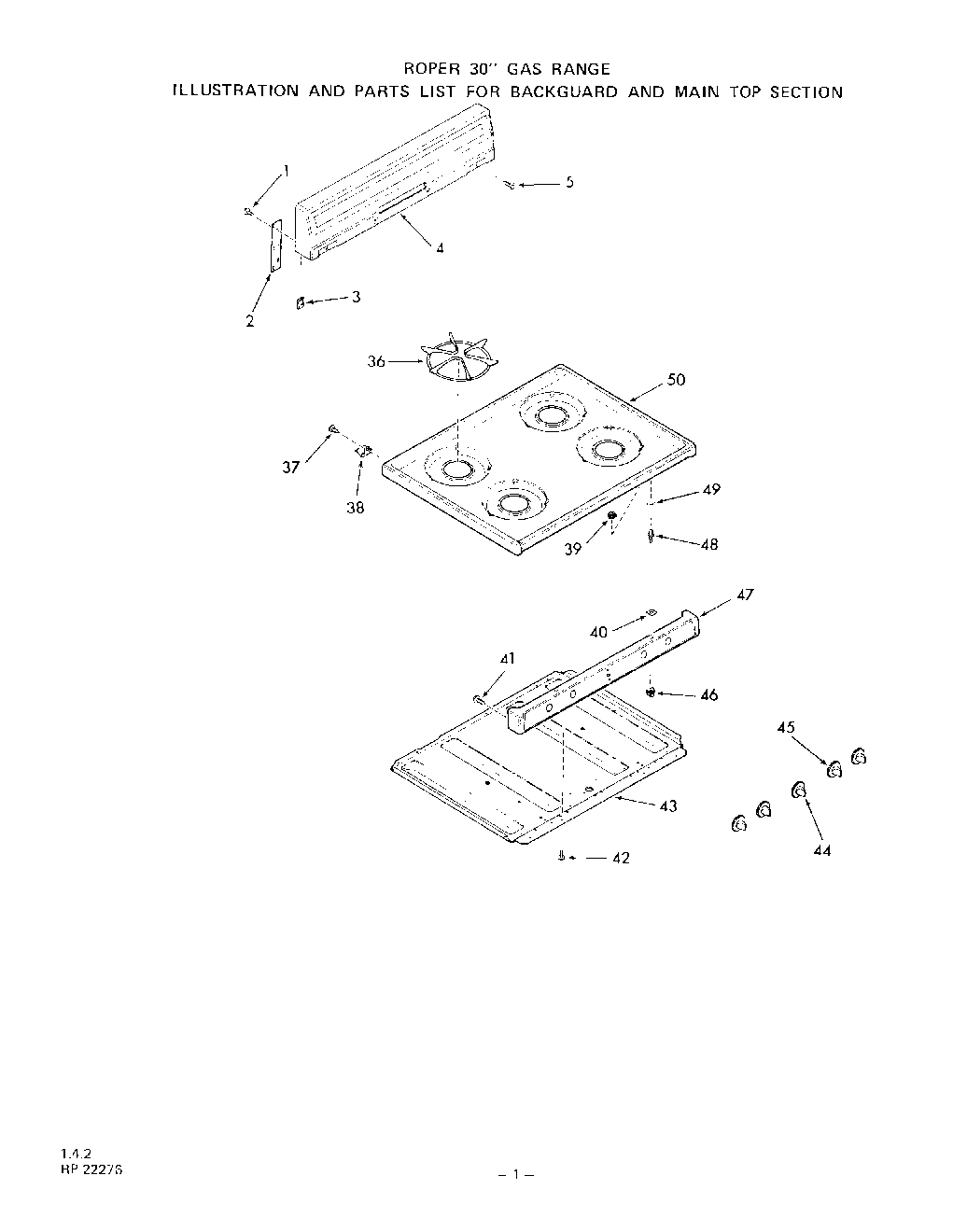

| 1 | WP112432 Whirlpool Nut Assembly |
| 2 | Support-Backguard (Lt. or Rt.) |
| 3 | Speed Nut 10 - 32 |
| 4 | Backguard (White) |
| 4 | Backguard (Almond) |
| 36 | Top Grate (4 Required) |
| 37 | Screw 10-32x7/16`` |
| 38 | Retainer-Main Top (2 Required) |
| 39 | Keps Nut 8-32 |
| 40 | Washer |
| 41 | Screw 10 - 32 x 17/32`` |
| 42 | Screw 10-32x3/8`` |
| 43 | Burner Box Bottom |
| 44 | All 14630A Models |
| 45 | All 14630A Models |
| 46 | Catch-Main Top Strike (2 Required) |
| 47 | Manifold Panel (White) |
| 47 | Manifold Panel (Almond) |
| 48 | Strike-Main Top (2 Required) |
| 49 | Washer |
| 50 | Almond |
| 50 | White |
