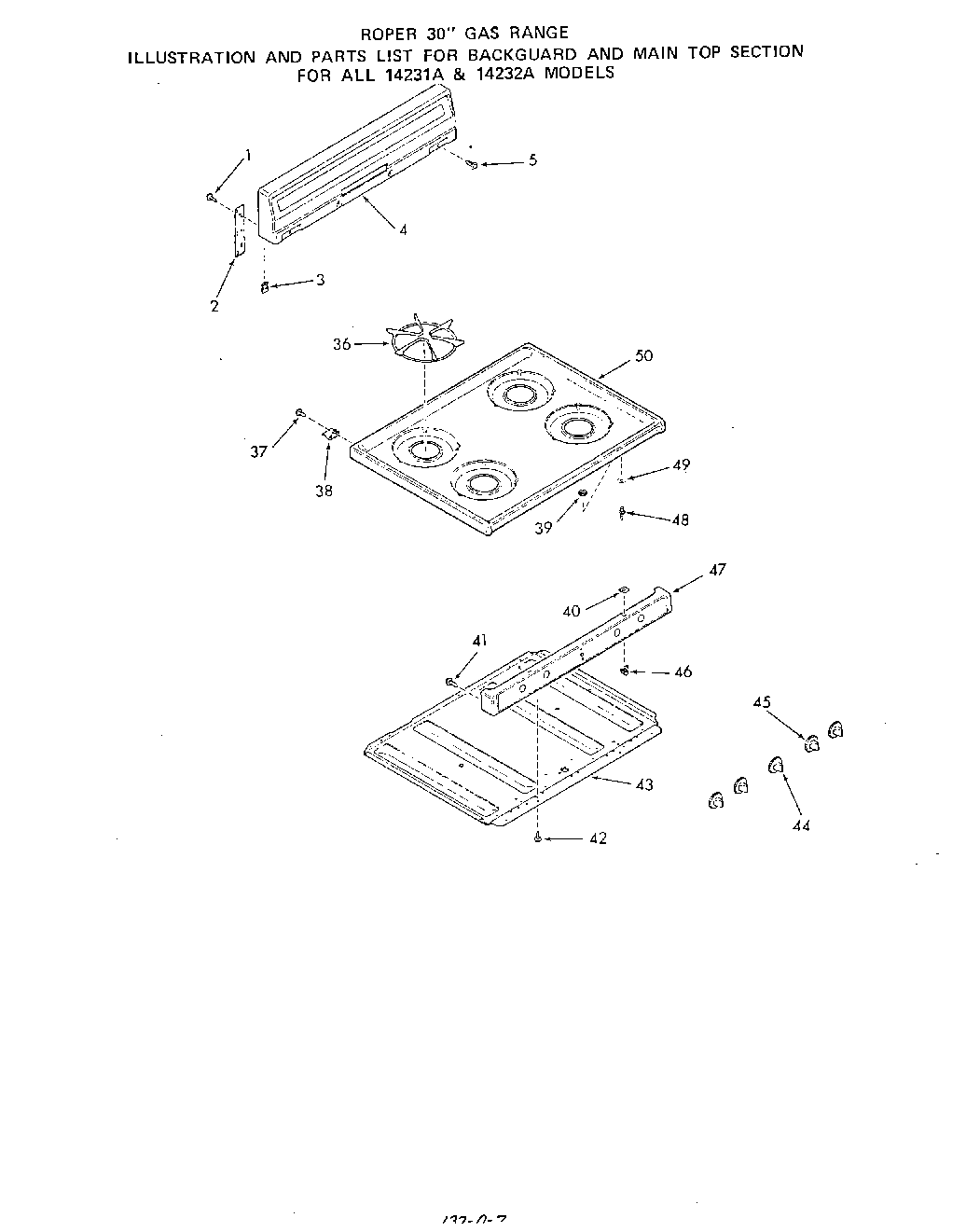

1423^1A 02 – BACKGUARD AND MAIN TOP

Products

Position	Product
1	WP112432 Whirlpool Nut Assembly
2	Support-Backguard (Lt. or Rt.)
3	Speed Nut 10 - 32
4	White
4	Backguard
4	Almond
36	Top Grate (4 Required)
37	Screw 10-32x7/16``
38	Retainer-Main Top (2 Required)
39	Keps Nut 8-32
40	Washer
41	Screw 10 - 32 x 17/32``
42	Screw 10-32x3/8``
43	Burner Box Bottom
44	All 14630A Models
45	All 14630A Models
46	Catch-Main Top Strike (2 Required)
47	White
47	Almond
47	Manifold Panel
48	Strike-Main Top (2 Required)
49	Washer
50	White
50	Almond
50	Main Top
