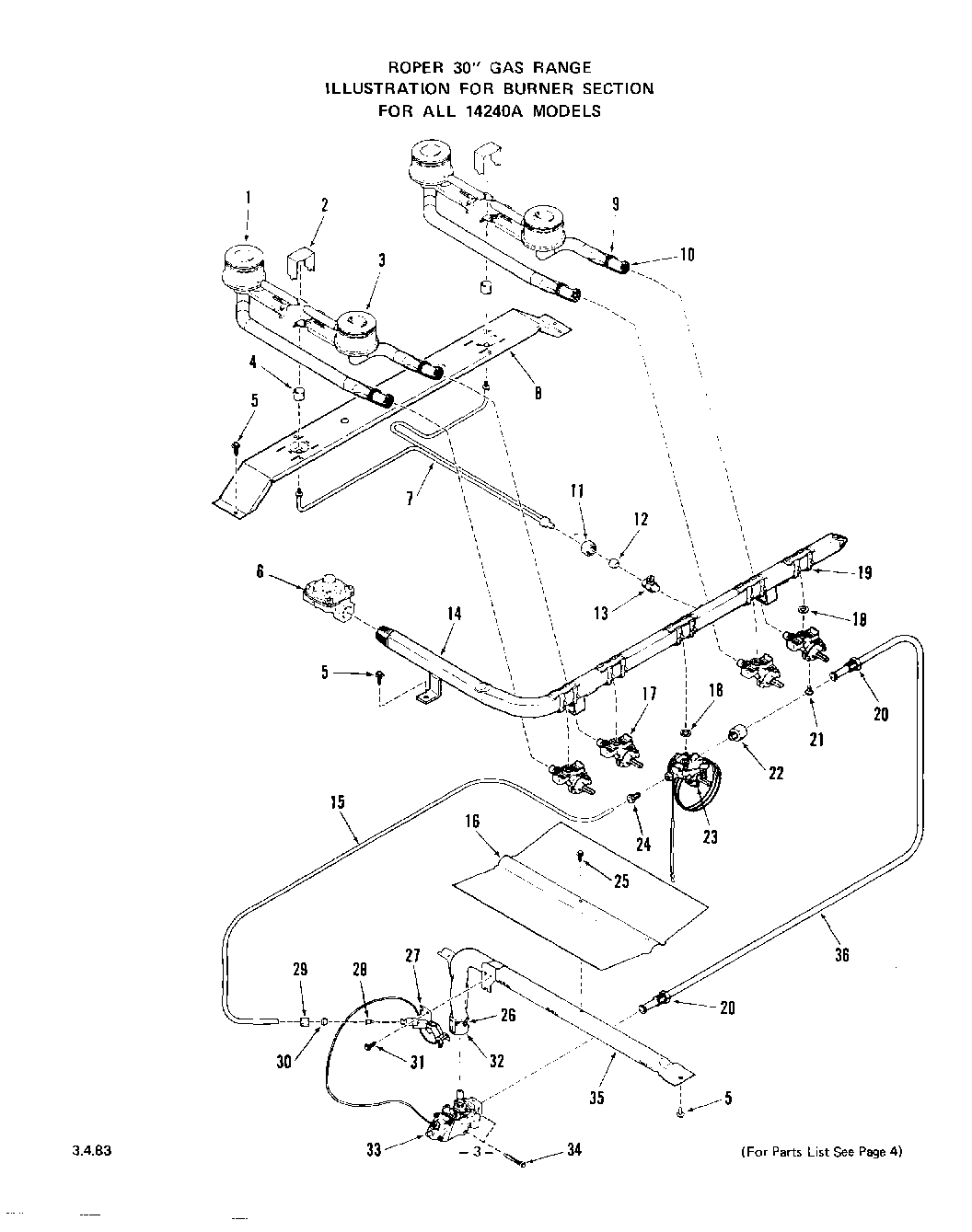

1424^0A 04 – BODY

Products

Position	Product
1	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
2	Top Pilot Shield (3 Req)
3	Front Top Burner-Lt. or Rt. (Inc`s 64 & 65)
4	Pilot Cup (3 Req)
5	WP112432 Whirlpool Nut Assembly
6	Pressure Regulator
7	Pilot Tube (Inc. Keys 8 & 9)
8	Support-Top Burner
9	Adjustment Screw-Air Shutter
10	Air Shutter
11	Compression Nut 1/4“
12	Compression Ball Sleeve 1/4“
13	Filter-Top Pilot
14	Manifold Pipe
15	Tubing 3/16“ -Oven Therm. To Oven Control Pilot
16	Baffle – Oven Burner
17	Gas Valve (4 Required-Inc`s. Key 12)
18	Gasket
19	Clip (10 Req)
20	Inverted Nut 3/8“
21	Screw 10-24×3/8“
22	Fitting-Straight 3/8“
23	Oven Thermostat
24	Loxit Nut 3/16“
25	WPL 316365
26	Adjustment Screw-Air Shutter
27	Pilot Head (Inc`s. 24)
28	Orifice Cup Only
29	Compression Nut 3/16“
30	Compression Ball Sleeve 3/16“
31	Screw 10-24×1/4“
32	Aid Shutter
33	Oven Control Valve
34	Screw 10-32×2“
35	Oven Burner (Inc`s. 21, 33 & 34)
36	Tubing 3/8“ (Shut-Off to Control Valve)
